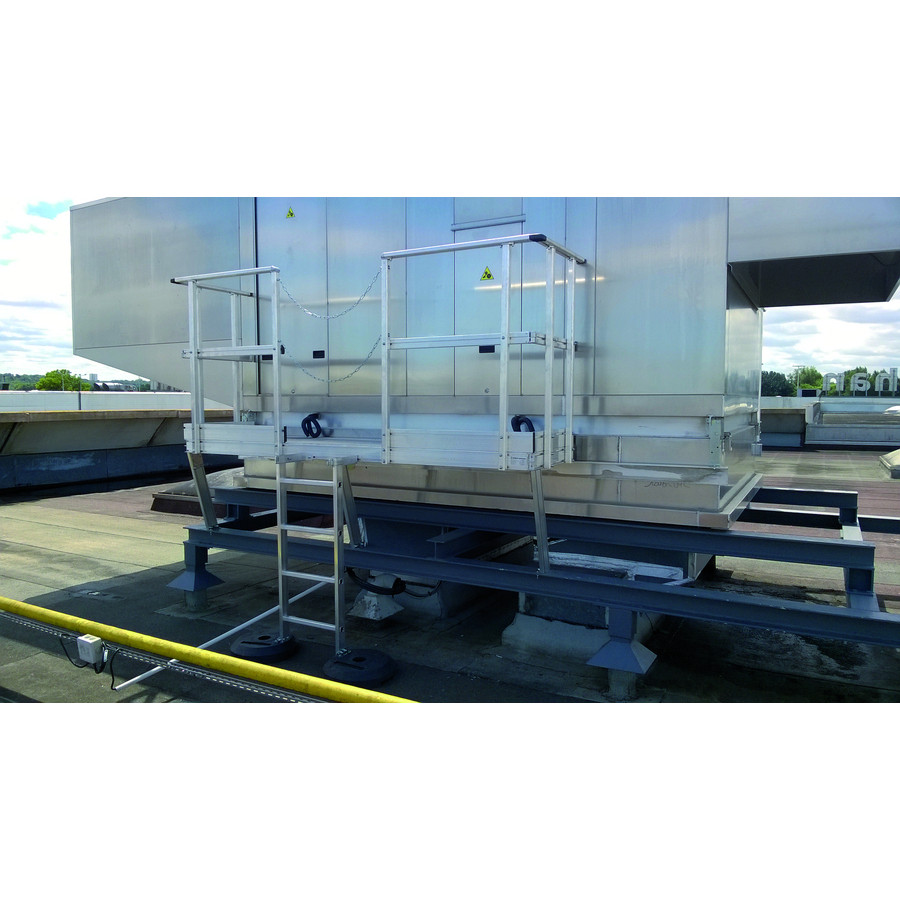

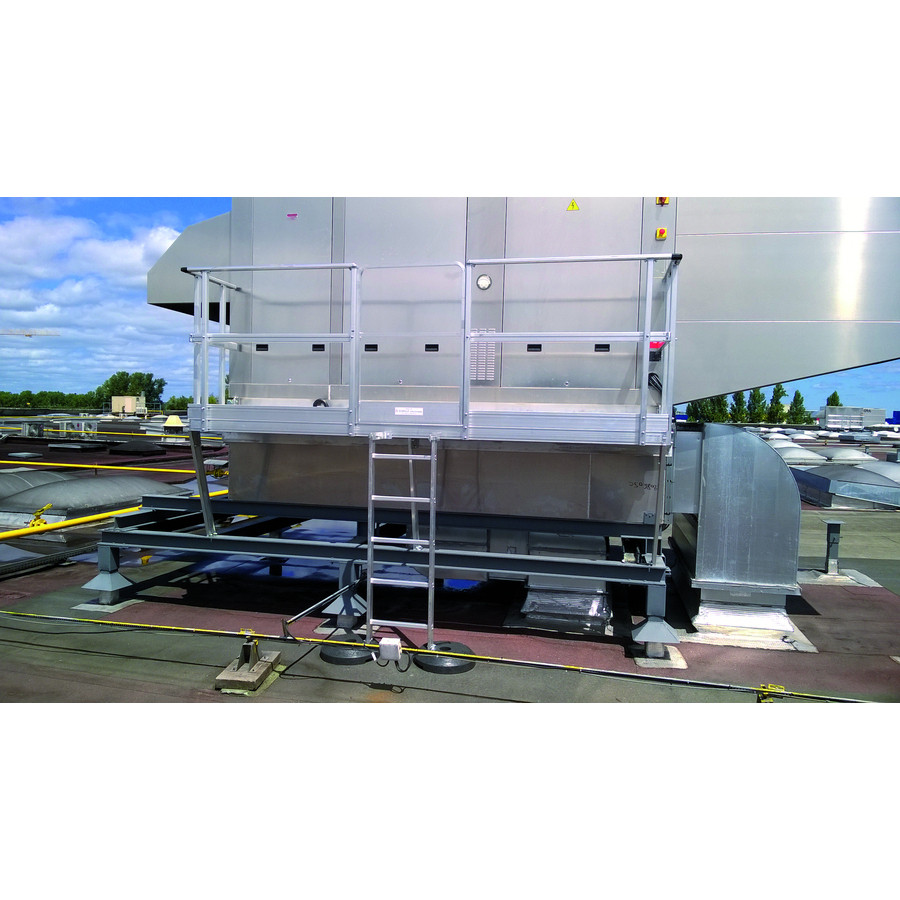

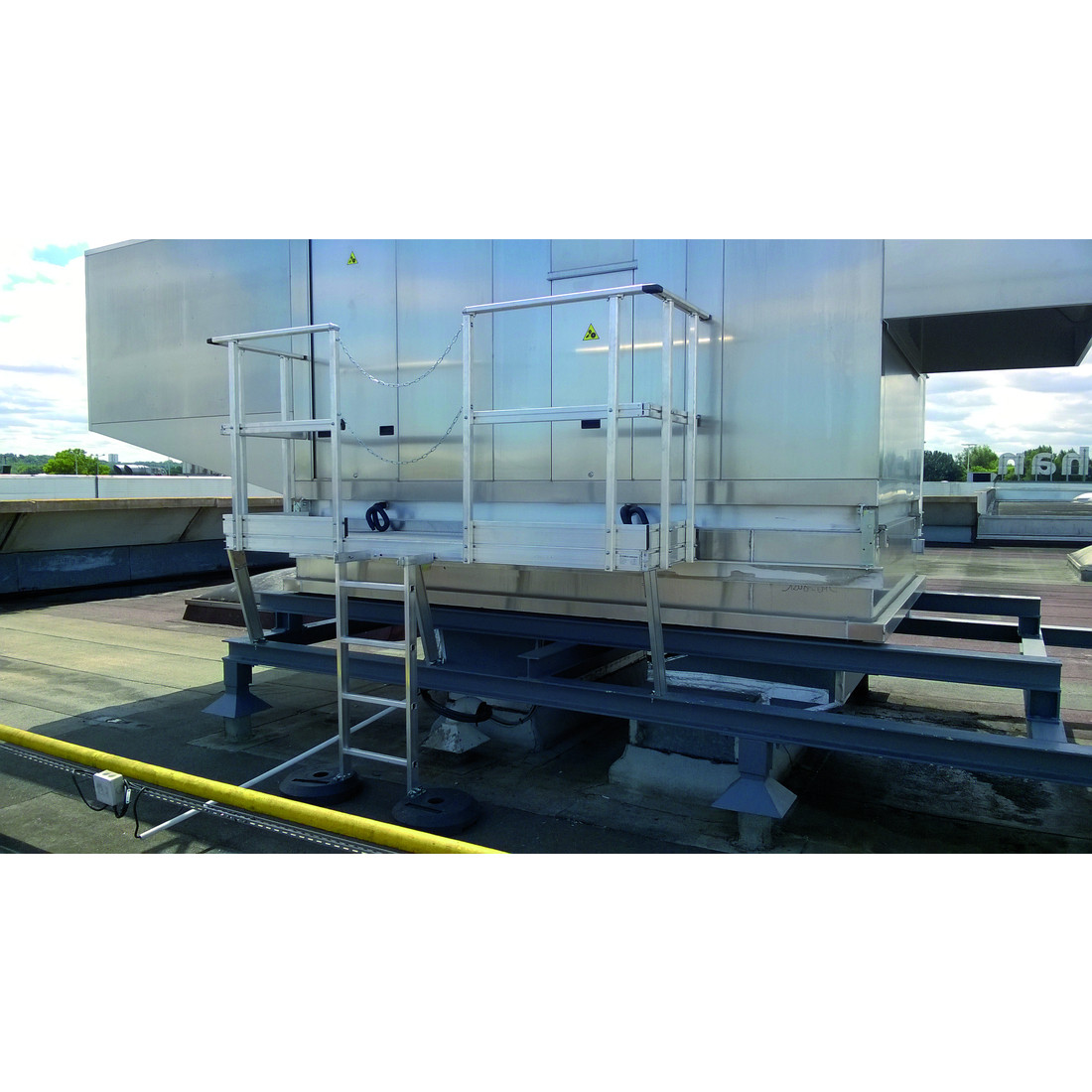

Enables 2 secure accesses to air conditioning units on the roof of a building.

Select your reference
+
-
Secure access to the air conditioning on the roof

Technical characteristics

Reference Quantity Quote
Ref. ACCESCLIM
Secure access to the air conditioning on the roof
+
-
Secure access to the air conditioning on the roof
Reference : ACCESCLIM
Quantity :
+
-

Use

Impossible to fasten on the waterproofing unit of the roof.

Several obstacles to manage : design to go around the machinery and to be integrated between the skylights of the roof, to manage the roof slope issues and the waterproofing flexibility.

Collective security of equipment.

Technical description

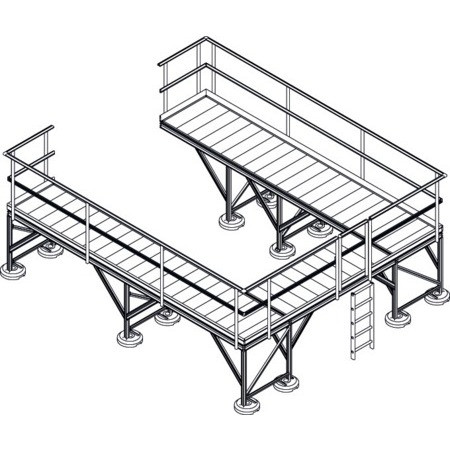

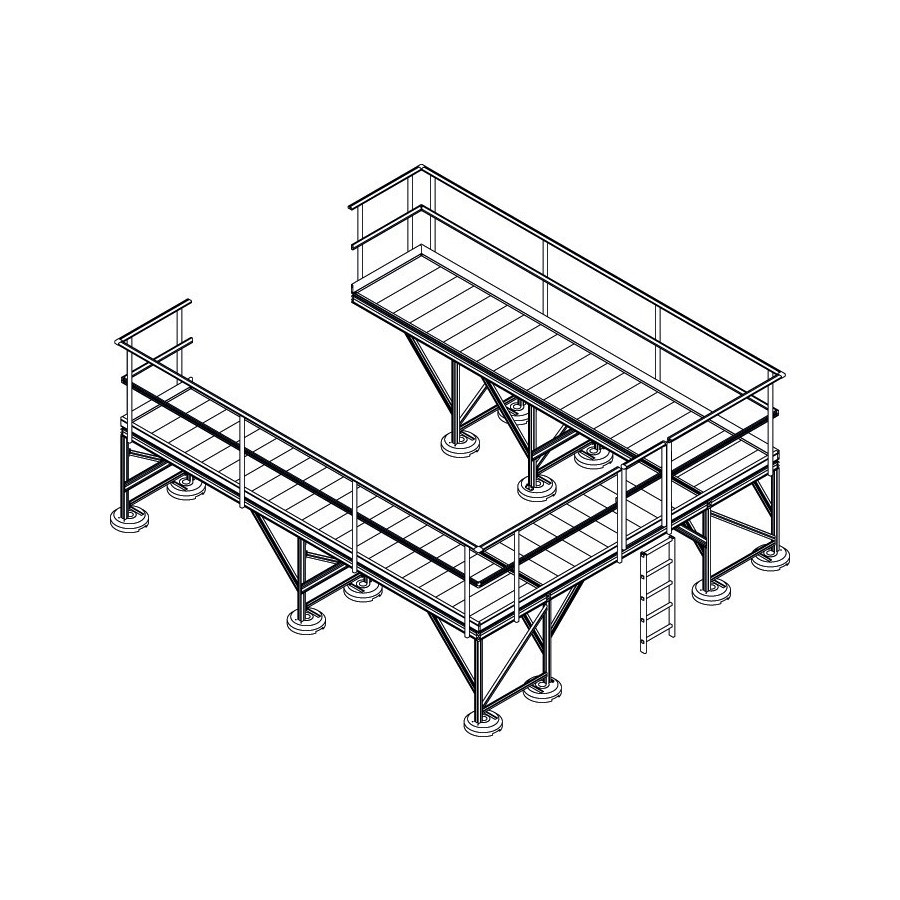

2 peripheral self-supporting platforms with ladder access


Platform height of 1280 mm (50")


Platform sizes : 600 x 3400 mm: 600 x 3400 mm (24" x 134")


Grooved aluminium planking


Enabling of cantilevers allowing the passing over the skylights of the roof


Working width of 1000 mm (39")


Fastening on a concrete resin block preserving the waterproofing


Access by vertical ladder


Fall arrest securing by guardrails and side doors
