Guiding walkways on building roofs

Technical characteristics

Reference Quantity Quote
Ref. PASSECIRCUTOIT
Guiding walkways on building roofs
+
-
Guiding walkways on building roofs
Reference : PASSECIRCUTOIT
Quantity :
+
-

Use

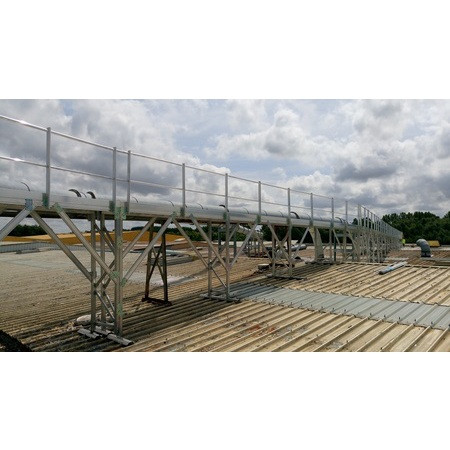

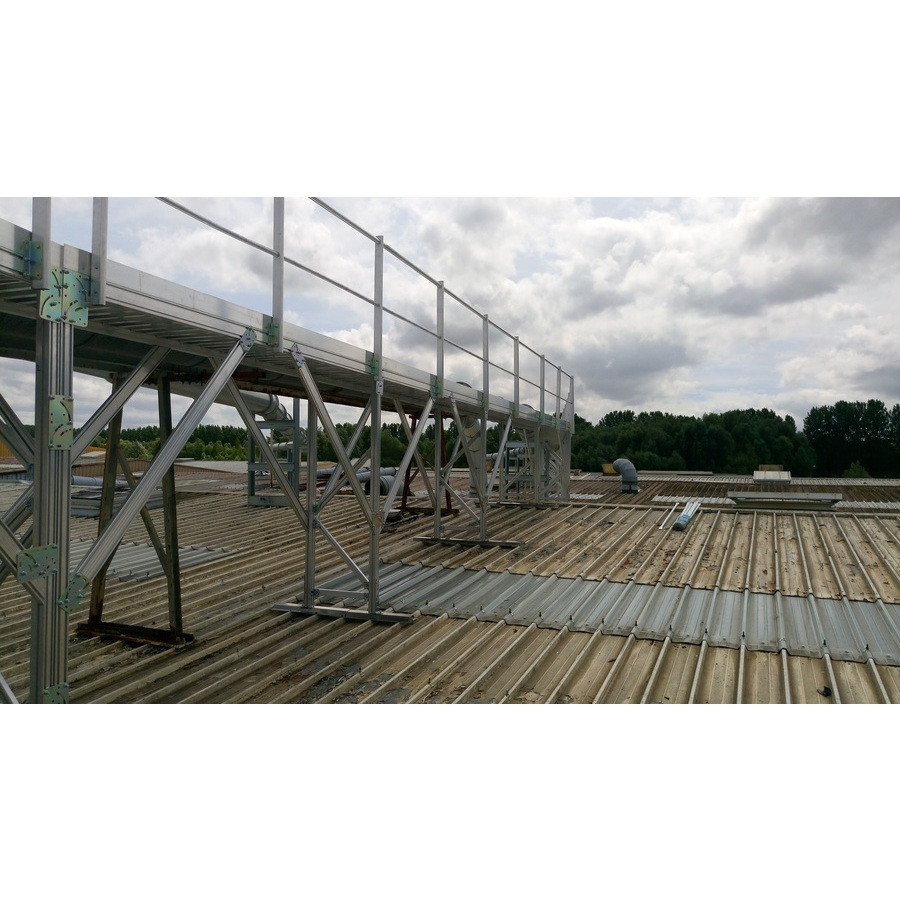

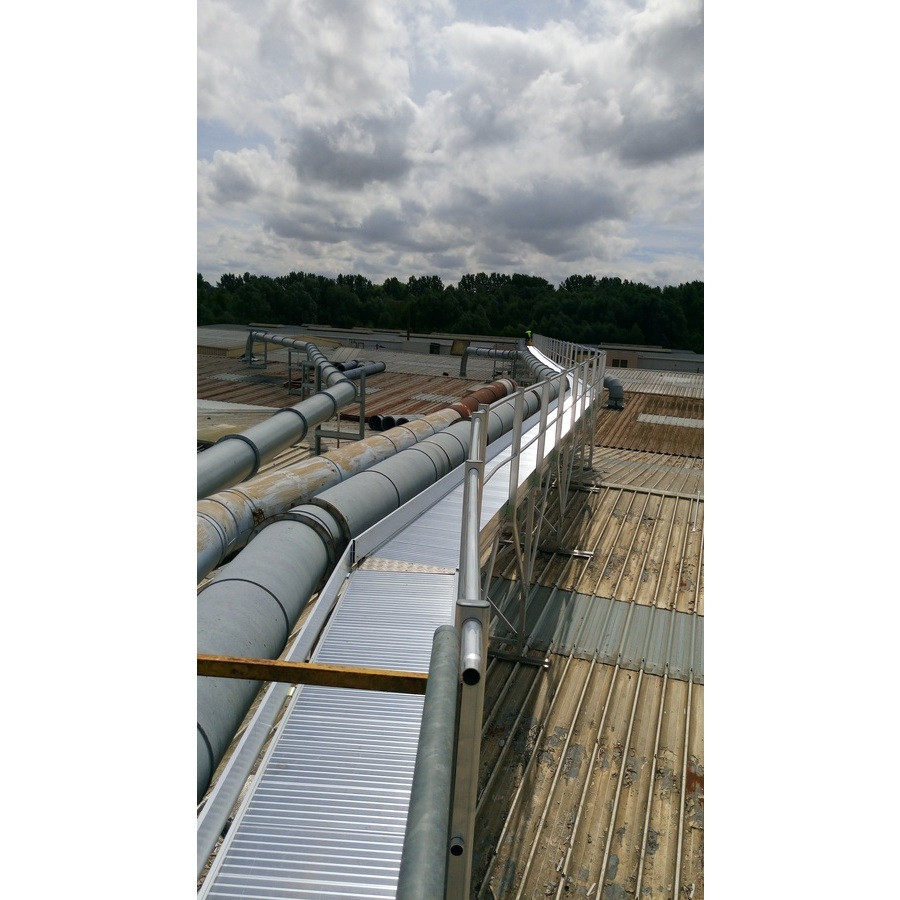

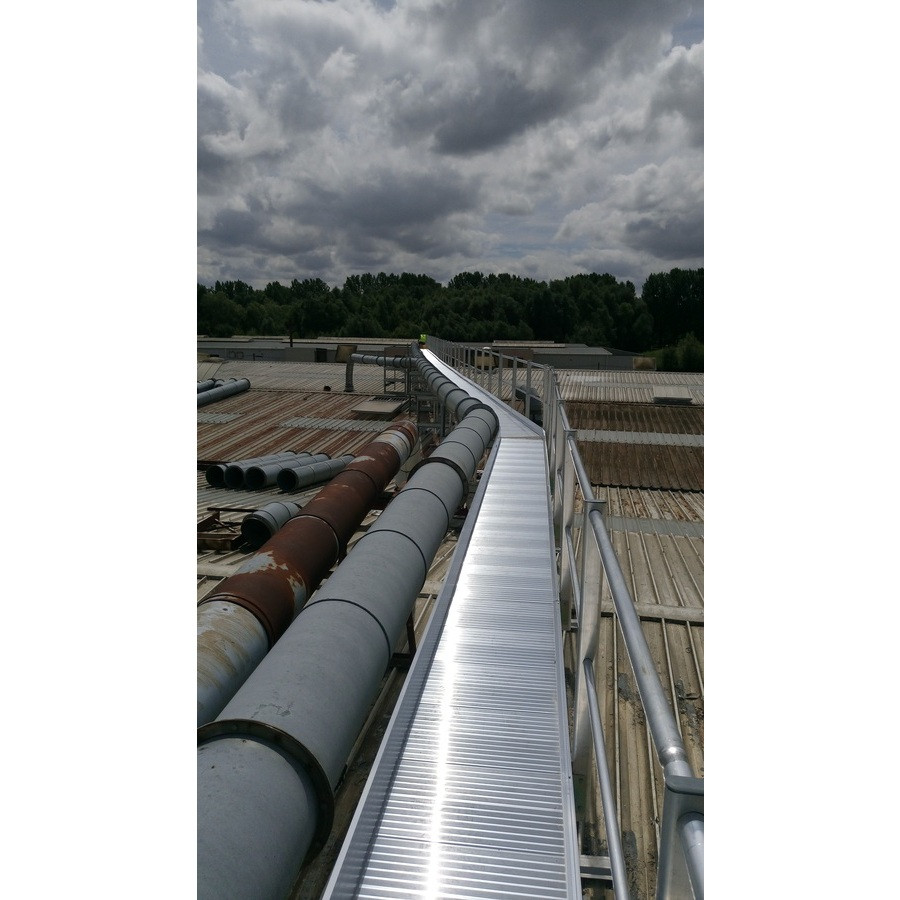

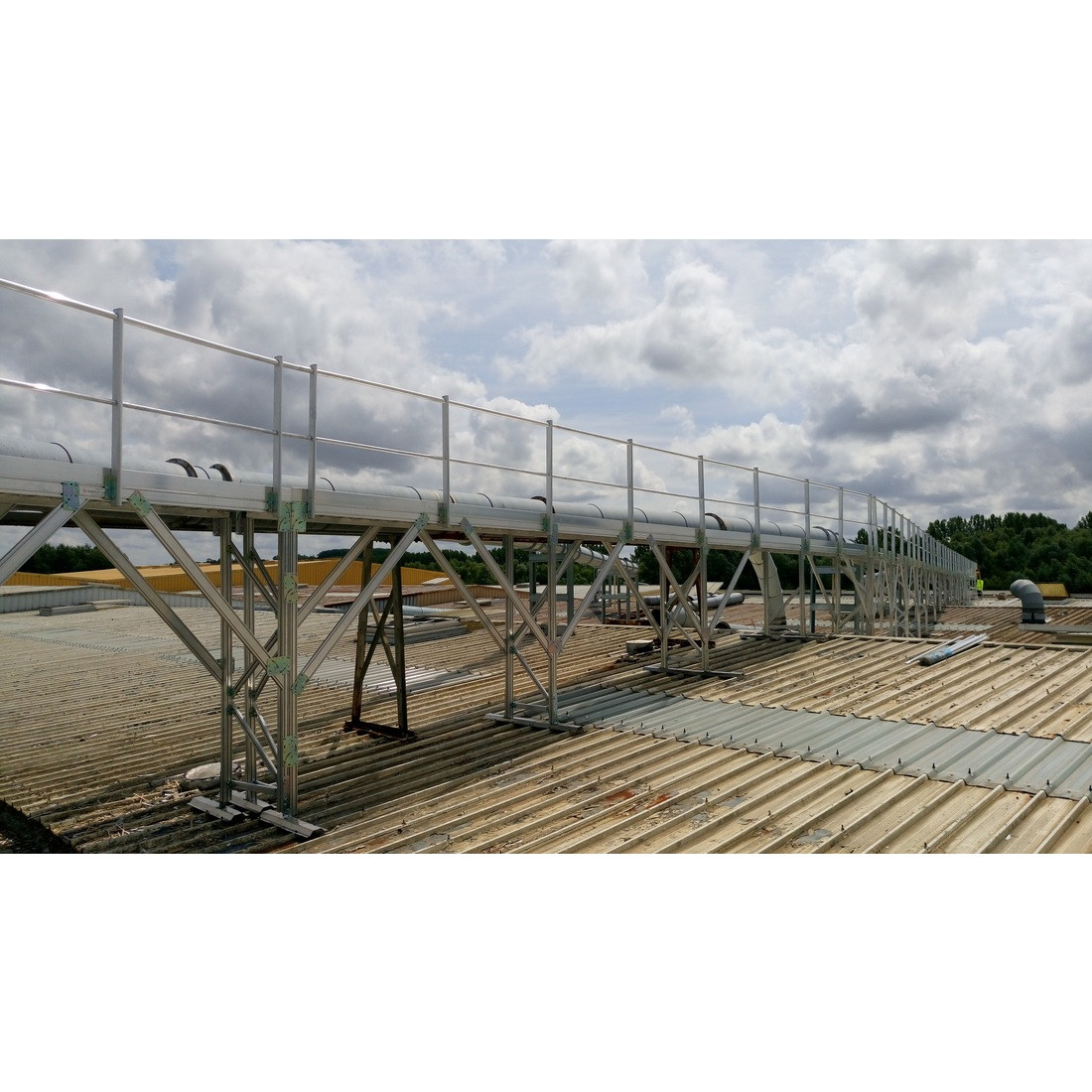

63 meters (207') long walkway installed on a steel pan coating.

The walkway access is made via a 2 meters (7') high rung ladder with flared exit and automatic return side door.

Technical description

Grooved aluminium coating


Working width : 600 mm (24’)


Junction of platforms in angle with embossed metal sheets


Fastening system on steel pan


Side guardrail
