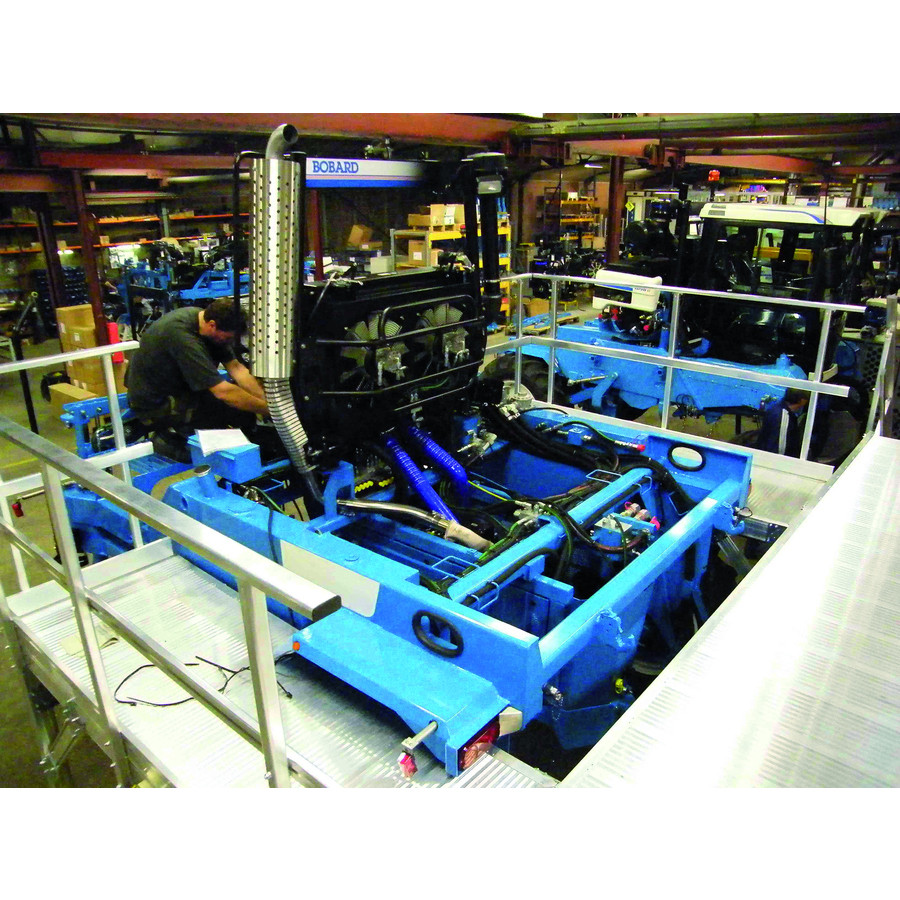

Ensuring work stations for mechanical and electrical maintenance and assembly of parts on straddling tractors
Use
Product to be used on several machines with different machine working heights and widths.
Equipment including a tooling storage area for working on the machine.
4 areas of intervention to cover around the machine.
Work station used for teams of 2 people.
Equipment which is mobile and light because it can be used in various places of the workshop.
Work station ensuring the work of operators in collective safety.
Technical description

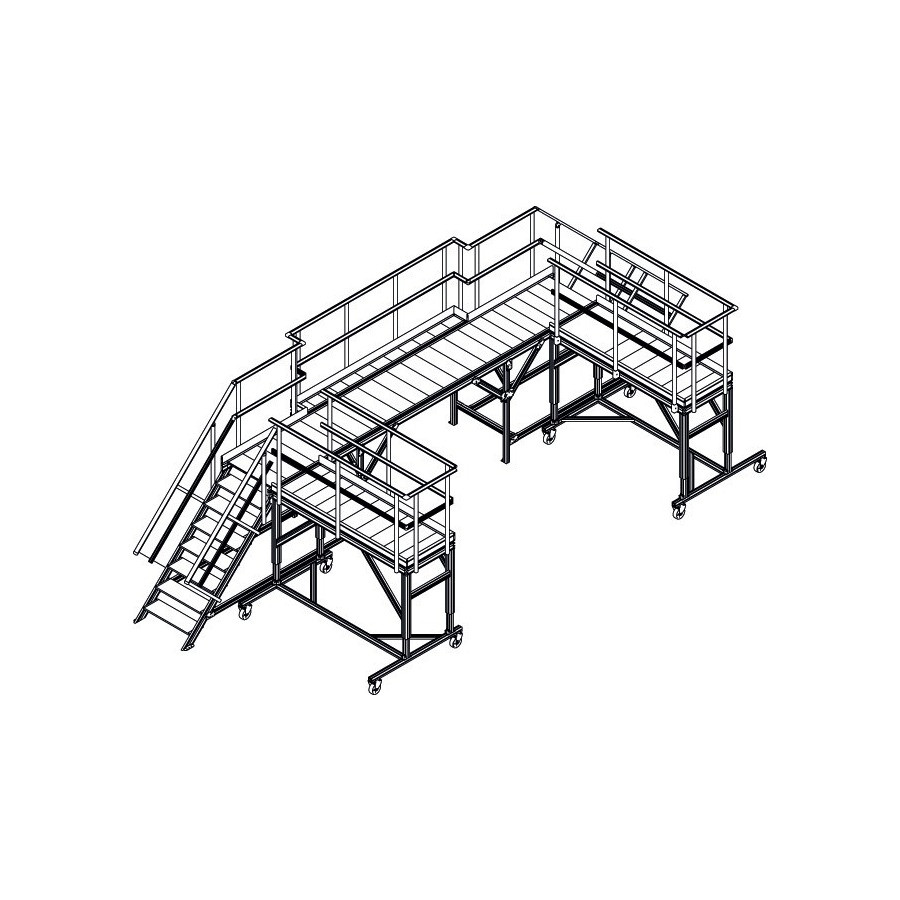

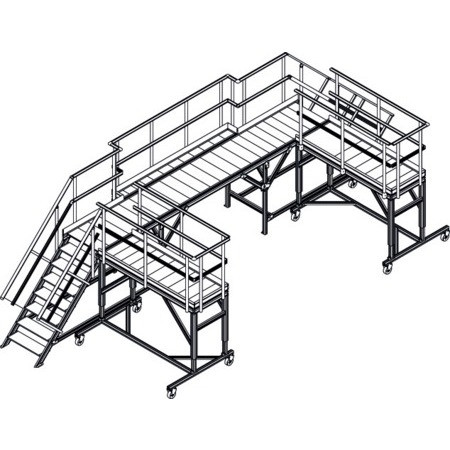

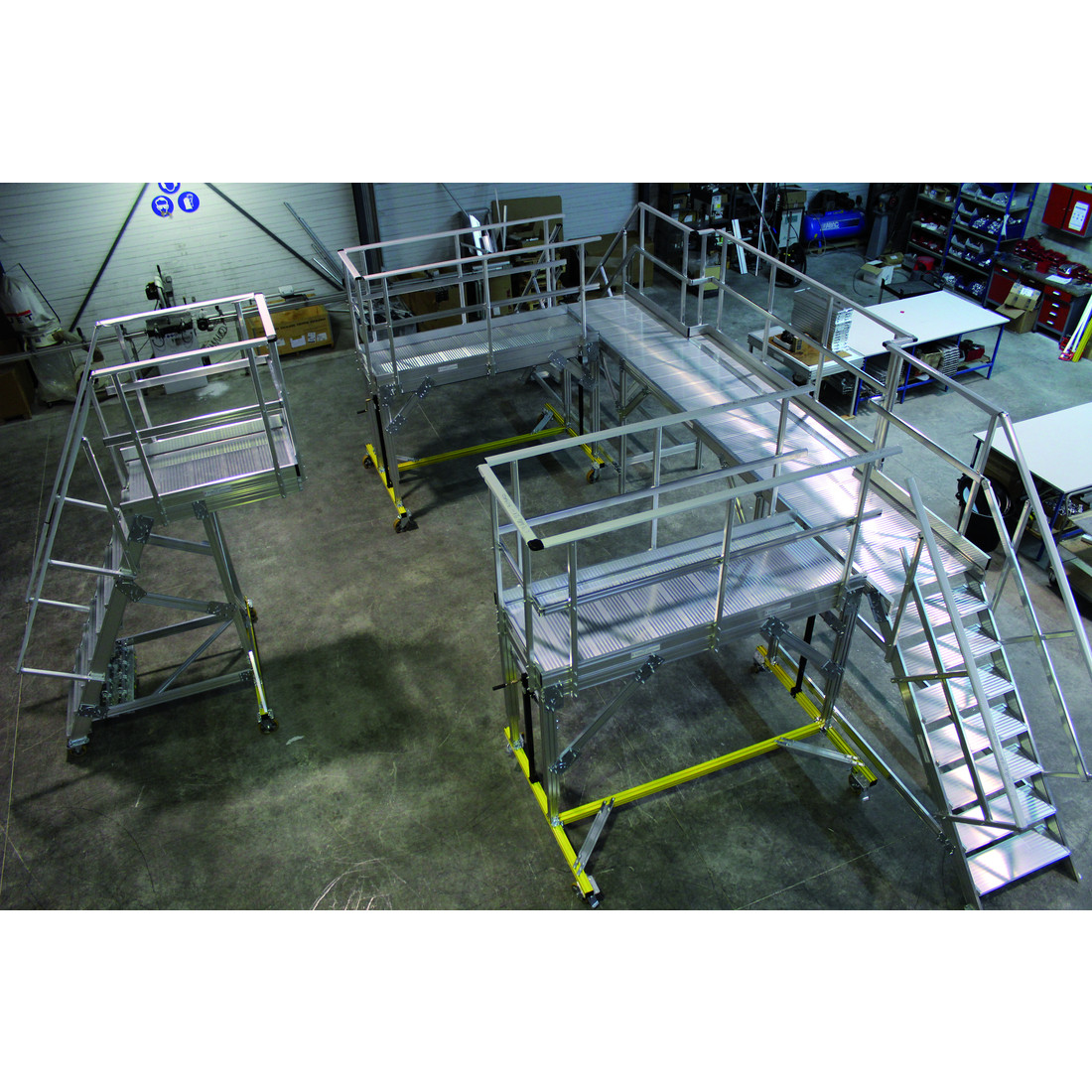

Equipment consisting of 2 manually adjustable walkways, an access walkway and a rolling offset platform
Ensuring a work station by encircling the 3 sides of the machine with 3 rolling walkways that can be interconnected
Standard walkway width of 800 mm (31")
Access by 2 staircases with 8 steps, with a 45° tilt
Adjustment by a manual jack of the platform height from 1400 mm to 1900 mm (55" to 75") of the 2 side walkways
Possible spacing between the walkways, from 2200 mm to 4000 mm (87" to 157")
Rear walkway with 200 mm (8") deflection that can be arranged to receive tools and hardware
Removable guardrails on the 2 side platforms to work closer to the machine

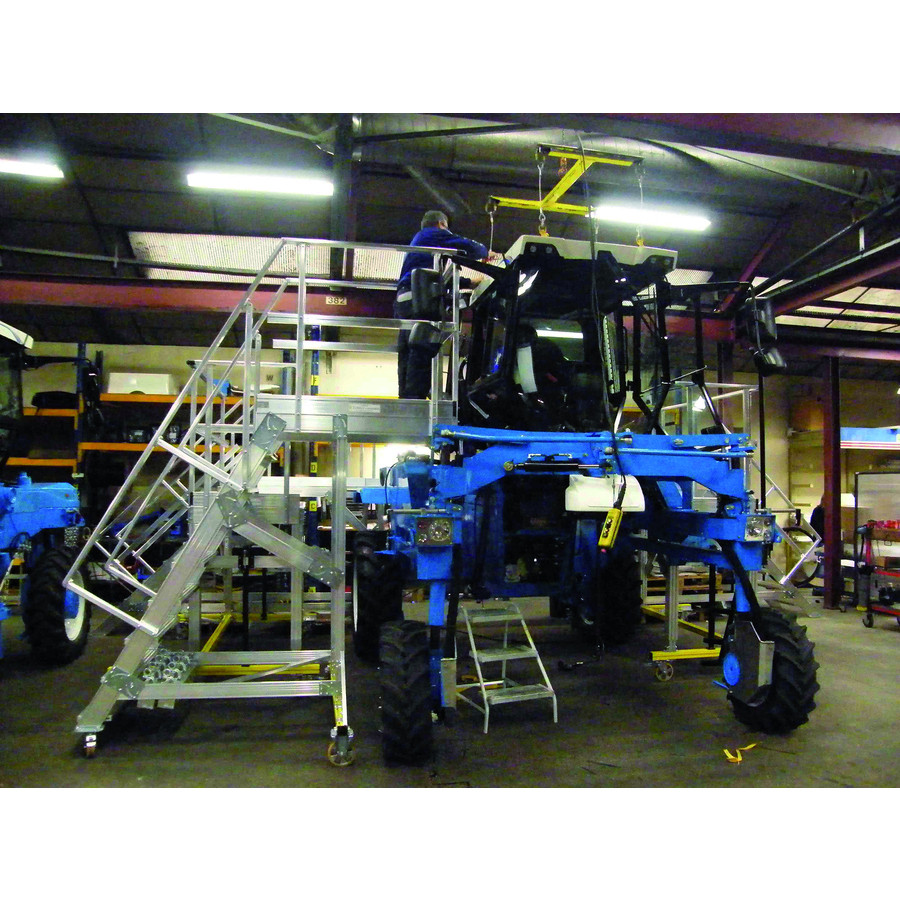

Access on the upper part of the machines with an offset counterweight rolling platform, platform height of 2100 mm (83")
