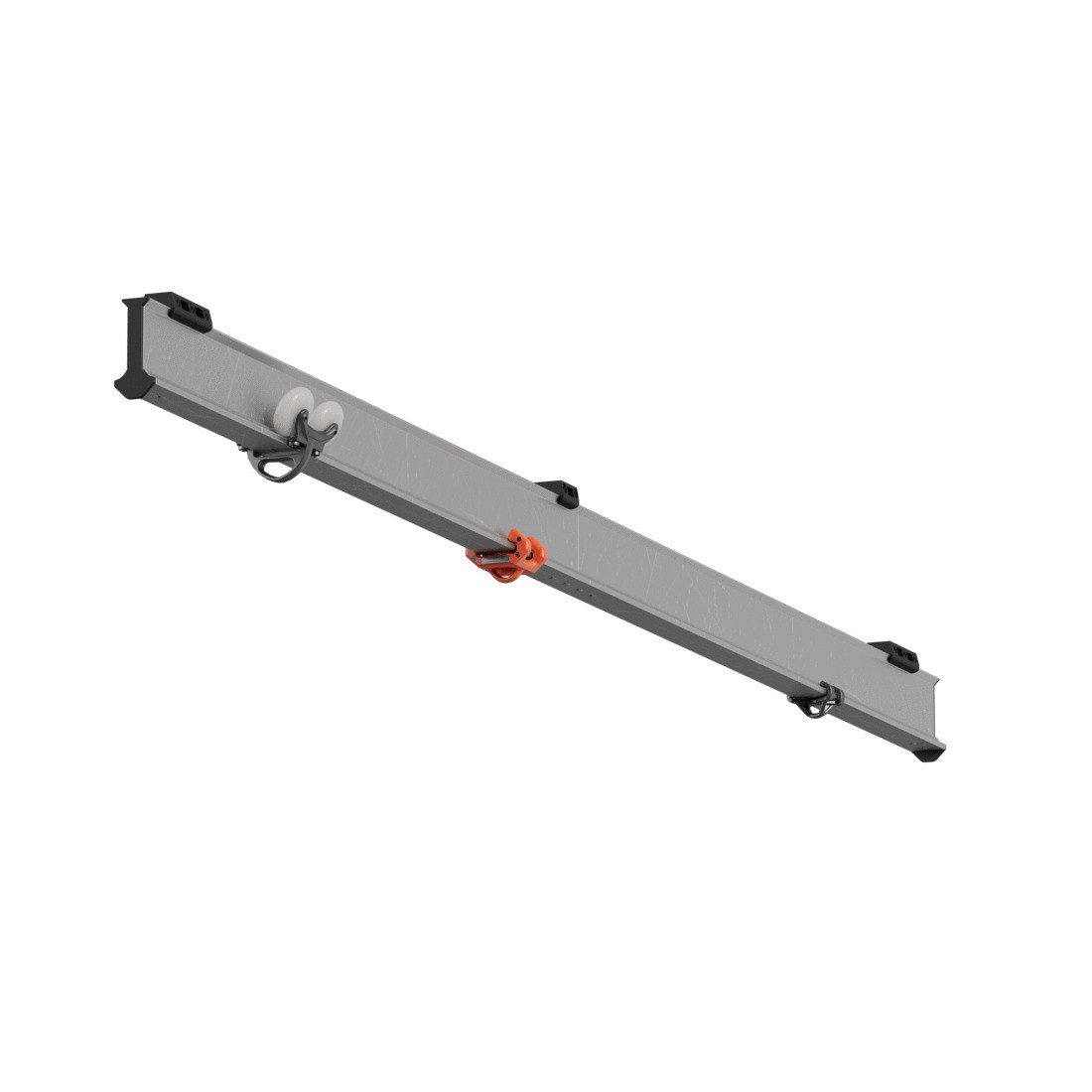

CONEKT rail lifeline for steel structure
Warranty 5 years
The CONEKT rail lifeline lets you work safely at height. Thanks to its controlled deflection, it can easily be installed in areas with limited clearance. The rigidity of the rail also provides optimal comfort when moving along the system.
Advantages and strengths
Simple, quick-to-install range with a clean design, with no minimum distance required between fixing points and splice joints.
Technical characteristics

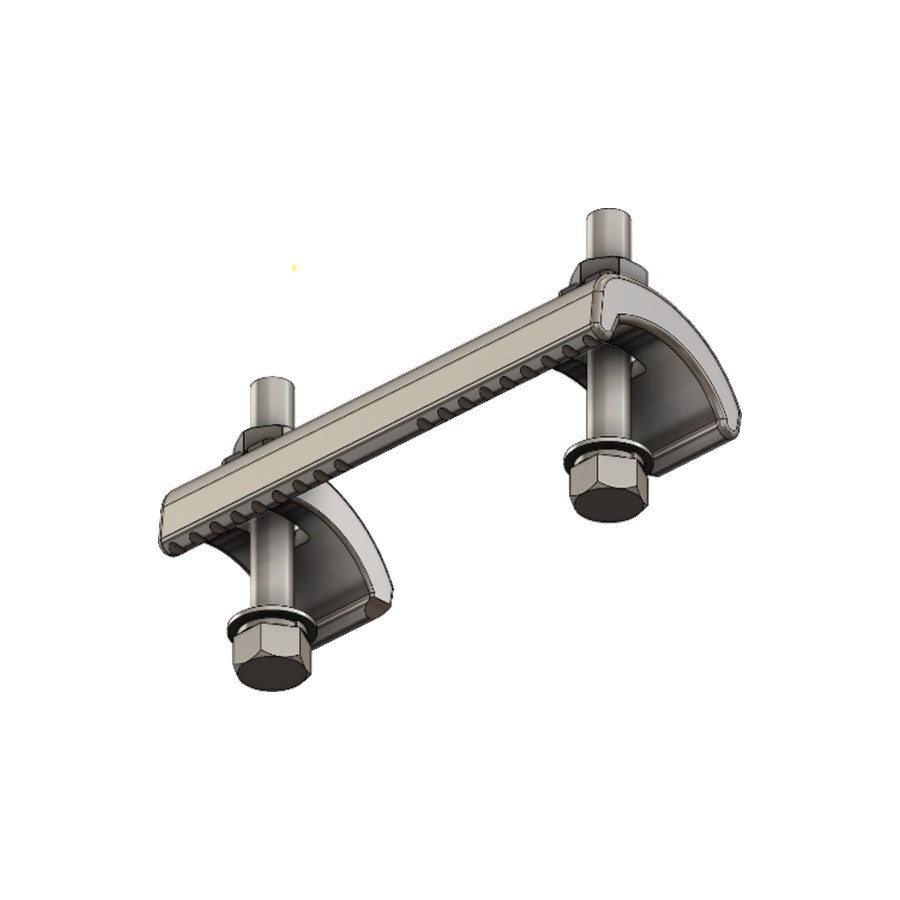

| CONEKT double clamp | |
|---|---|
| Reference : | CRA |
| Quantity : |
|

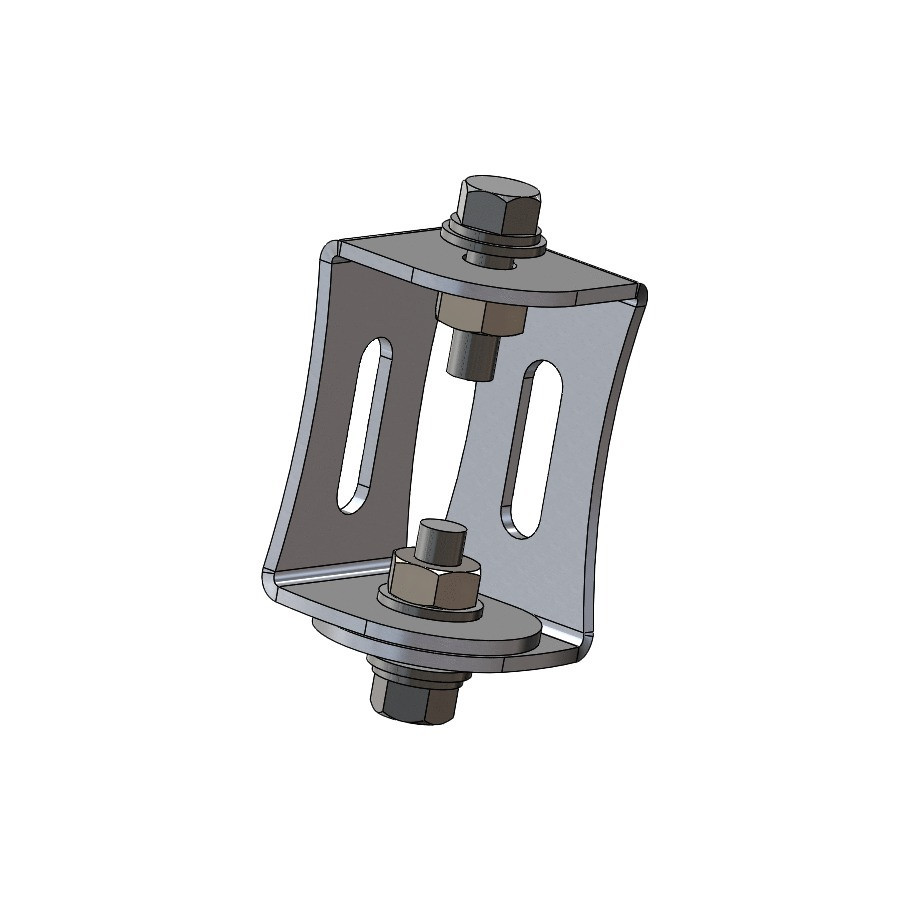

| CONEKT clamping bracket for double clamp | |
|---|---|
| Reference : | SC |
| Quantity : |
|

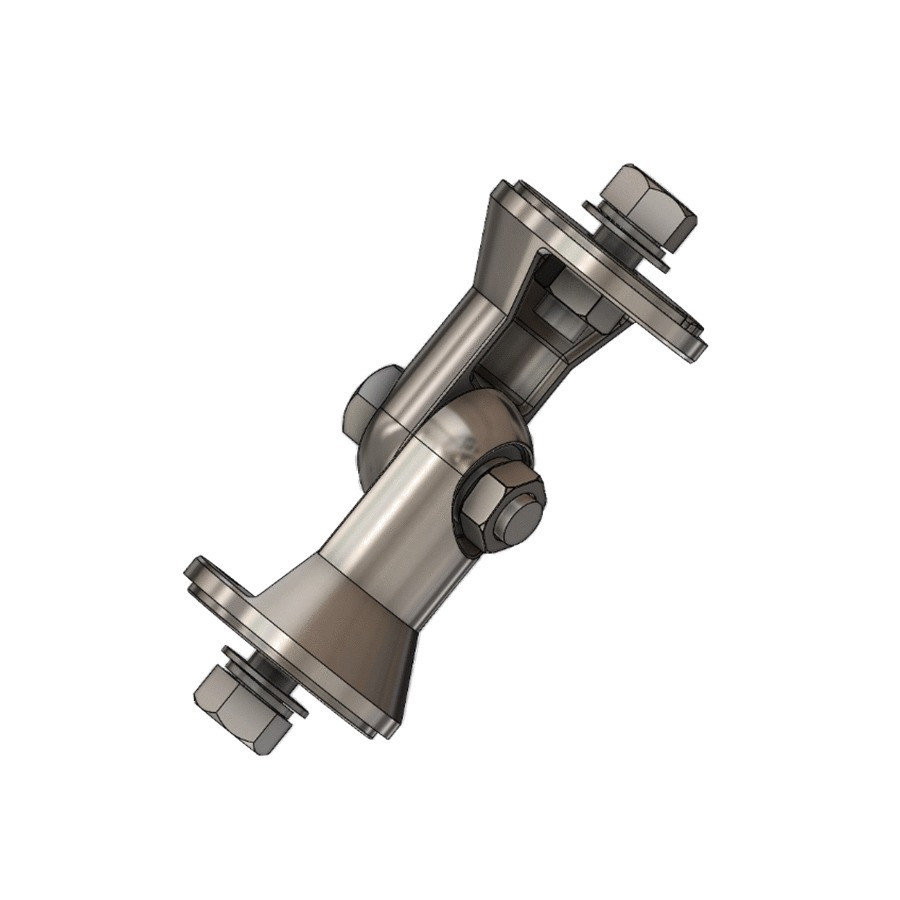

| CONEKT articulated joint | |
|---|---|
| Reference : | AR |
| Quantity : |
|
| CONEKT H100 mm diabolo standoff | |
|---|---|
| Reference : | AD |
| Quantity : |
|

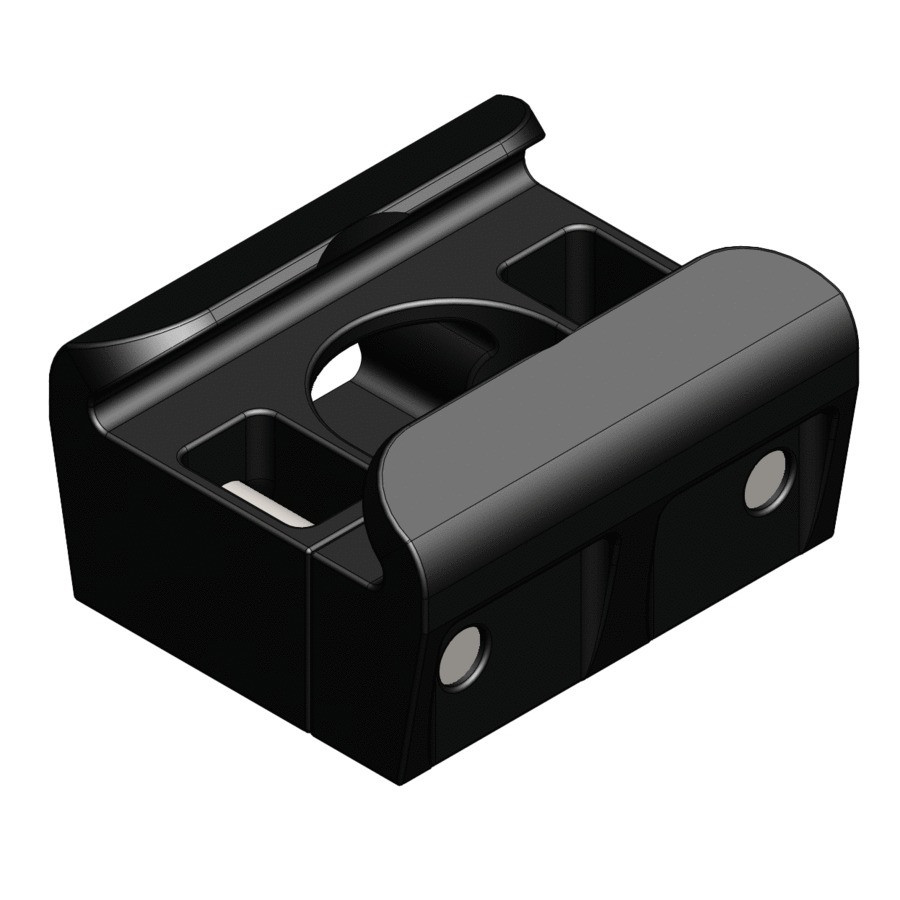

| CONEKT short rail fixing | |
|---|---|
| Reference : | R25 |
| Quantity : |
|

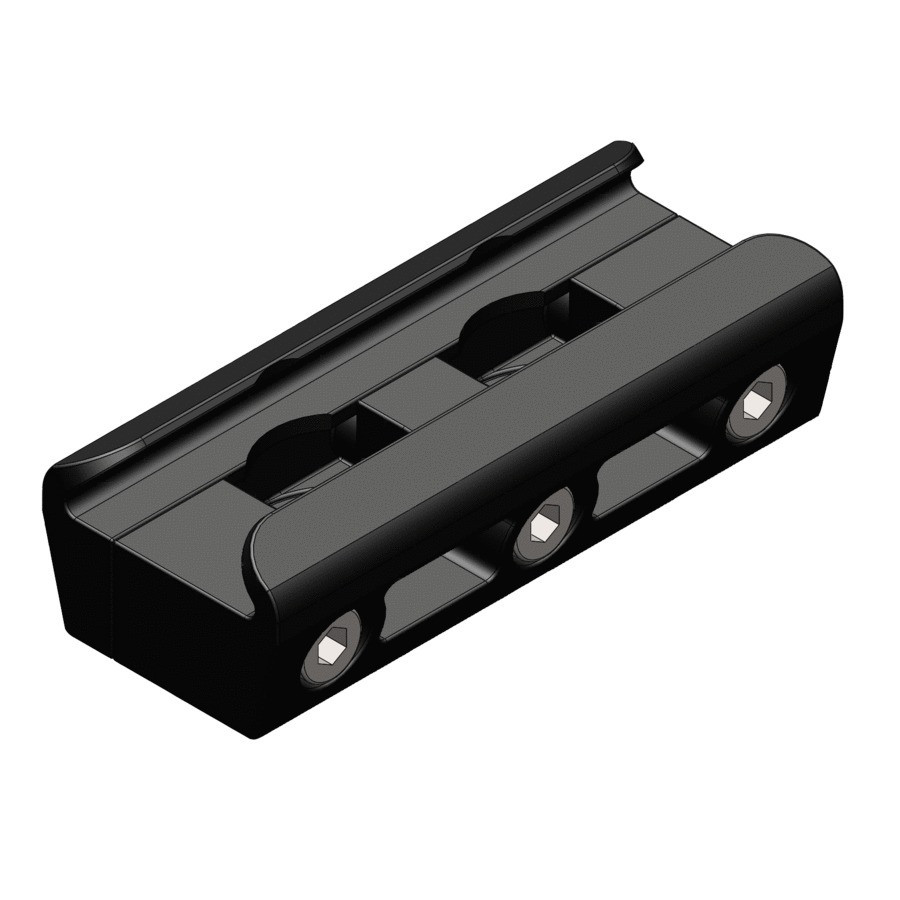

| CONEKT wide rail fixing | |
|---|---|
| Reference : | R25XL |
| Quantity : |
|

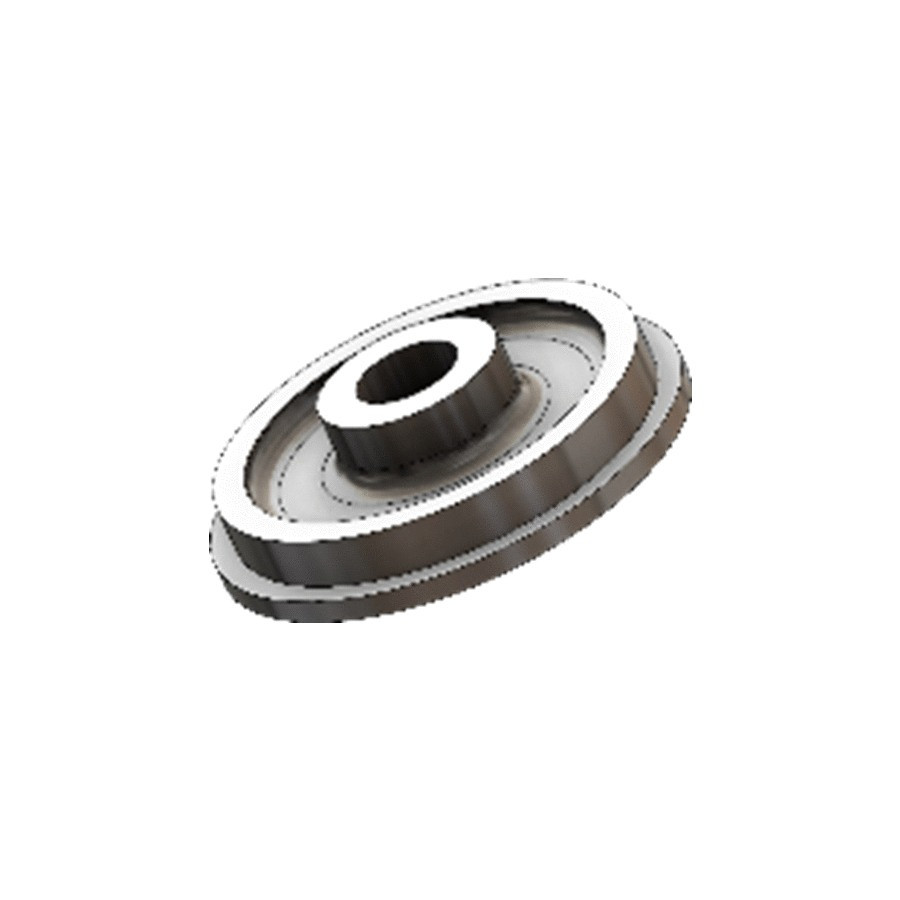

| CONEKT end cap for extension tube | |
|---|---|
| Reference : | SR2 |
| Quantity : |
|

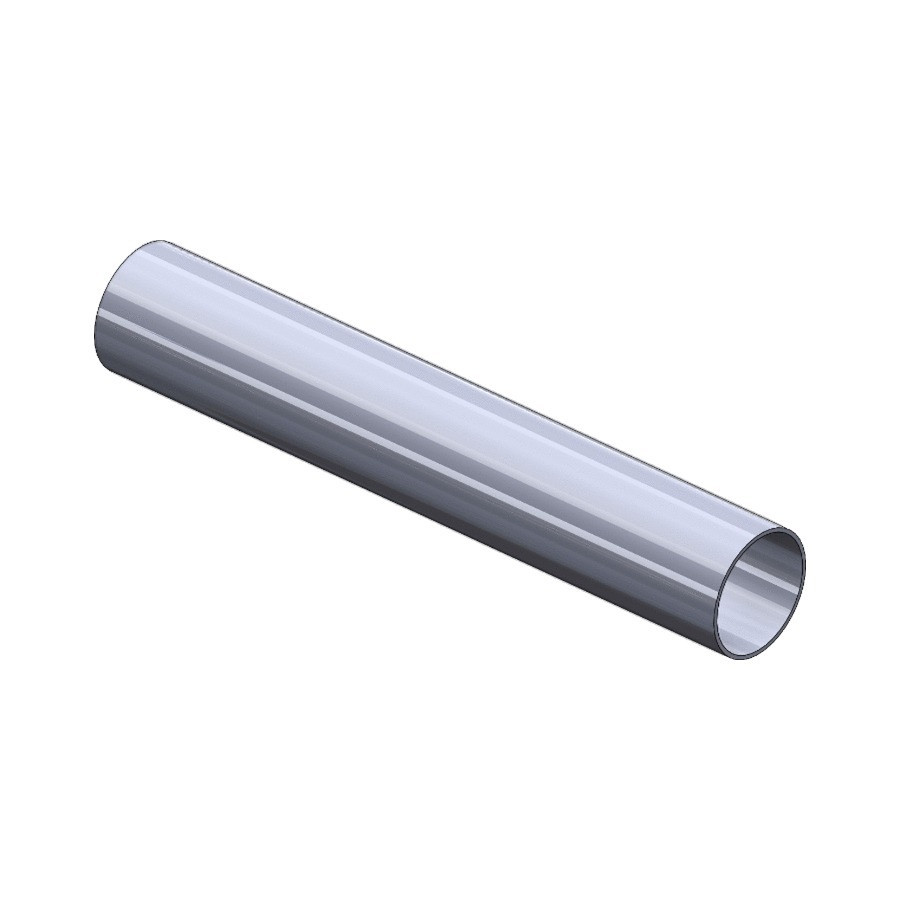

| Custom-made Ø60 mm extension tube CONEKT | |
|---|---|
| Reference : | TCONEKT |
| Quantity : |
|
Use
Installing a CONEKT rail lifeline on a steel structure is done using:
the CRA double clamp and the SC clamping bracket
the R25 short rail fixing to attach the rail directly to the clamping bracket, or to a standoff (AR articulated joint or AD "diabolo") if additional height is required
It is possible to combine several standoffs and even add a custom-made tube if greater clearance is needed.
In specific cases, depending on the ceiling/support, the rail can be fixed directly using the R25XL wide rail fixing.
Technical requirements:
Ceiling use with standard or XL rail
Spacing between fixings with standard rail: max. 5 m; if suspended, fixings every 2.5 m
Spacing between fixings with XL rail: 6 m; if suspended, 5 m
Maximum 4 users simultaneously / 2 users if suspended
Periodic inspection at least once every 12 months
Technical description
Rigid lifeline in anodized aluminium.
CONEKT rails and lifeline components have no sharp edges that could damage lanyards or ropes.
-
![]()
