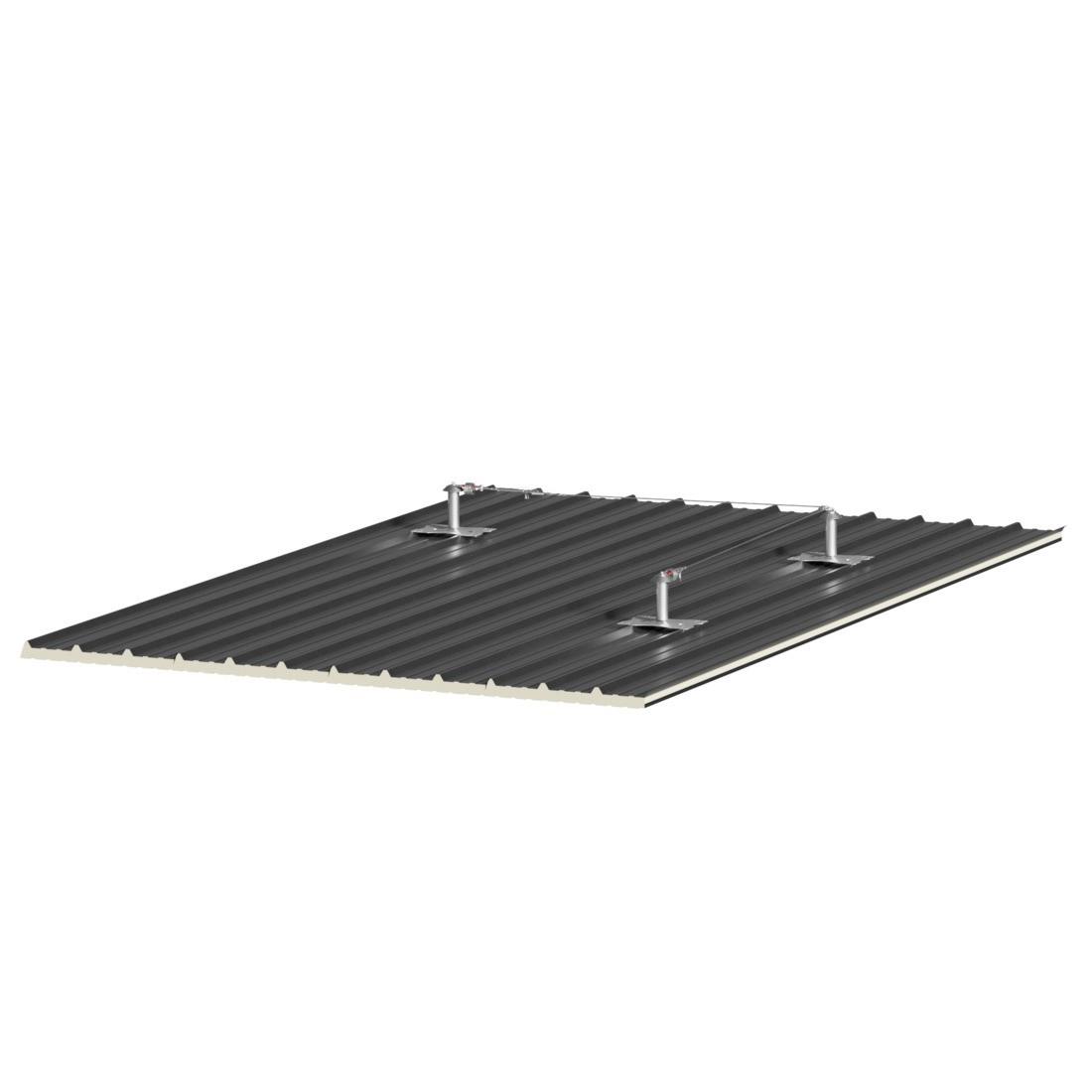

Manual Cable Lifeline on Sandwich Panel CONEKT
Manual Cable Lifeline on Sandwich Panel CONEKT
Warranty 5 years
Standard: EN795:2012/CEN/TS 16415:2013
The CONEKT automatic cable lifeline allows you to work safely at height. Its components are designed to make your movements easy and secure.
Select your reference
Manual Cable Lifeline on Sandwich Panel CONEKT
Advantages and strengths
Time-saving, quick and easy installation, sleek design
Technical characteristics
| Plate for 2 CONEKT tilting posts | |
|---|---|
| Reference : | PB2 |
| Quantity : |
|
| CONEKT Tilting Post H250 mm | |
|---|---|
| Reference : | PB250 |
| Quantity : |
|

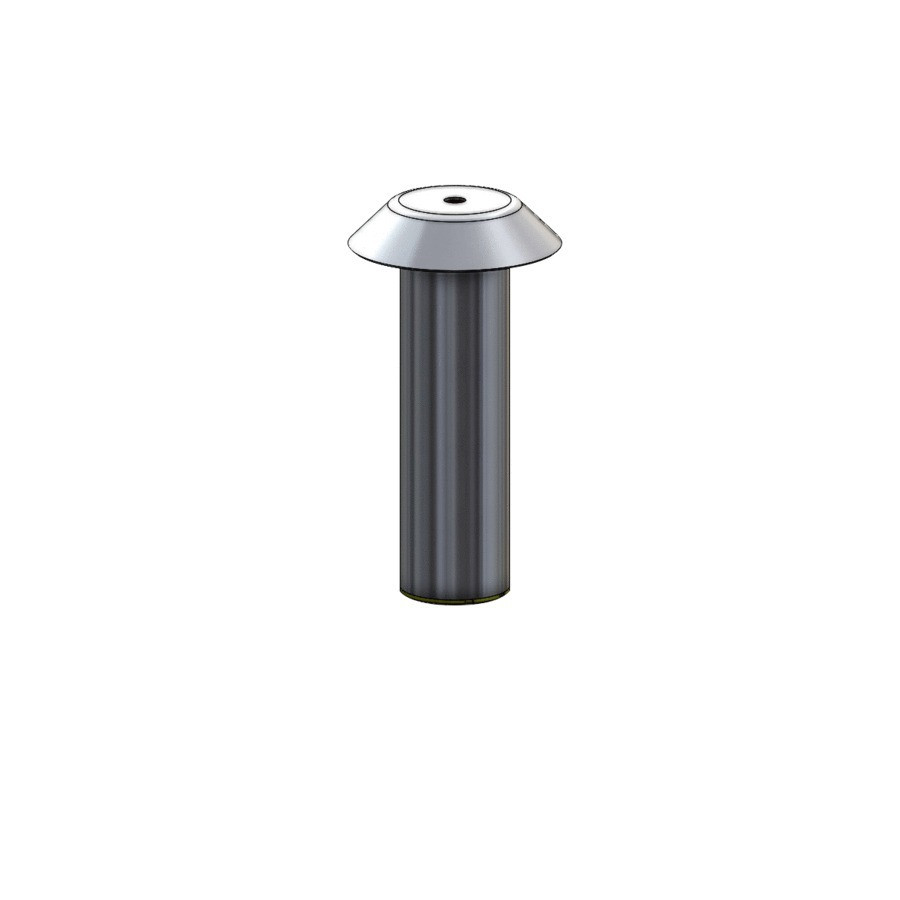

| CONEKT Diabolo Riser H100 mm | |
|---|---|
| Reference : | AD |
| Quantity : |
|

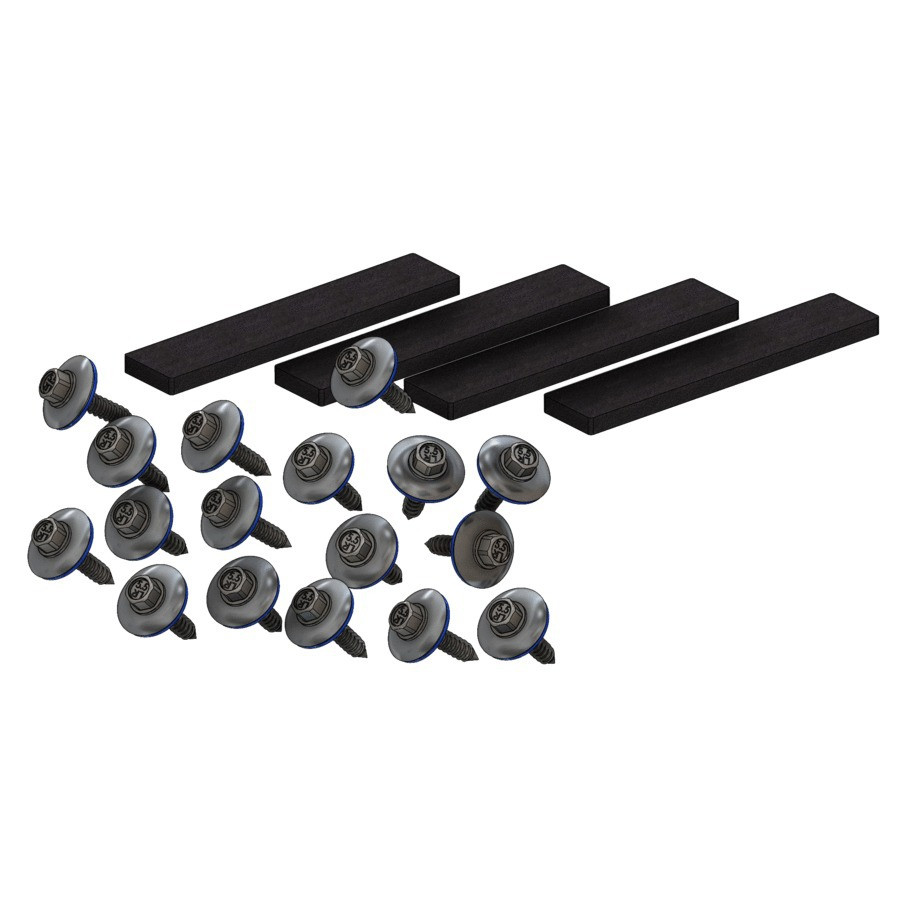

| Conekt Set of 16 self-drilling screws + EPDM strip | |
|---|---|
| Reference : | PBa |
| Quantity : |
|

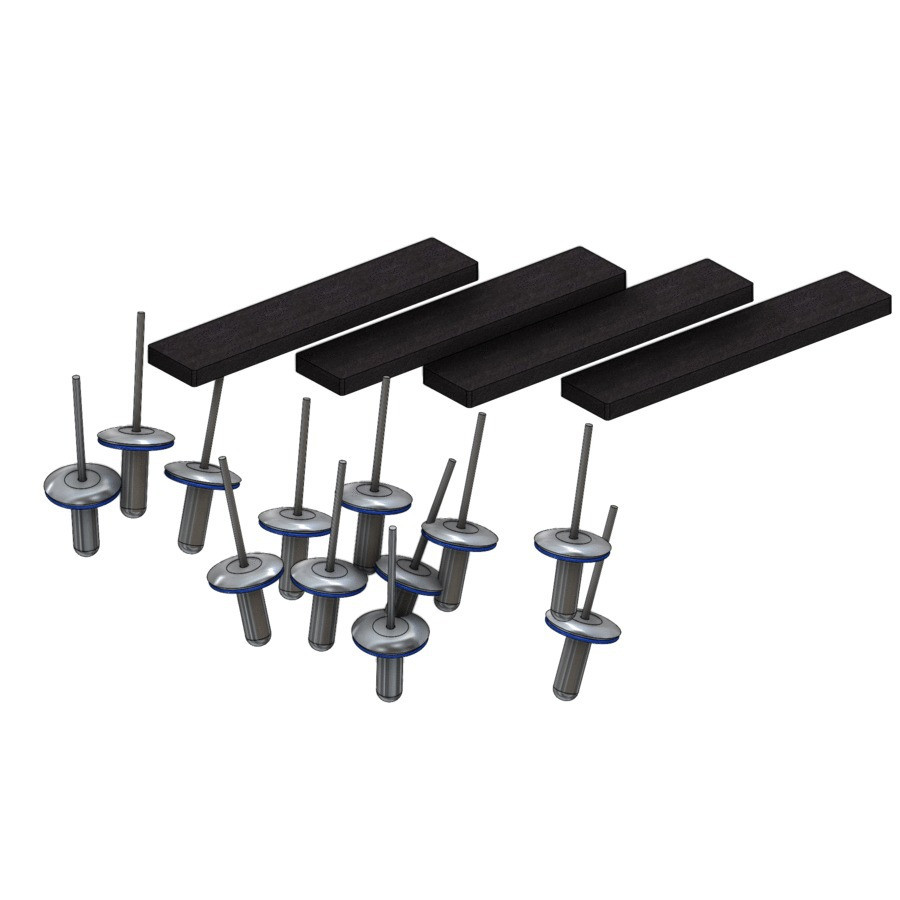

| Conekt Set of 12 rivets + EPDM strip | |
|---|---|
| Reference : | PBr |
| Quantity : |
|

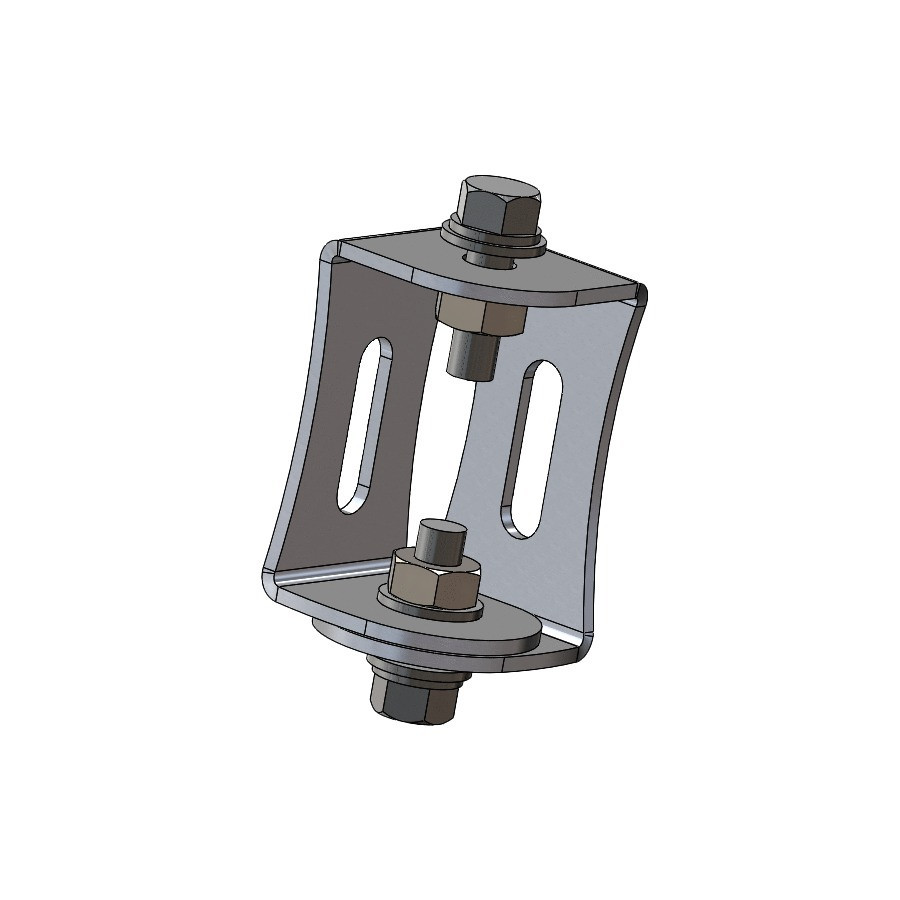

| CONEKT MINI OMEGA Stainless steel plate for steel decking | |
|---|---|
| Reference : | A0014994 |
| Quantity : |
|
Use
The installation of a CONEKT cable lifeline on a sandwich panel is done using the PB2 plate, on which a riser must be added (AD diabolo or PB250 tilting post).
Technical specifications to be observed:
Thickness ≥ 0.5 mm
Spacing between fixings: 10 - 12 m max
Maximum of 4 users simultaneously
Periodic inspection at least once every 12 months
-
![]()
