Manual Cable Lifeline on Dry Deck CONEKT
Manual Cable Lifeline on Dry Deck CONEKT
Warranty 5 years
Standard: EN795:2012/CEN/TS 16415:2013
The CONEKT manual cable lifeline allows you to work safely at height. Its components are designed to make your movements simple and secure.
Select your reference
Manual Cable Lifeline on Dry Deck CONEKT
Advantages and strengths
Time-saving, quick and easy installation, sleek design
Technical characteristics

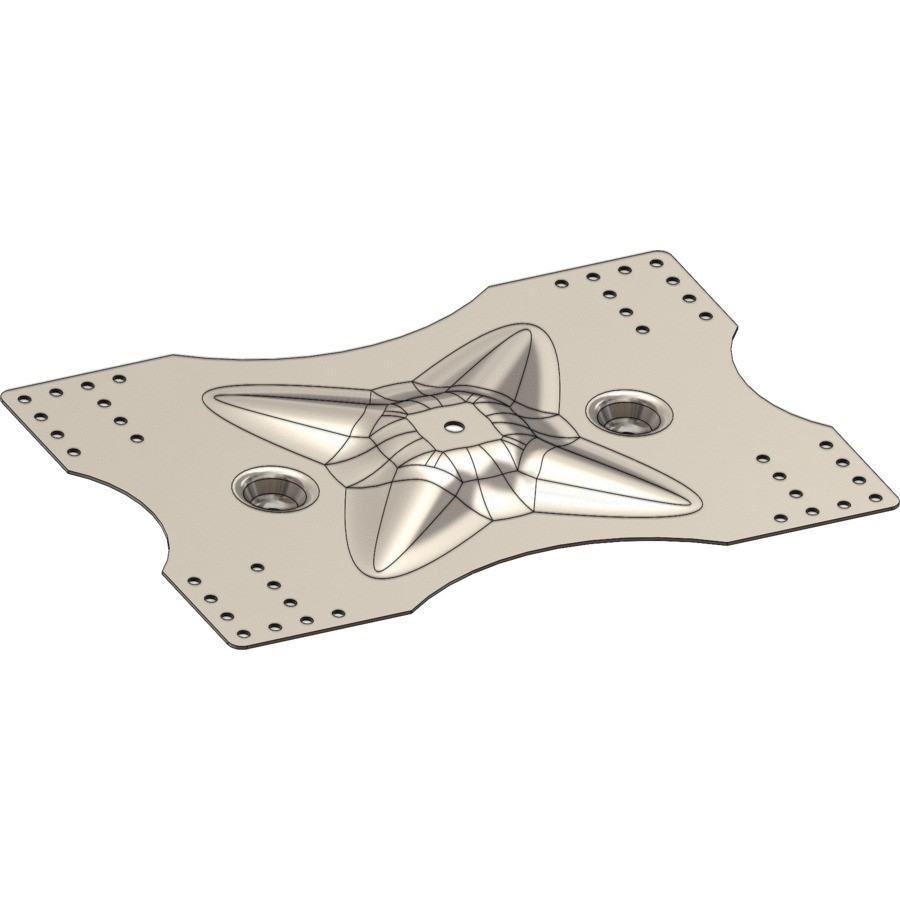

| Plate for 2 CONEKT tilting posts | |
|---|---|
| Reference : | PB2 |
| Quantity : |
|

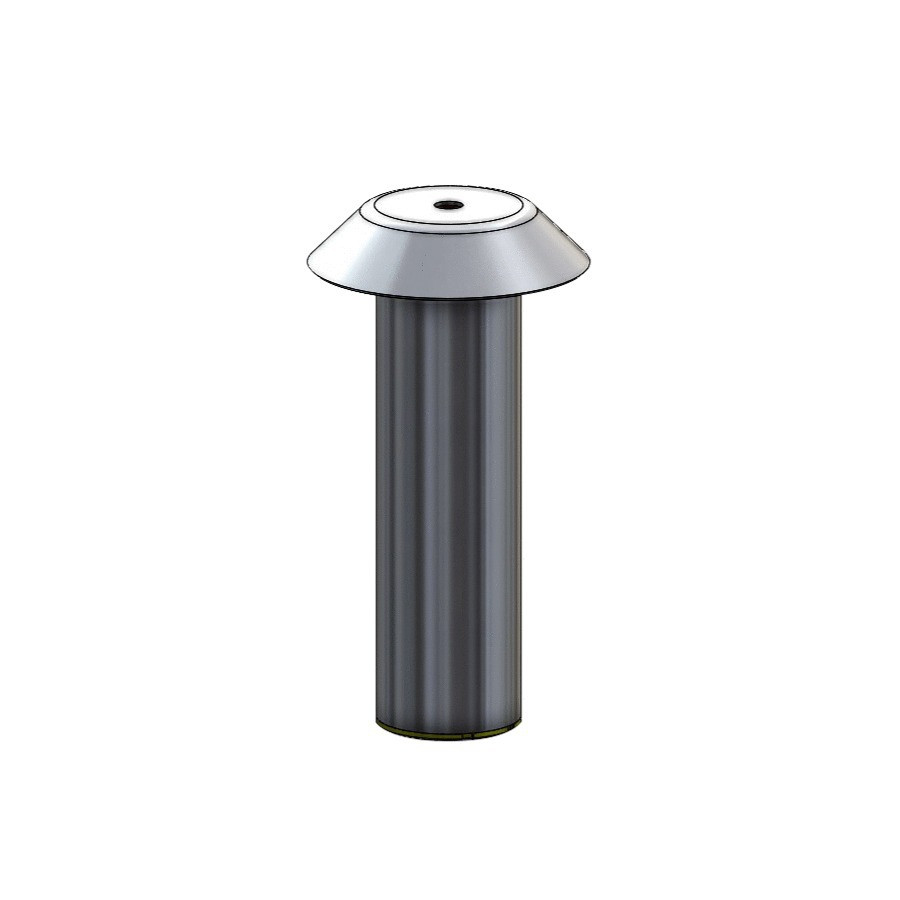

| CONEKT Diabolo Riser H100 mm | |
|---|---|
| Reference : | AD |
| Quantity : |
|

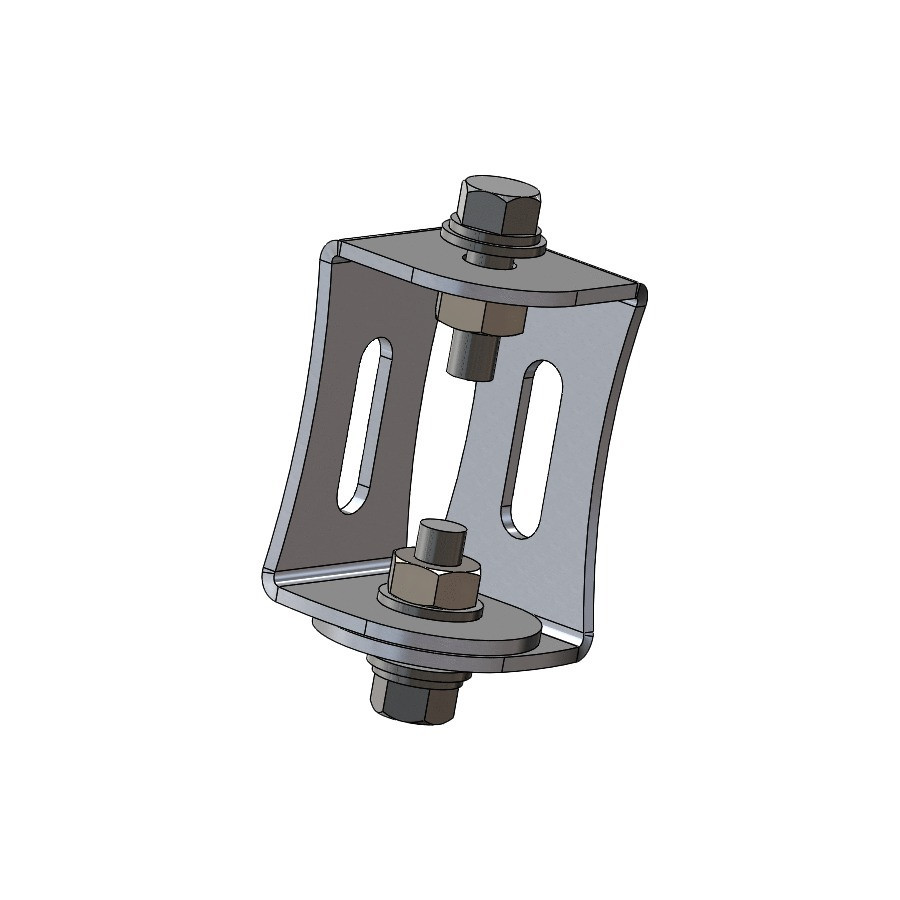

| CONEKT Tilting Post H250 mm | |
|---|---|
| Reference : | PB250 |
| Quantity : |
|
| Conekt Lot de 16 vis autoforeuses + bande epdm | |
|---|---|
| Reference : | PBa |
| Quantity : |
|
| Conekt Set of 12 rivets + EPDM strip | |
|---|---|
| Reference : | PBr |
| Quantity : |
|
| CONEKT MINI OMEGA Stainless steel plate for steel decking | |
|---|---|
| Reference : | A0014994 |
| Quantity : |
|
Use

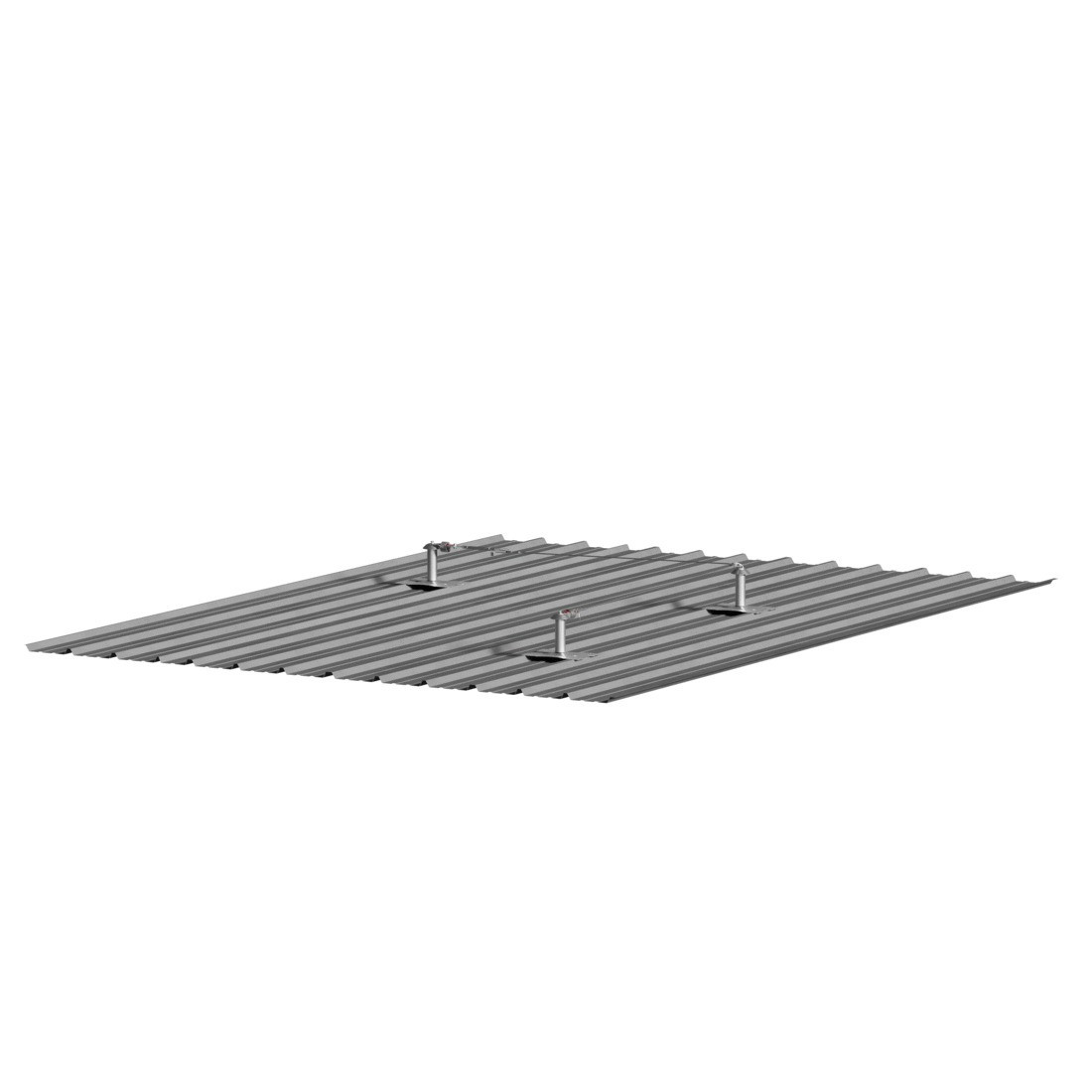

The installation of a CONEKT manual cable lifeline on a dry deck is carried out using the PB2 plate, on which a riser must be added (AD diabolo or PB250 tilting post).
Technical specifications to be observed:
Dry deck thickness ≥ 0.63 mm
Spacing between fixings: 10 - 12 m max
Maximum of 4 users simultaneously
Periodic inspection at least once every 12 months
-
![]()
