Manual Cable Lifeline on Standing Seam Roof CONEKT
Warranty 5 years
The CONEKT automatic cable lifeline allows you to work safely at height. Its components are designed to make your movements simple and secure.
Advantages and strengths
Time-saving, quick and easy installation, sleek design
Technical characteristics
| CONEKT Short Interface on Standing Seam Roof | |
|---|---|
| Reference : | ICJD S |
| Quantity : |
|

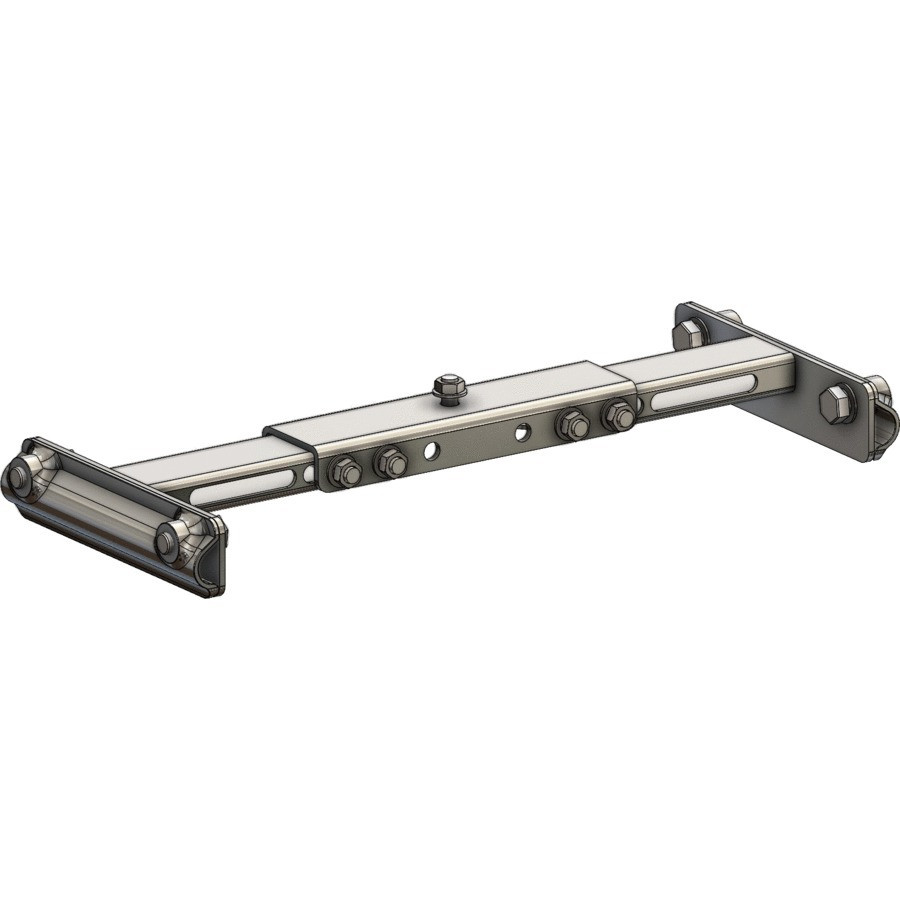

| CONEKT Wide Interface on Standing Seam Roof | |
|---|---|
| Reference : | ICJD L |
| Quantity : |
|

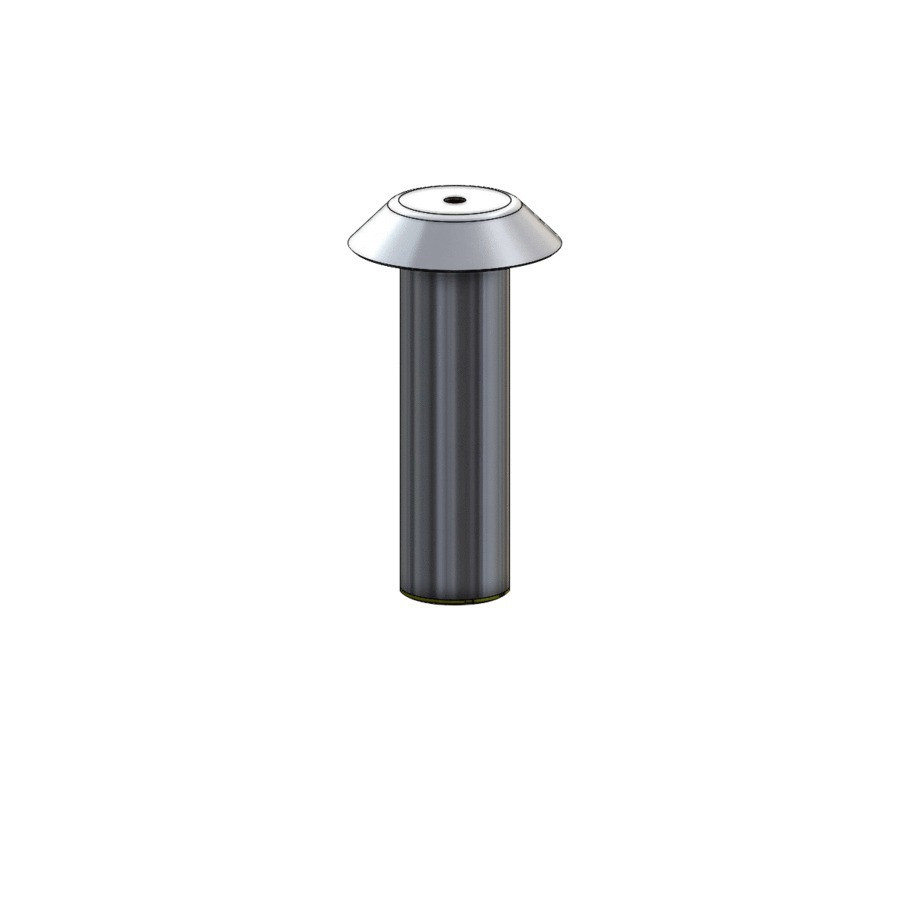

| CONEKT Diabolo Riser H100 mm | |
|---|---|
| Reference : | AD |
| Quantity : |
|
| CONEKT Tilting Post H250 mm | |
|---|---|
| Reference : | PB250 |
| Quantity : |
|
Use

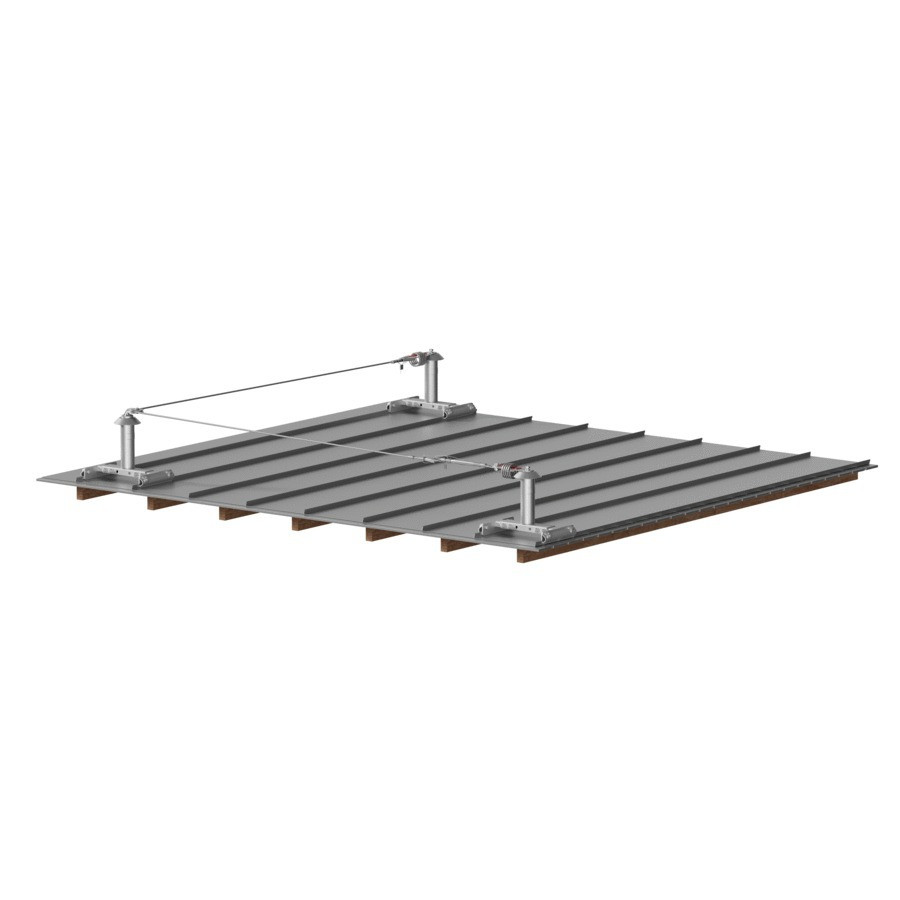

The installation of a CONEKT cable lifeline on a standing seam roof is carried out using the ICJD S or ICJD L plates, specially designed for this type of support. The correct plate should be selected according to the spacing between the standing seams. A riser (AD diabolo or PB250 tilting post) can be added if necessary.
Technical specifications to be observed:
Suitable for use on flat or rounded standing seams
Zinc ≥ 1 mm / Steel ≥ 0.63 mm / Aluminium ≥ 0.9 mm
Spacing between fixings: 10 - 12 m max
Maximum of 4 users simultaneously
Periodic inspection at least once every 12 months
-
![]()
