CONEKT manually crimped energy absorber
CONEKT manually crimped energy absorber

CONEKT manually crimped energy absorber

Select your reference
+
-
CONEKT manually crimped energy absorber

Technical characteristics

Reference Quantity Quote
Ref. S03
Code A0014048

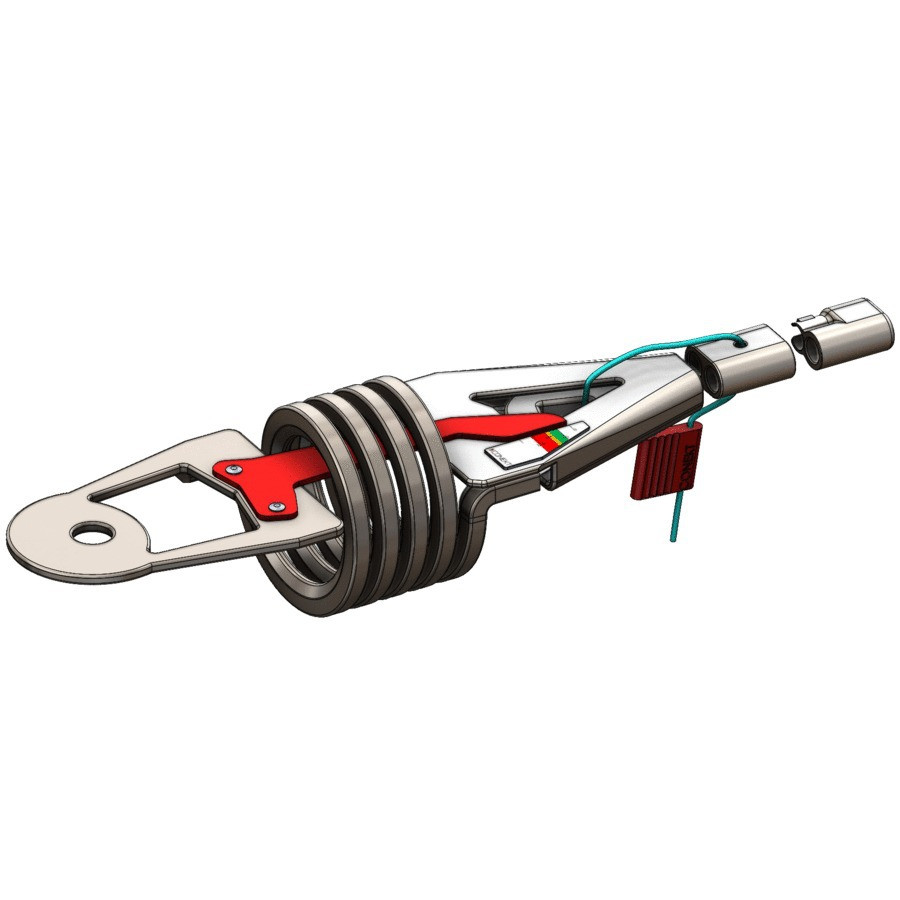

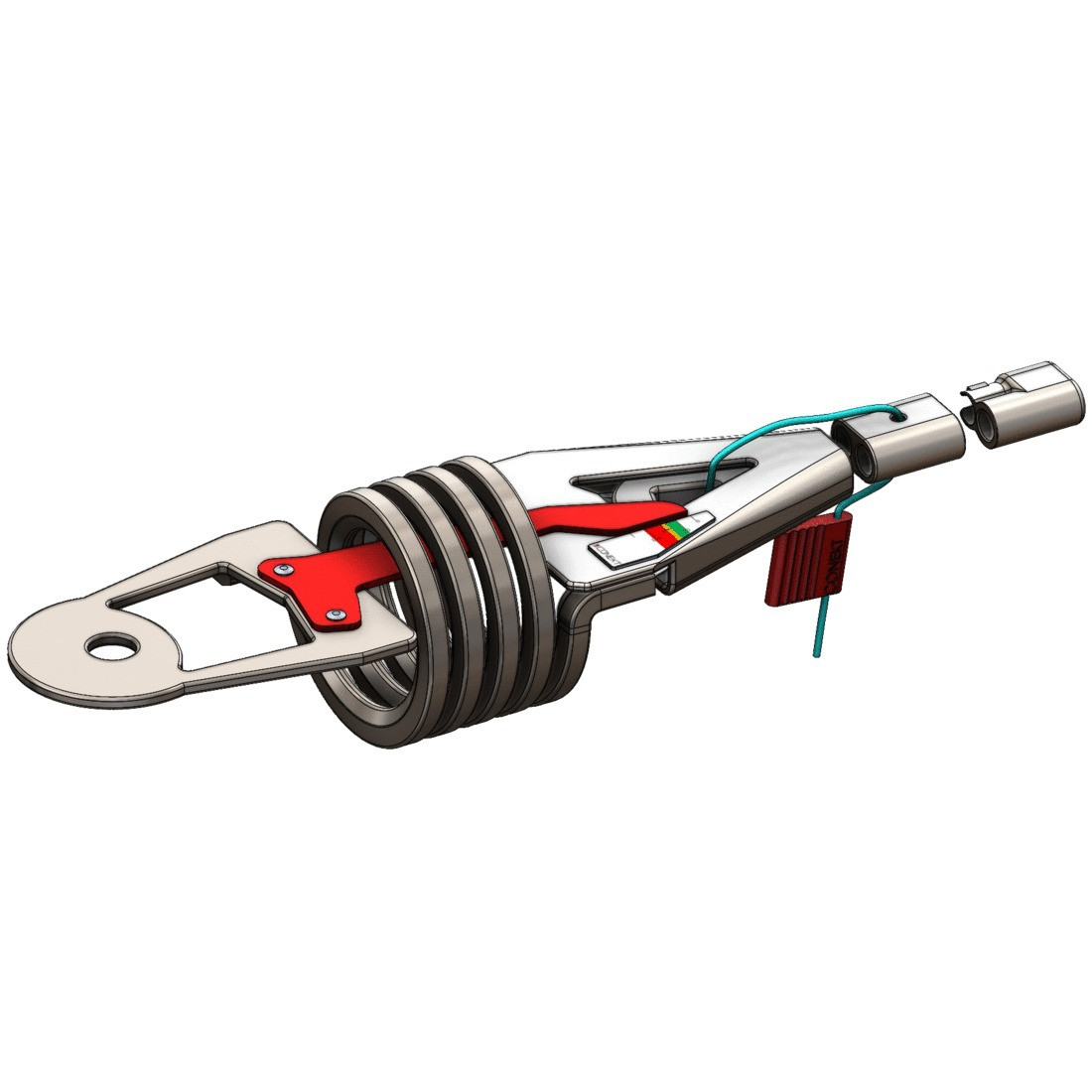

Manually crimped energy absorber (end fitting + Secur-Vit)
+
-
Manually crimped energy absorber (end fitting + Secur-Vit)
Reference : S03
Quantity :
+
-

Use

The energy absorber limits the force exerted on the supporting structure in the event of a fall. It is equipped with a Secur-Vit end fitting, a tension indicator, a finishing piece, and an integrated starting plate.

It allows the lifeline to be tensioned up to 100 daN. A graduated scale enables monitoring of cable tension.

The cut-out section of the starting plate allows the part to bend when used with tilting posts.

A lead seal is provided to secure the end fitting.

Composition: stainless steel 304

Finish: electropolished

Weight: 1.15 kg

Technical description

Composition: stainless steel 304


Finish: electropolished


Weight: 1.15 kg
