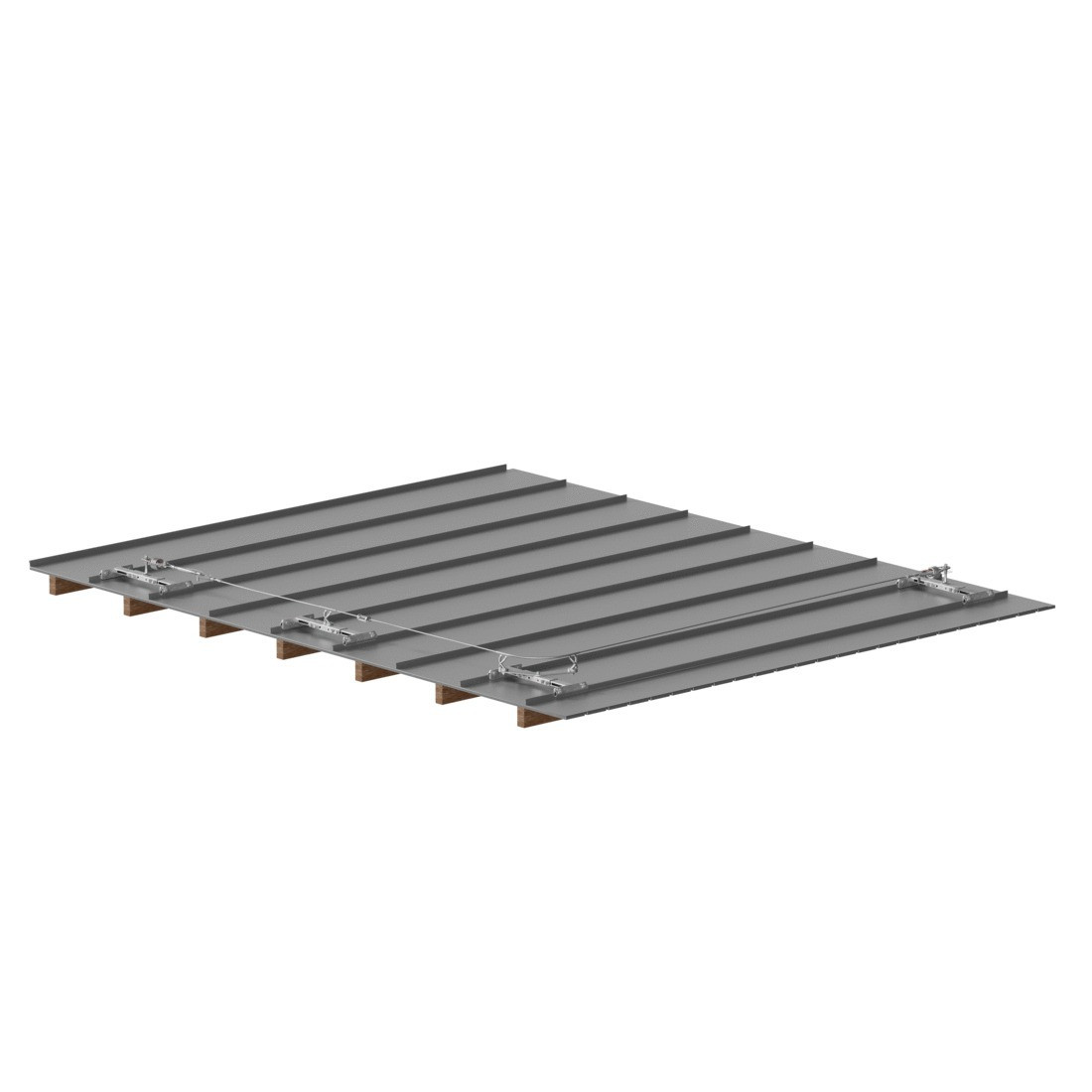

CONEKT automatic cable lifeline on standing seam roof
Warranty 5 years
The CONEKT automatic cable lifeline allows you to work safely at height. Its components are designed to make movement easy and secure. The smooth gliding of the trolleys along the cable and the CONEKT automatic pass-throughs also provide optimal user comfort.
Advantages and strengths
Time-saving, quick and easy installation, sleek design
Technical characteristics
| CONEKT short interface for standing seam | |
|---|---|
| Reference : | ICJD S |
| Quantity : |
|

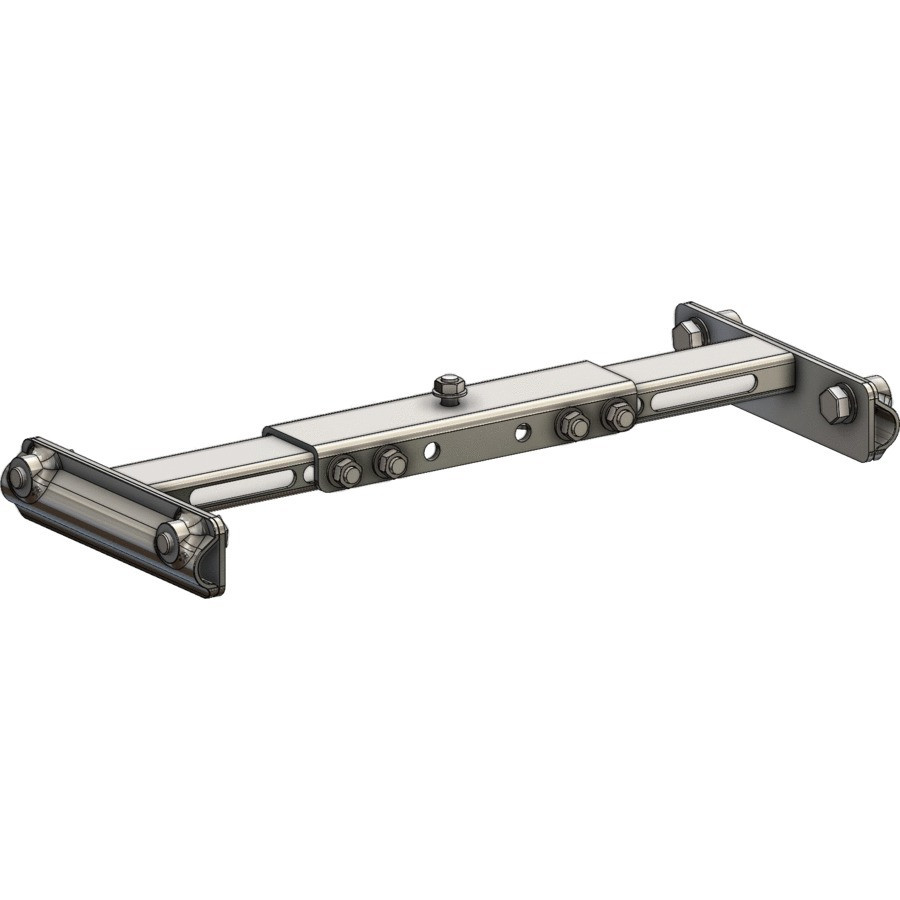

| CONEKT wide interface for standing seam | |
|---|---|
| Reference : | ICJD L |
| Quantity : |
|

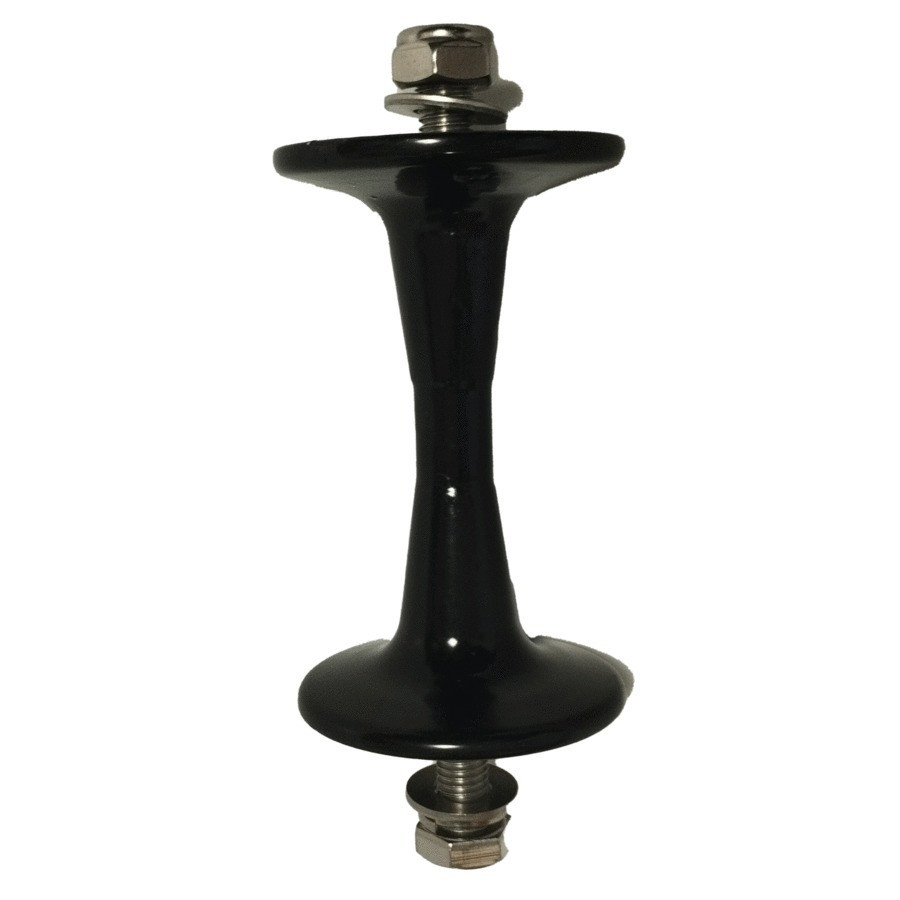

| CONEKT diabolo spacer, 100 mm height | |
|---|---|
| Reference : | AD |
| Quantity : |
|

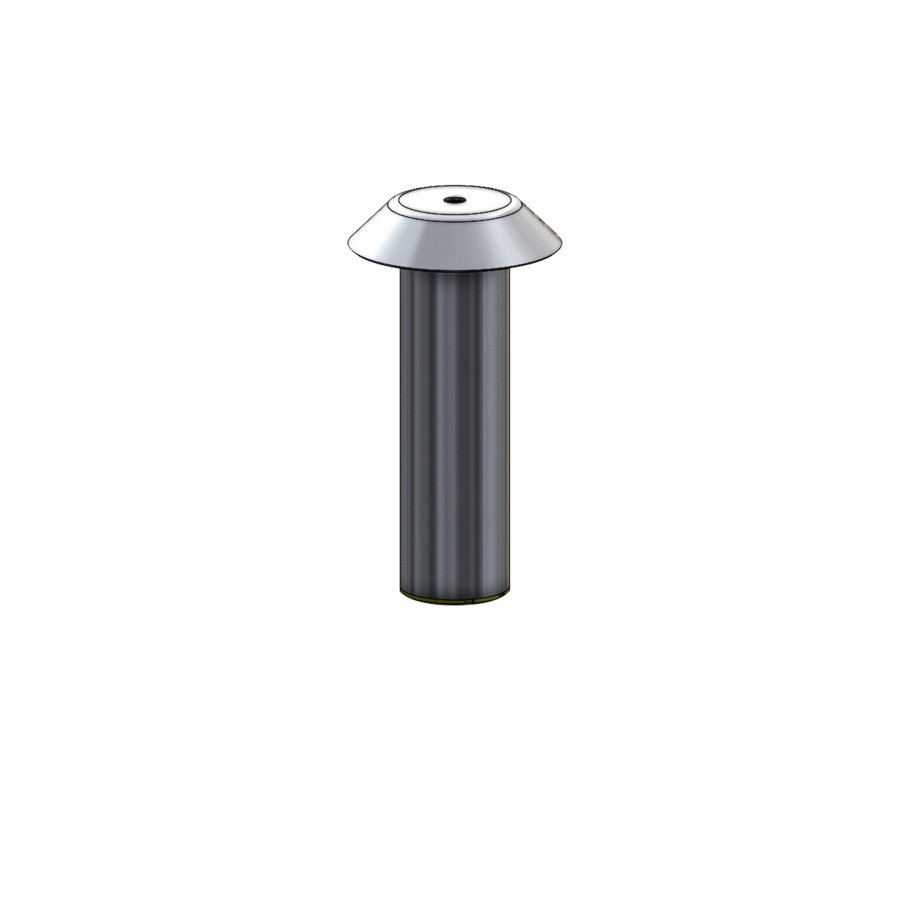

| CONEKT tilting post, 250 mm height | |
|---|---|
| Reference : | PB250 |
| Quantity : |
|
Use
The installation of a CONEKT cable lifeline on standing seam roofing is done using ICJD S or ICJD L plates, specially designed for this type of support. The appropriate plate should be selected based on the spacing between seams. A riser (AD spacer or PB250 tilting post) can be added if necessary.
Technical specifications to comply with:
Use on flat or rounded standing seams
Spacing between fixings: max 10 - 12 m
Maximum 4 simultaneous users
Periodic inspection at least once every 12 months
-
![]()
