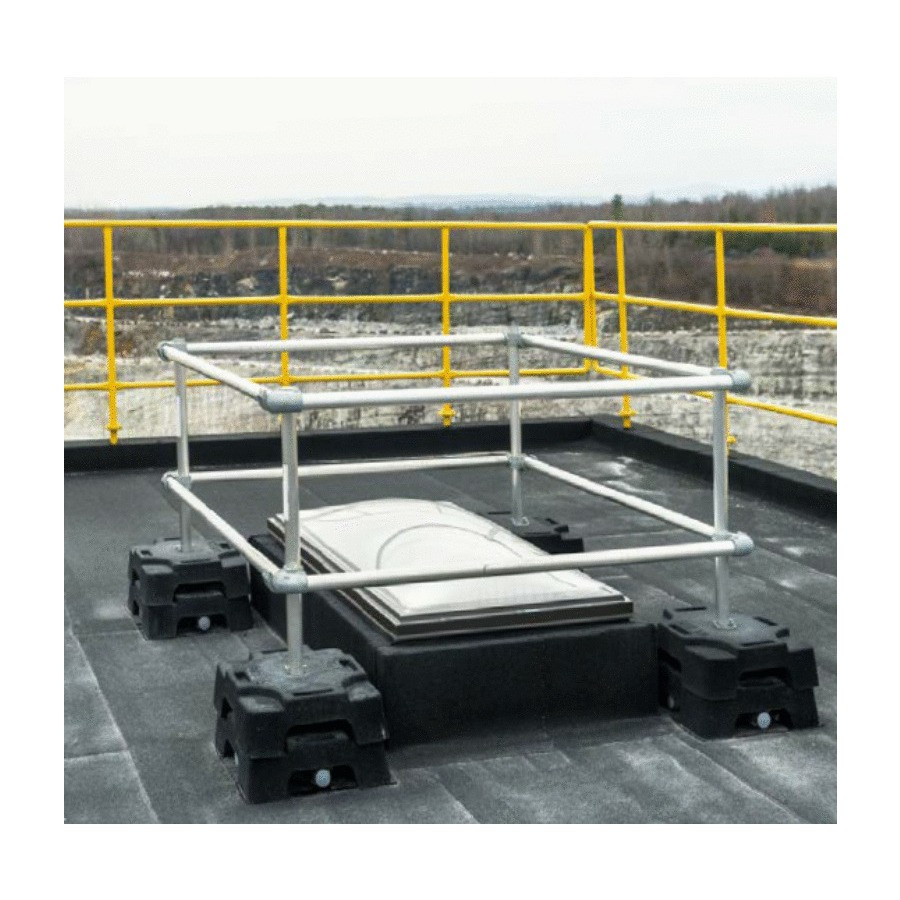

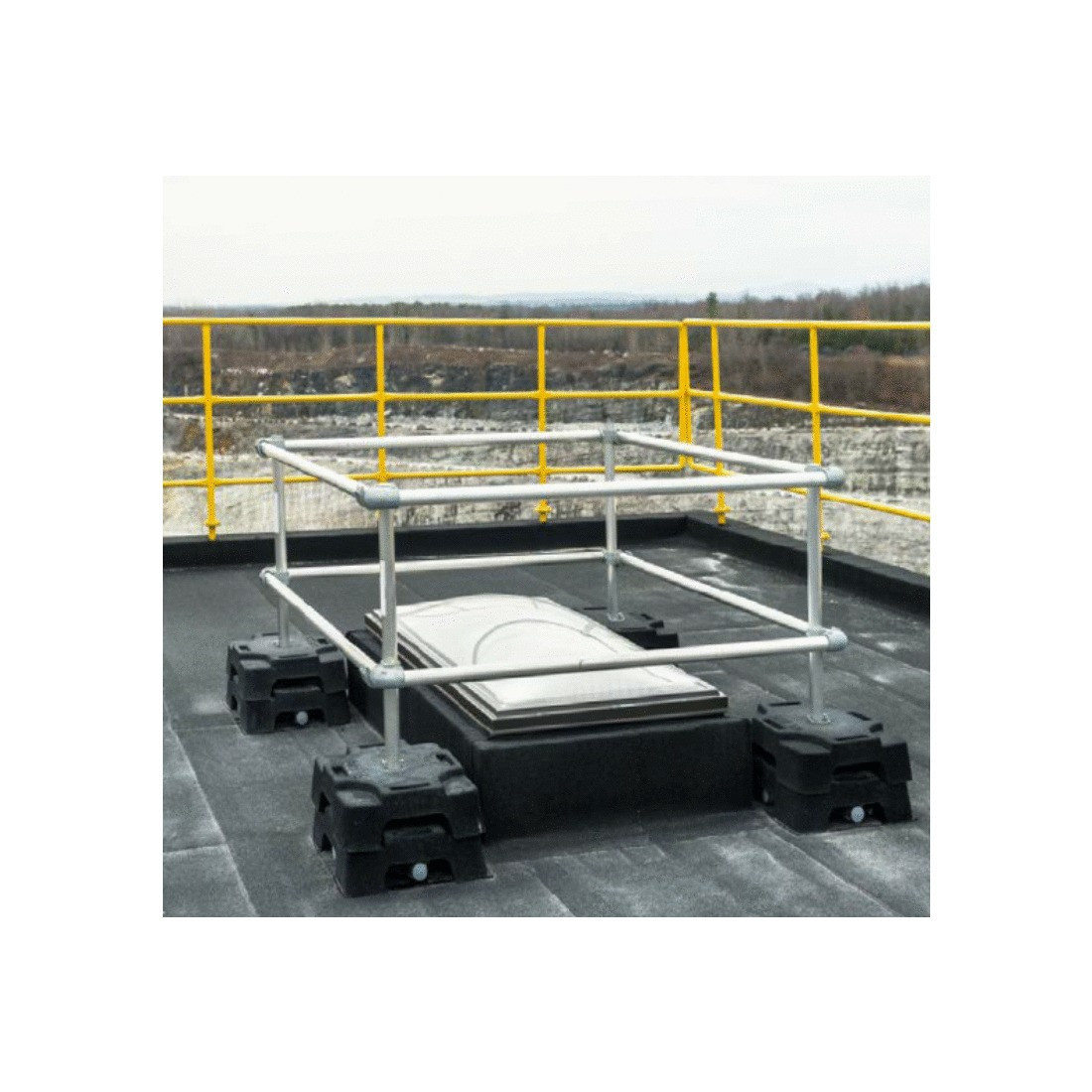

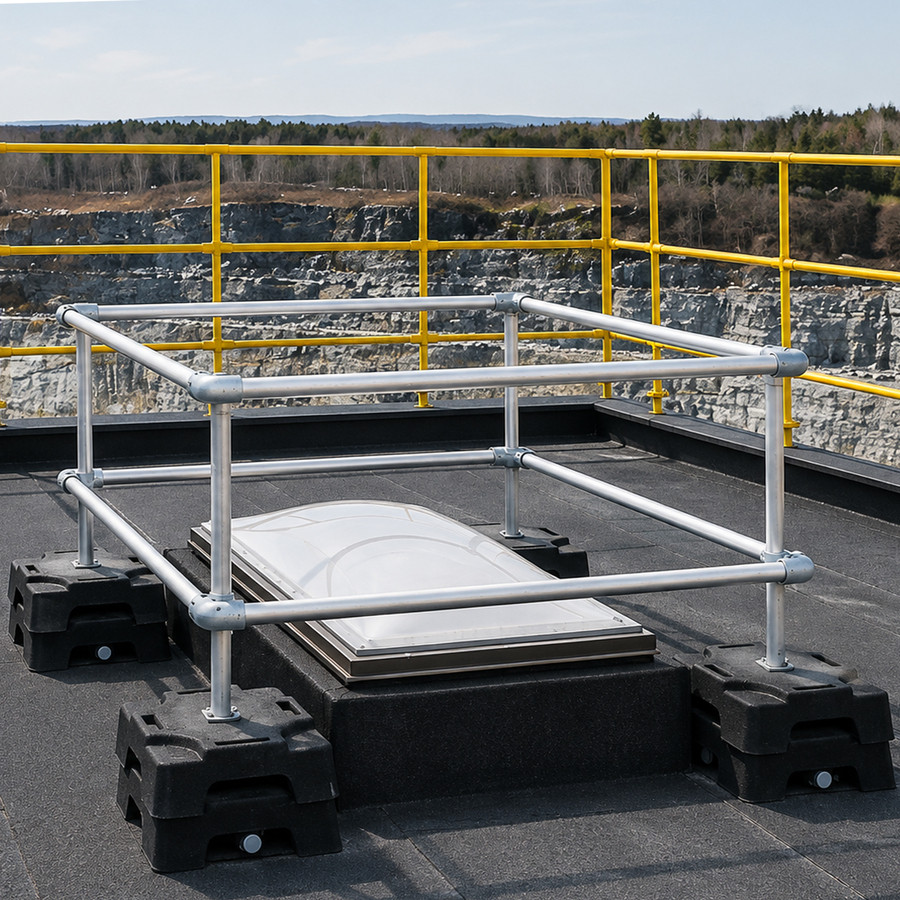

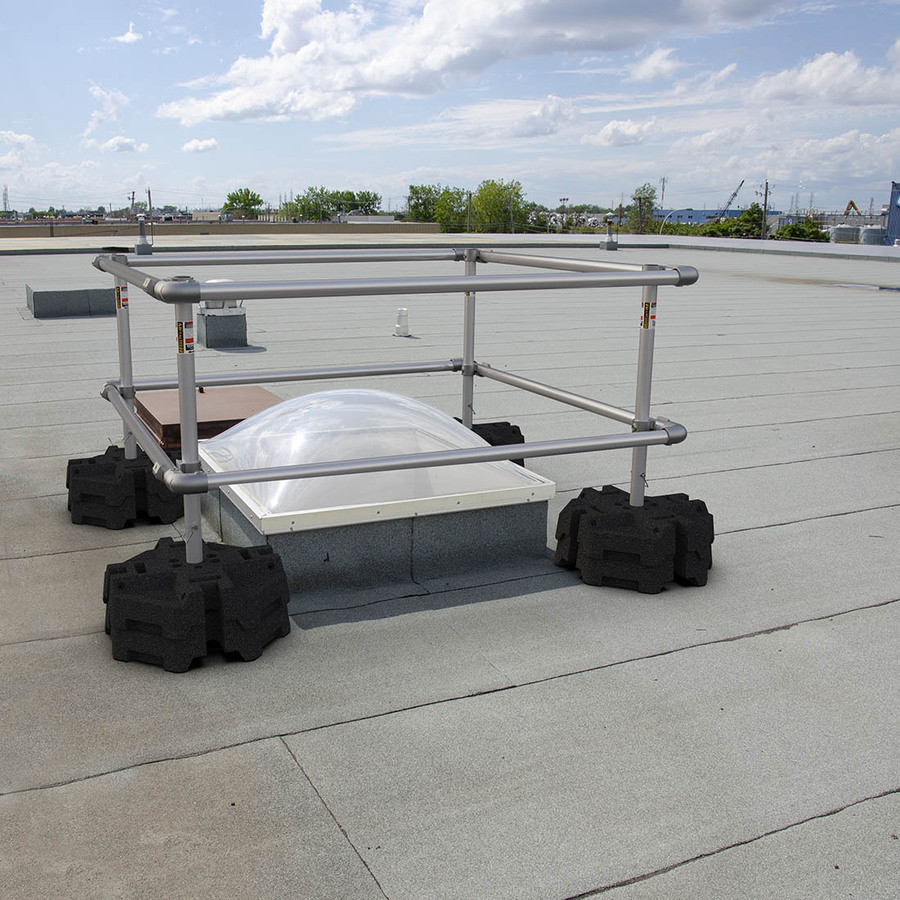

GUARDRAIL FOR SKYLIGHTS AND SKYDOMES
Warranty 10 years
Ensures optimal safety for visitors.
Advantages and strengths
Quick and easy assembly. Ultimate weatherproof.
Use
Self-supporting guardrail.
Installed without anchor and, therefore, without any damage to the roof.
Built according to your needs.
It can be installed directly on the membrane.
Moulded handle for easy transport.
10 years of warranty.
Technical description
Aluminium pipes
Outer diameter: 25.40 mm (1.9")
Recycled high adhesion rubber base
Height: 1.06 m (42")
Max. distance between posts: 3 m (120")
Counterweight: 22.70 kg (50 lb/base)
Fittings: galvanised steel
Hardware: stainless steel
Tightening torque: 13.60 kg (30 lb/pi) (CL201: 20 lb/pi)
