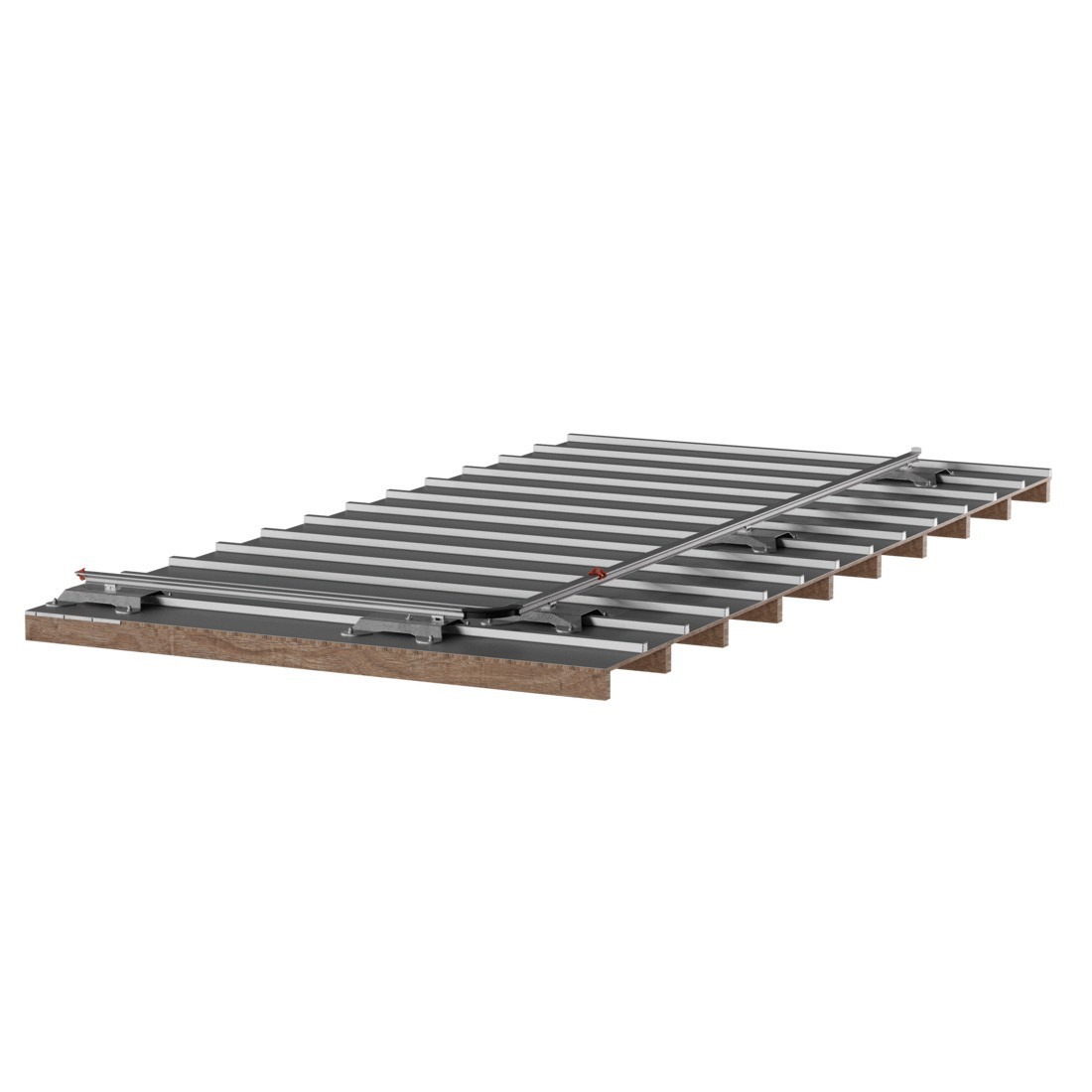

CONEKT rail lifeline for zinc boarding roof
Warranty 5 years
The CONEKT rail lifeline lets you work safely at height. Thanks to its controlled deflection, it can easily be installed in areas with limited clearance. The rigidity of the rail also provides optimal comfort when moving along the system.
Advantages and strengths
Simple, quick-to-install range with a clean design, with no minimum distance required between fixing points and splice joints.
Technical characteristics

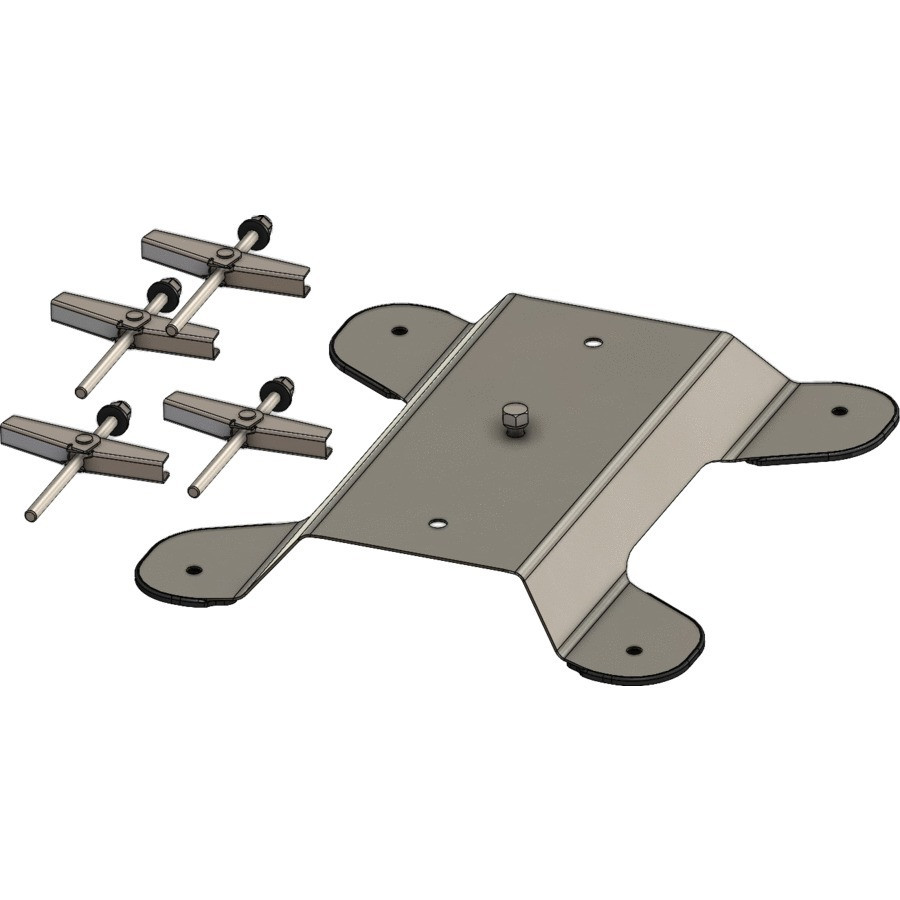

| CONEKT interface for zinc roofing | |
|---|---|
| Reference : | ICZ |
| Quantity : |
|
| CONEKT H100 mm diabolo standoff | |
|---|---|
| Reference : | AD |
| Quantity : |
|
| CONEKT 250 mm pivoting post | |
|---|---|
| Reference : | PB250 |
| Quantity : |
|

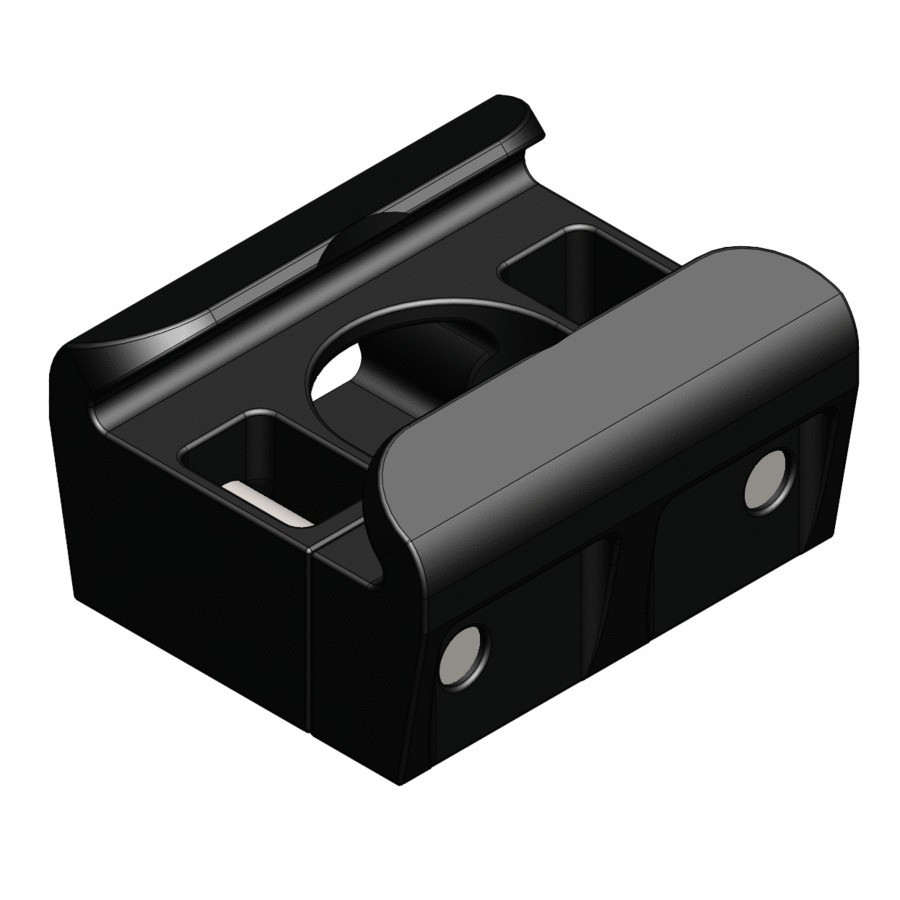

| CONEKT short rail fixing | |
|---|---|
| Reference : | R25 |
| Quantity : |
|
Use
Installing a CONEKT rail lifeline on zinc boarding is done using:
the ICZ interface, specifically designed for this type of substrate
the R25 short rail fixing to attach the rail directly onto the interface, or onto a standoff (PB250 pivoting post or AD "diabolo") if extra height is required
Technical requirements:
Boarding ≥ 12 mm + zinc sheet
Maximum spacing between fixings: 6 m
Periodic inspection at least once every 12 months
Technical description
Rigid lifeline in anodized aluminium.
CONEKT rails and lifeline components have no sharp edges that could damage lanyards or ropes.
-
![]()
