CONEKT rail lifeline for sandwich panel roofing
Warranty 5 years
The CONEKT rail lifeline lets you work safely at height. Thanks to its controlled deflection, it can easily be installed in areas with limited clearance. The rigidity of the rail also provides optimal comfort when moving along the system.
Advantages and strengths
Simple, quick-to-install range with a clean design, with no minimum distance required between fixing points and splice joints.
Technical characteristics
| Plate for 2 CONEKT pivot brackets | |
|---|---|
| Reference : | PB2 |
| Quantity : |
|

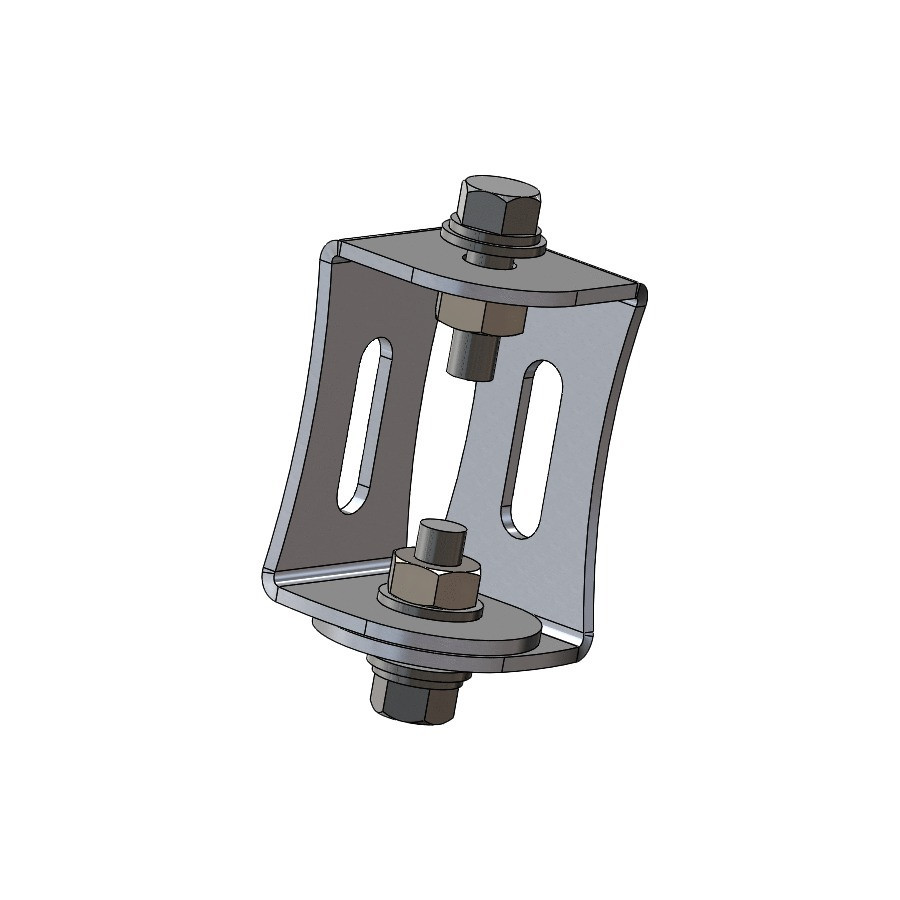

| CONEKT H100 mm diabolo standoff | |
|---|---|
| Reference : | AD |
| Quantity : |
|

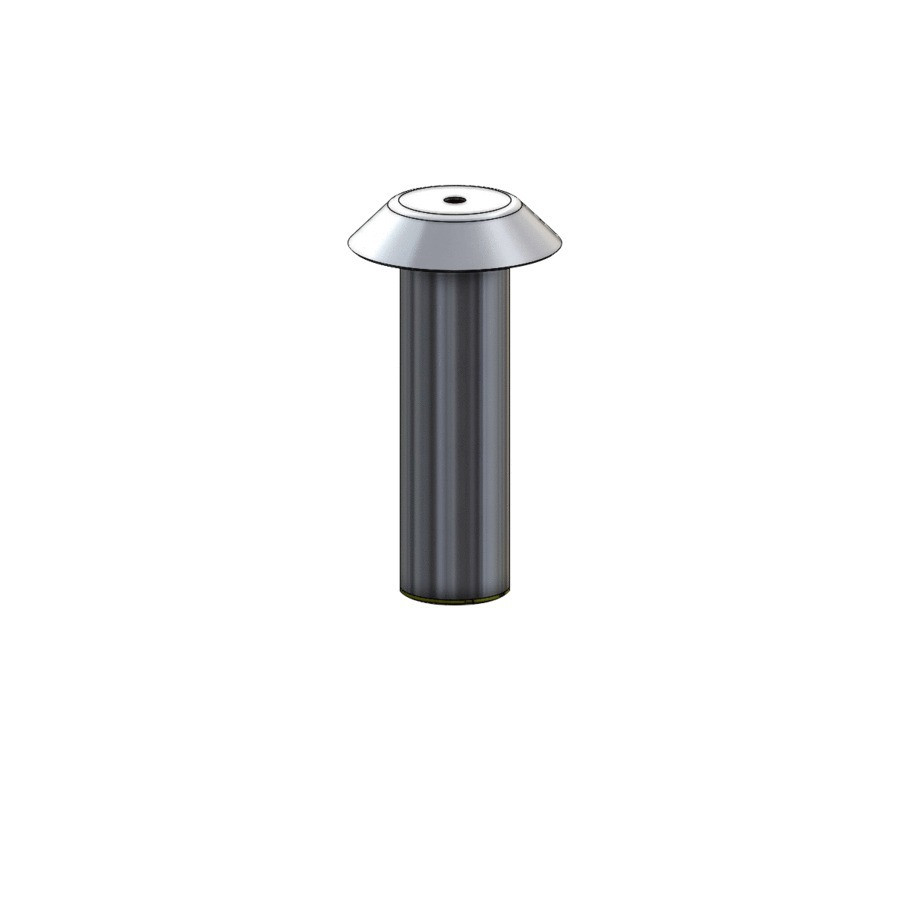

| CONEKT 250 mm pivoting post | |
|---|---|
| Reference : | PB250 |
| Quantity : |
|

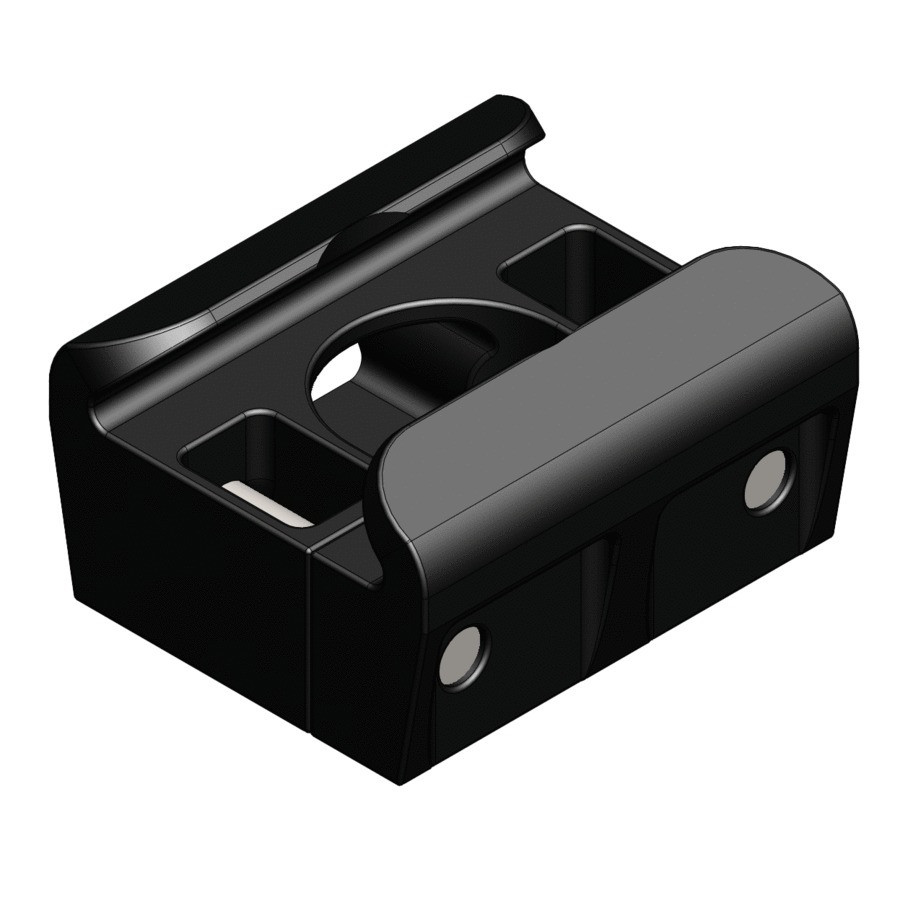

| CONEKT short rail fixing | |
|---|---|
| Reference : | R25 |
| Quantity : |
|

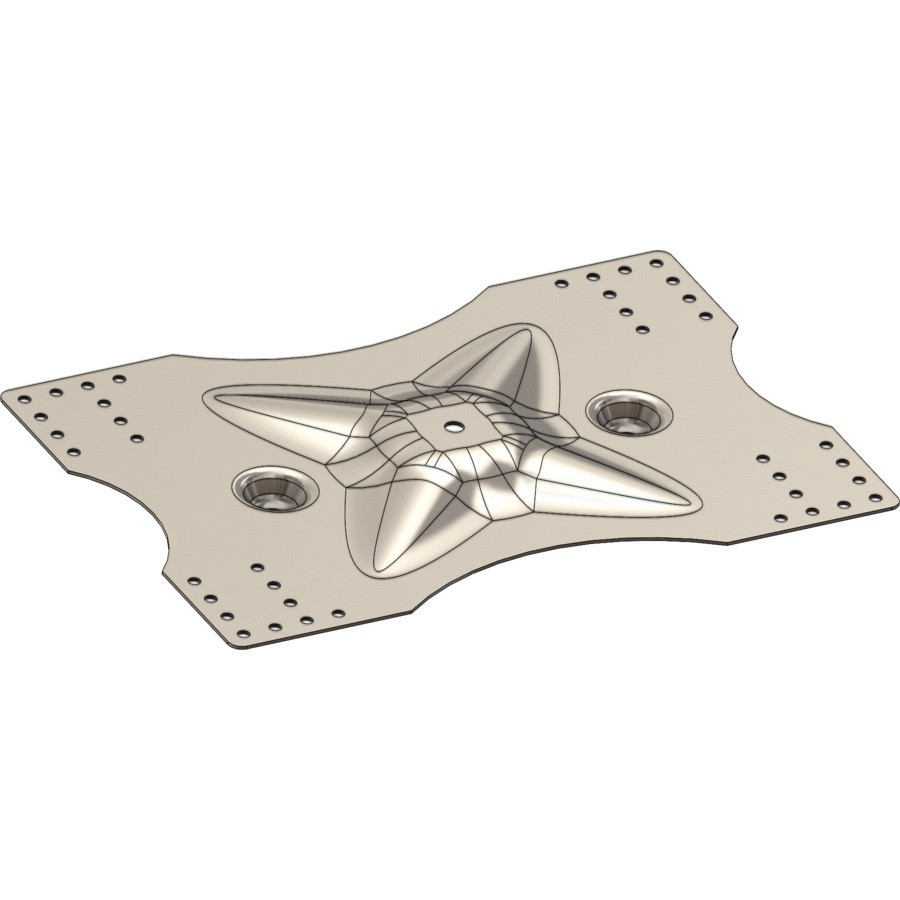

| CONEKT MINI OMEGA stainless steel base plate for steel deck | |
|---|---|
| Reference : | A0014994 |
| Quantity : |
|
Use

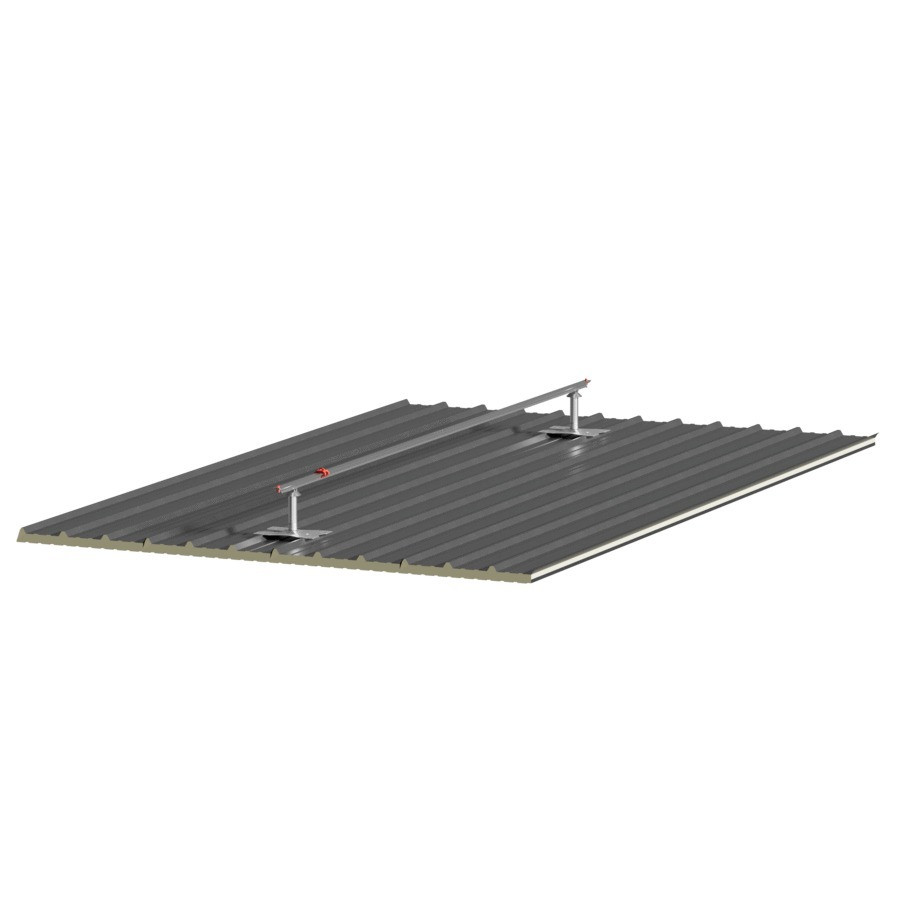

Installing a CONEKT rail lifeline on a sandwich panel roof is done using:
the PB1 base plate or the PB2 base plate, selected according to the wave/pitch width of your panel
the R25 short rail fixing to attach the rail directly to the plate, or to a standoff (PB250 pivoting post or AD "diabolo") if extra height is required
Technical requirements:
Panel thickness ≥ 0.5 mm
Maximum spacing between fixings: 6 m
Maximum 4 users simultaneously
Periodic inspection at least once every 12 months
Technical description
Rigid lifeline in anodized aluminium.
CONEKT rails and lifeline components have no sharp edges that could damage lanyards or ropes.
-
![]()
