Rigid lifeline in anodized aluminium.
CONEKT rails and lifeline components have no sharp edges that could damage lanyards or ropes.

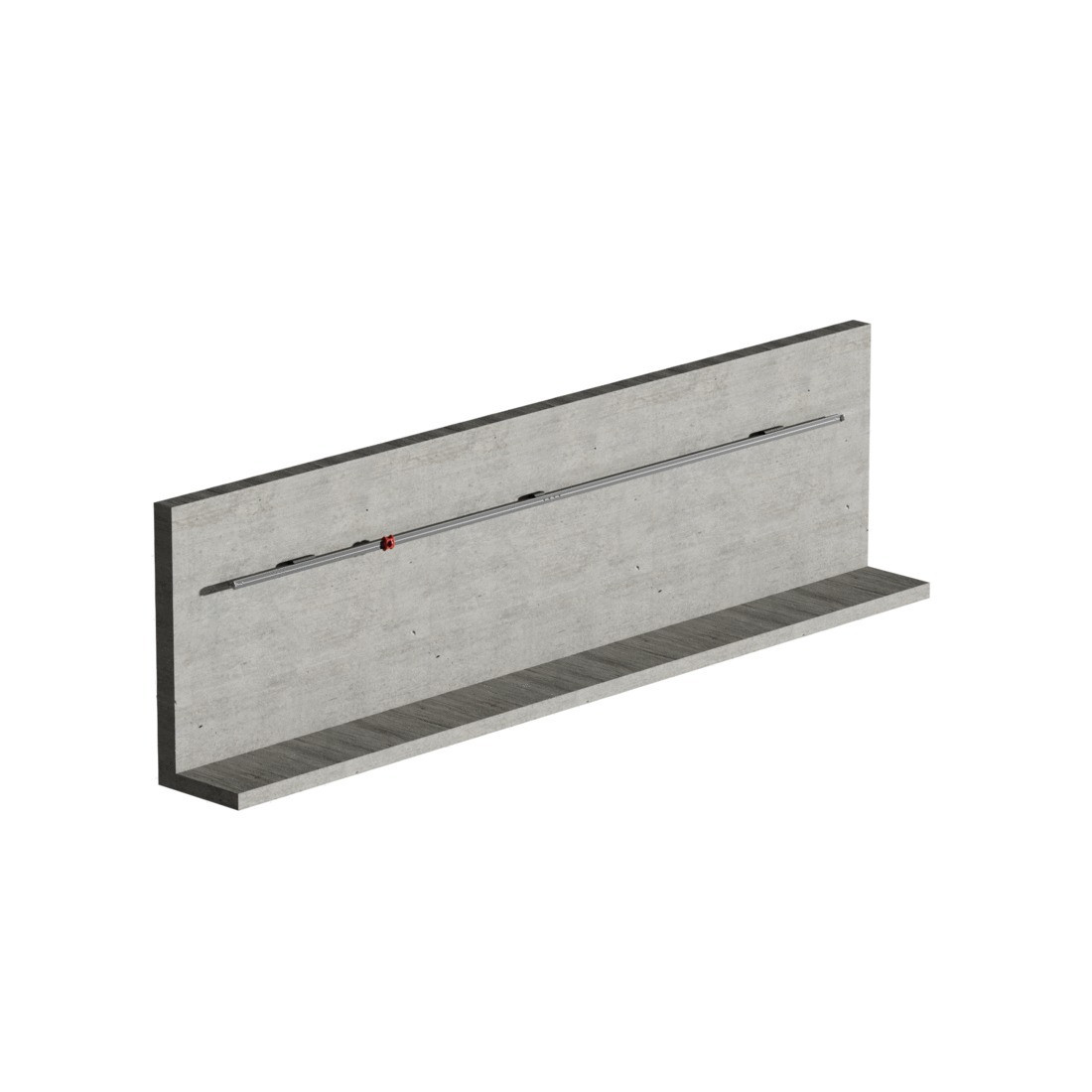

CONEKT rail lifeline for concrete wall
CONEKT rail lifeline for concrete wall
Warranty 5 years
Standard: EN795:2012/CEN/TS 16415:2013
The CONEKT rail lifeline lets you work safely at height. Thanks to its controlled deflection, it can easily be installed in areas with limited clearance. The rigidity of the rail also provides optimal comfort when moving along the system.
Select your reference
CONEKT rail lifeline for concrete wall
Advantages and strengths
Simple, quick-to-install range with a clean design, with no minimum distance required between fixing points and splice joints.
Technical characteristics

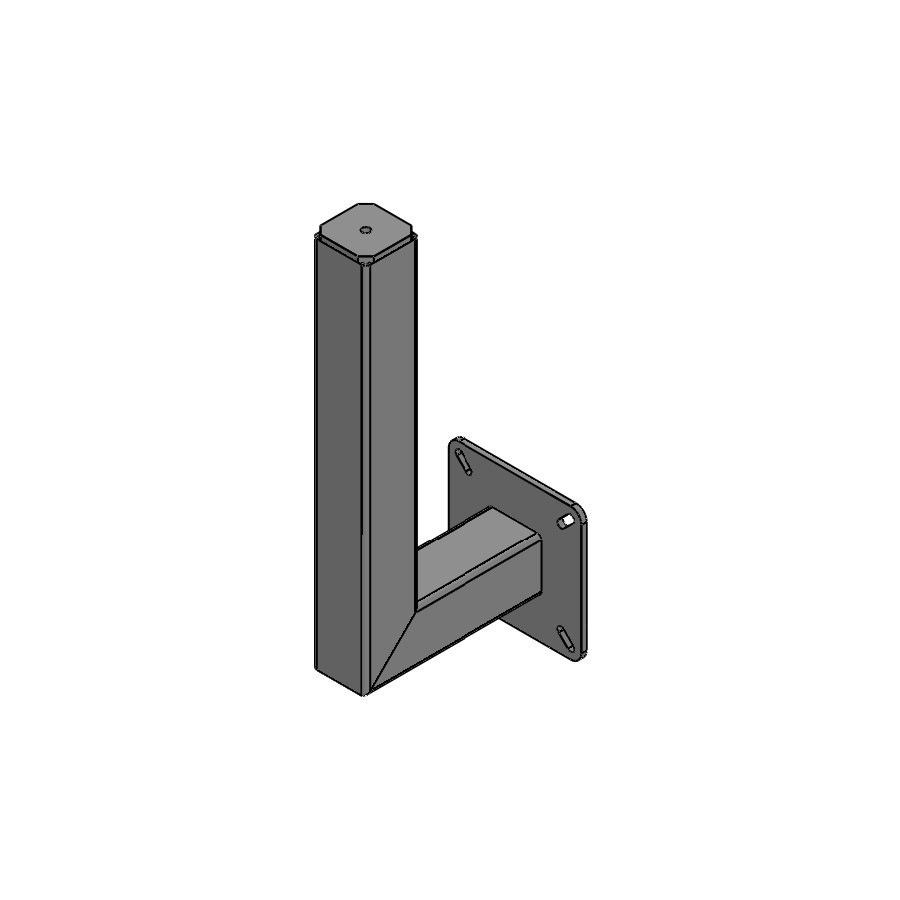

| CONEKT L-shaped rigid concrete wall post H700 | |
|---|---|
| Reference : | PL700 |
| Quantity : |
|

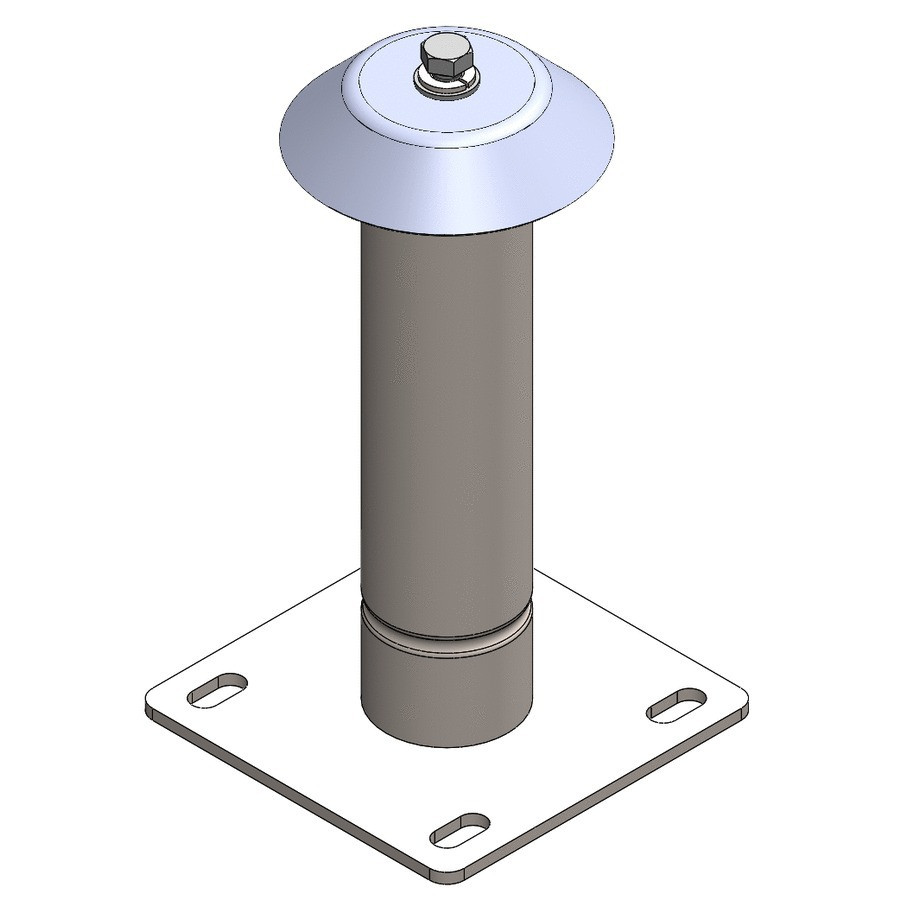

| CONEKT rigid concrete post H300 mm | |
|---|---|
| Reference : | P300 |
| Quantity : |
|

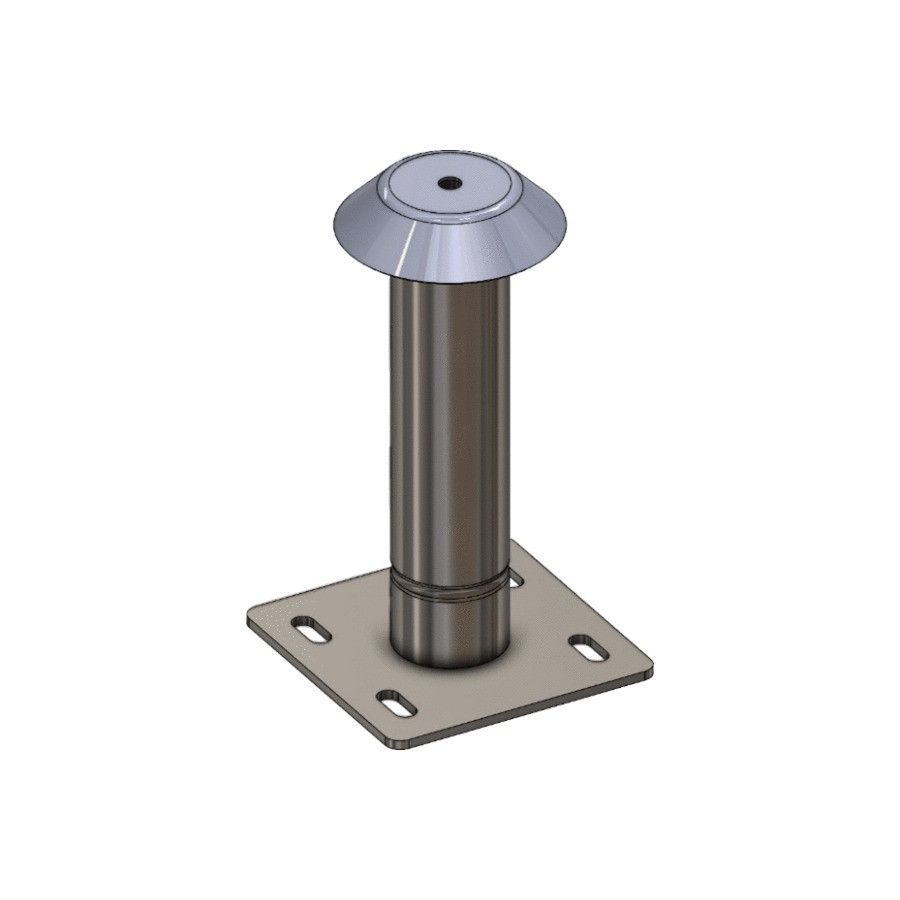

| CONEKT rigid concrete post H500 mm | |
|---|---|
| Reference : | P500 |
| Quantity : |
|

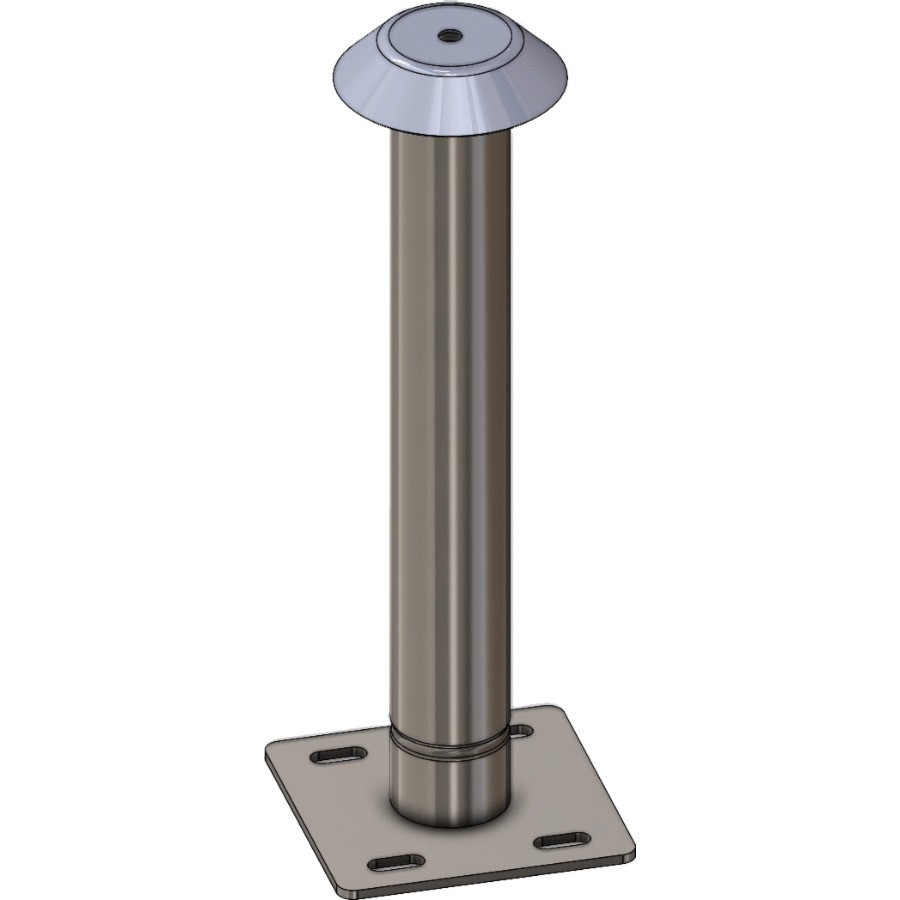

| CONEKT rigid concrete post H700 mm | |
|---|---|
| Reference : | P700 |
| Quantity : |
|
| CONEKT rigid concrete post H1000 mm | |
|---|---|
| Reference : | P1000 |
| Quantity : |
|

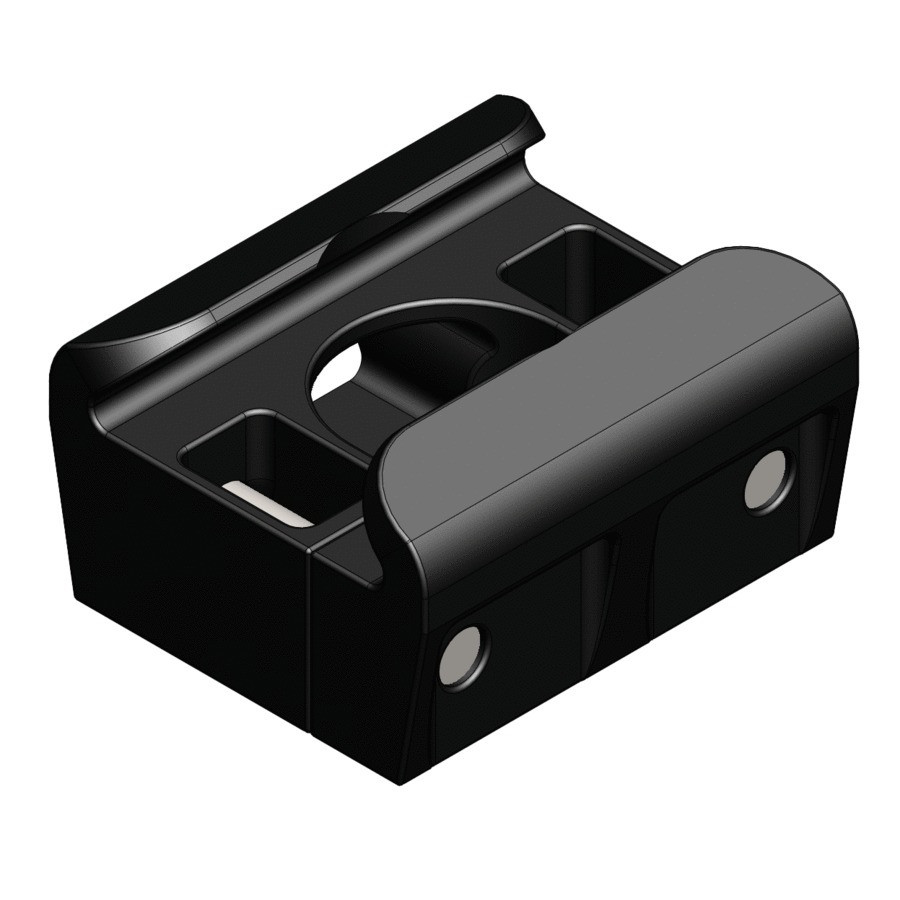

| CONEKT short rail fixing | |
|---|---|
| Reference : | R25 |
| Quantity : |
|

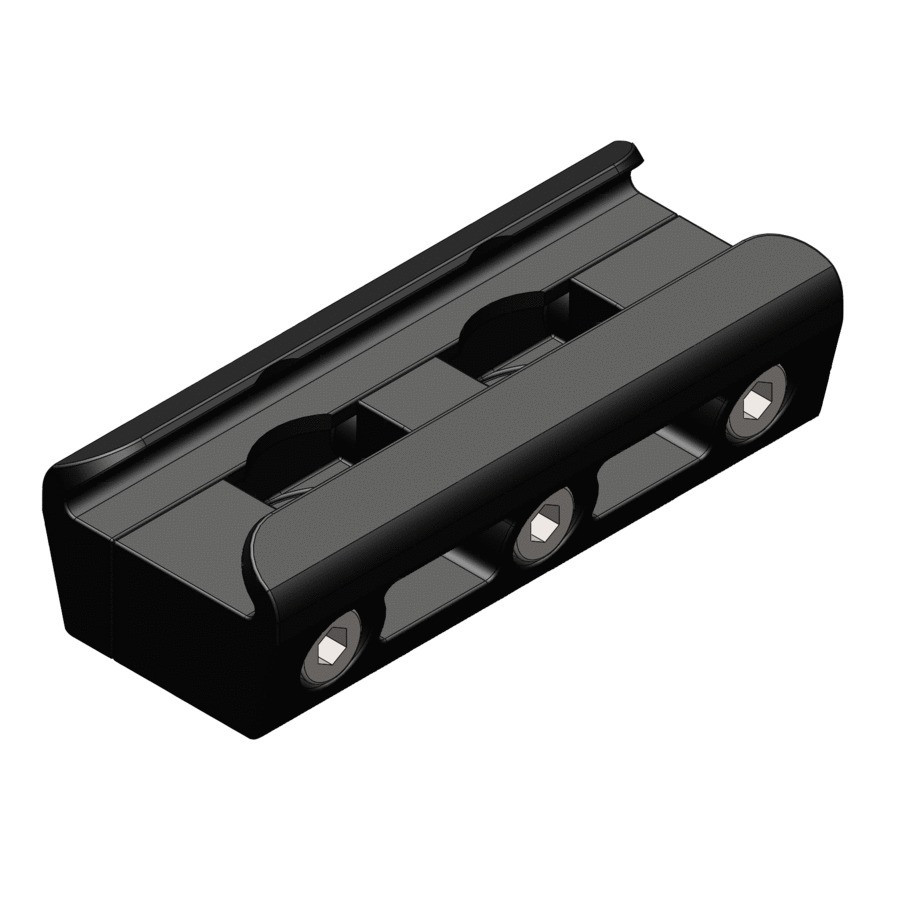

| CONEKT wide rail fixing | |
|---|---|
| Reference : | R25XL |
| Quantity : |
|
Use
Installing a CONEKT rail lifeline on a concrete wall is done using:
the R25 short rail fixing or the R25XL wide rail fixing to attach the rail directly to the concrete wall
the rigid concrete posts P300 or P500 if additional height/standoff is required
Technical requirements:
Maximum spacing between fixings: 6 m
Periodic inspection at least once every 12 months
Technical description
-
![]()
