CONEKT rail lifeline for standing seam roofing
Warranty 5 years
The CONEKT rail lifeline lets you work safely at height. Thanks to its controlled deflection, it can easily be installed in areas with limited clearance. The rigidity of the rail also provides optimal comfort when moving along the system.
Advantages and strengths
Simple, quick-to-install range with a clean design, with no minimum distance required between fixing points and splice joints.
Technical characteristics

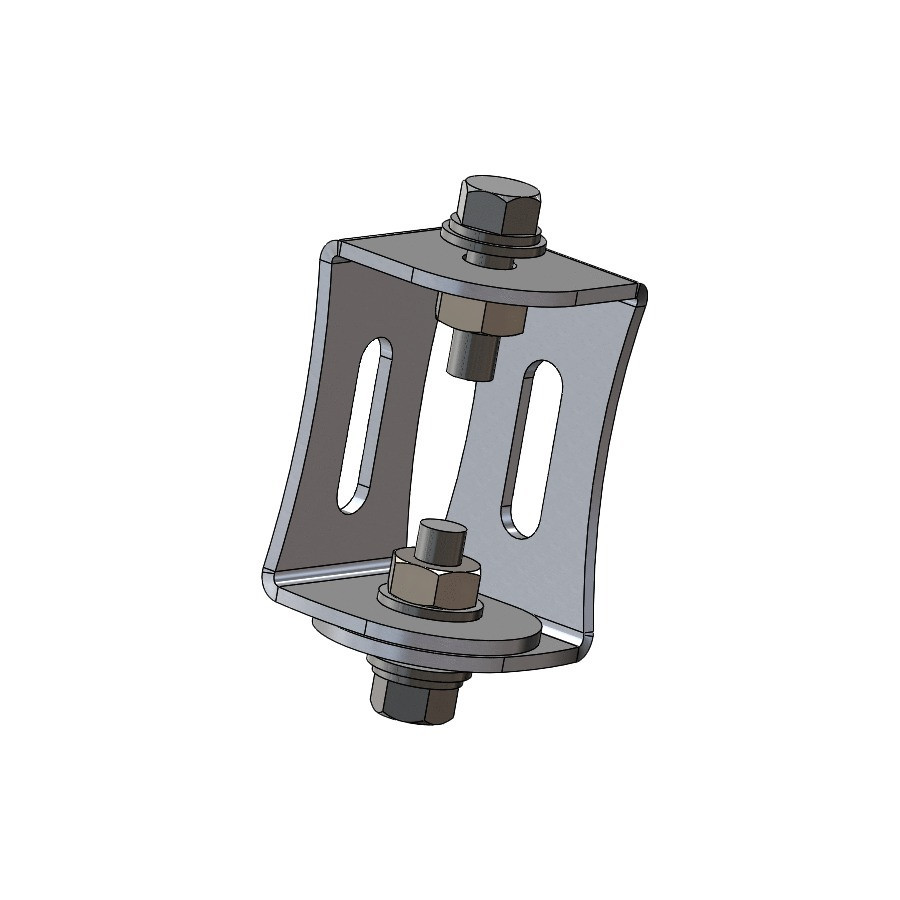

| CONEKT short interface for standing seam roofing | |
|---|---|
| Reference : | ICJD S |
| Quantity : |
|

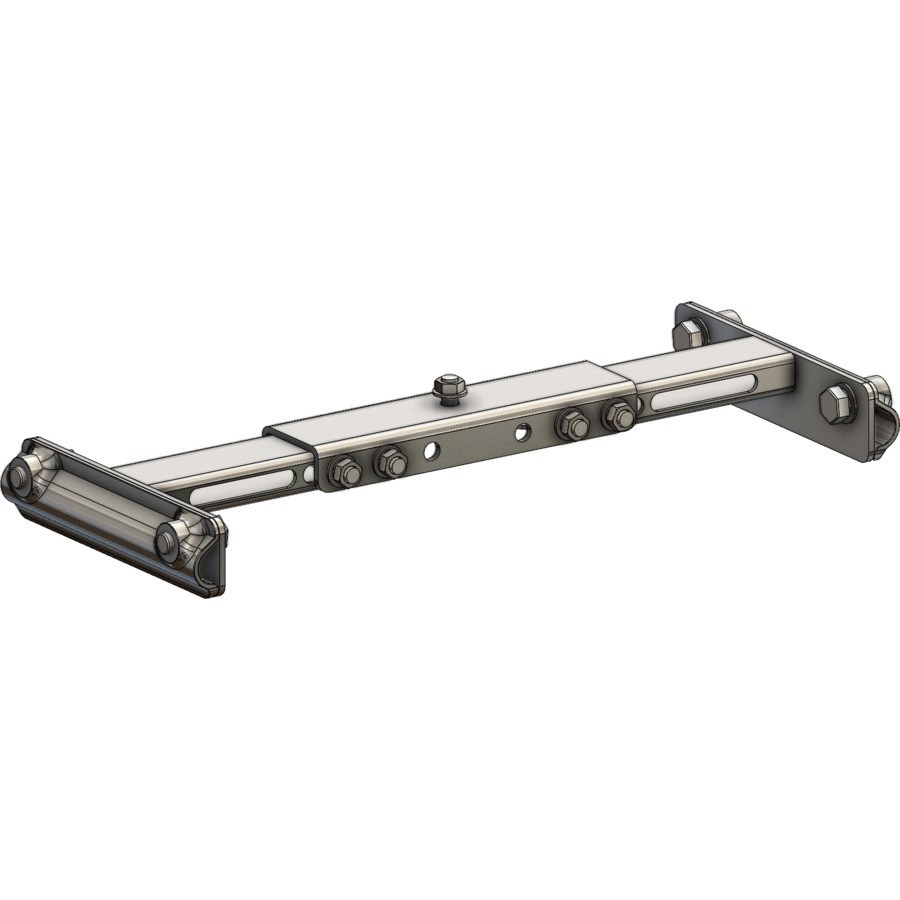

| CONEKT wide interface for standing seam roofing | |
|---|---|
| Reference : | ICJD L |
| Quantity : |
|

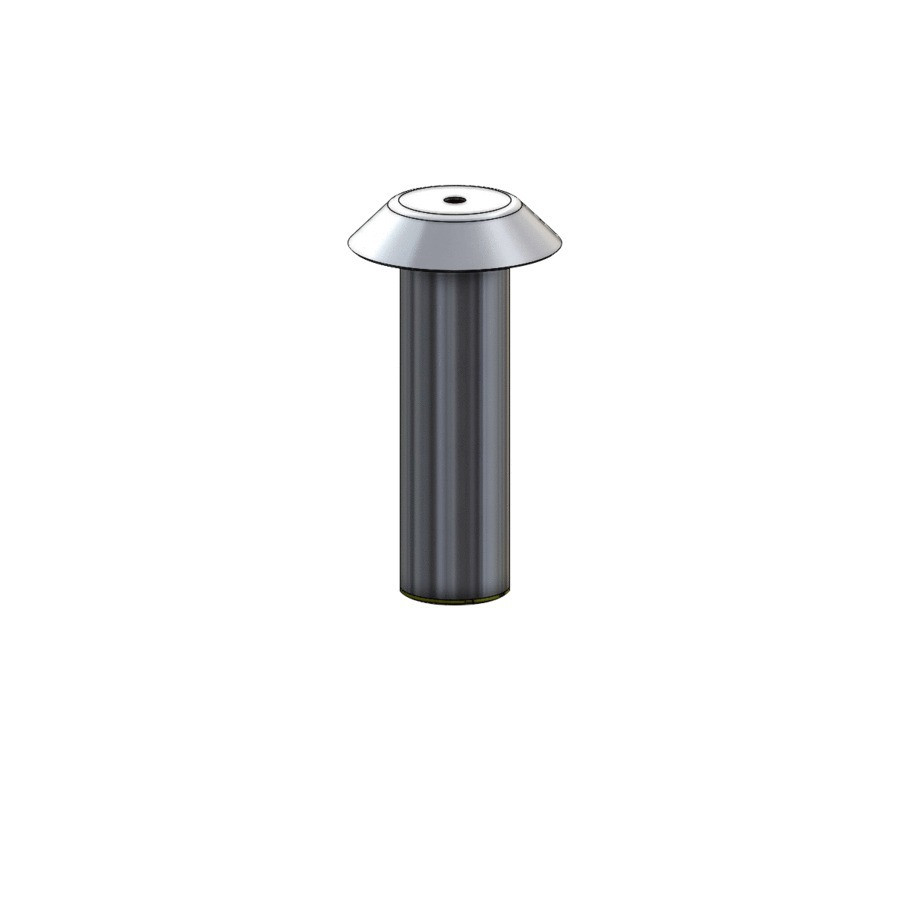

| CONEKT H100 mm diabolo standoff | |
|---|---|
| Reference : | AD |
| Quantity : |
|
| CONEKT 250 mm pivoting post | |
|---|---|
| Reference : | PB250 |
| Quantity : |
|

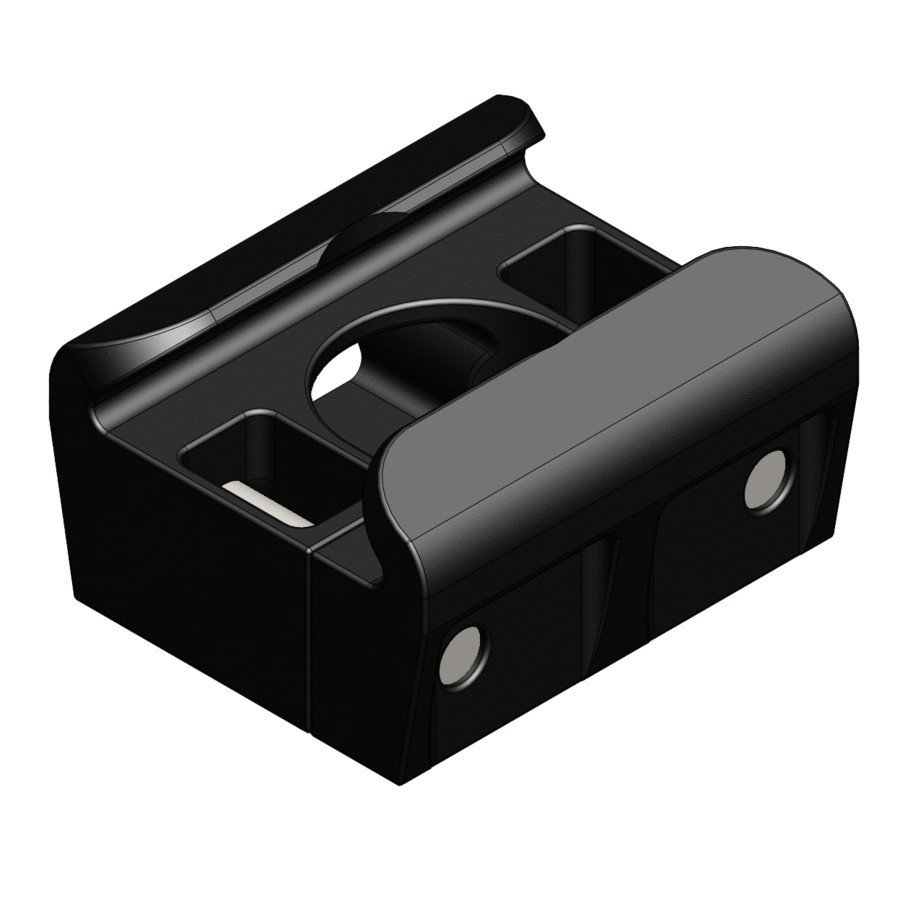

| CONEKT short rail fixing | |
|---|---|
| Reference : | R25 |
| Quantity : |
|
Use

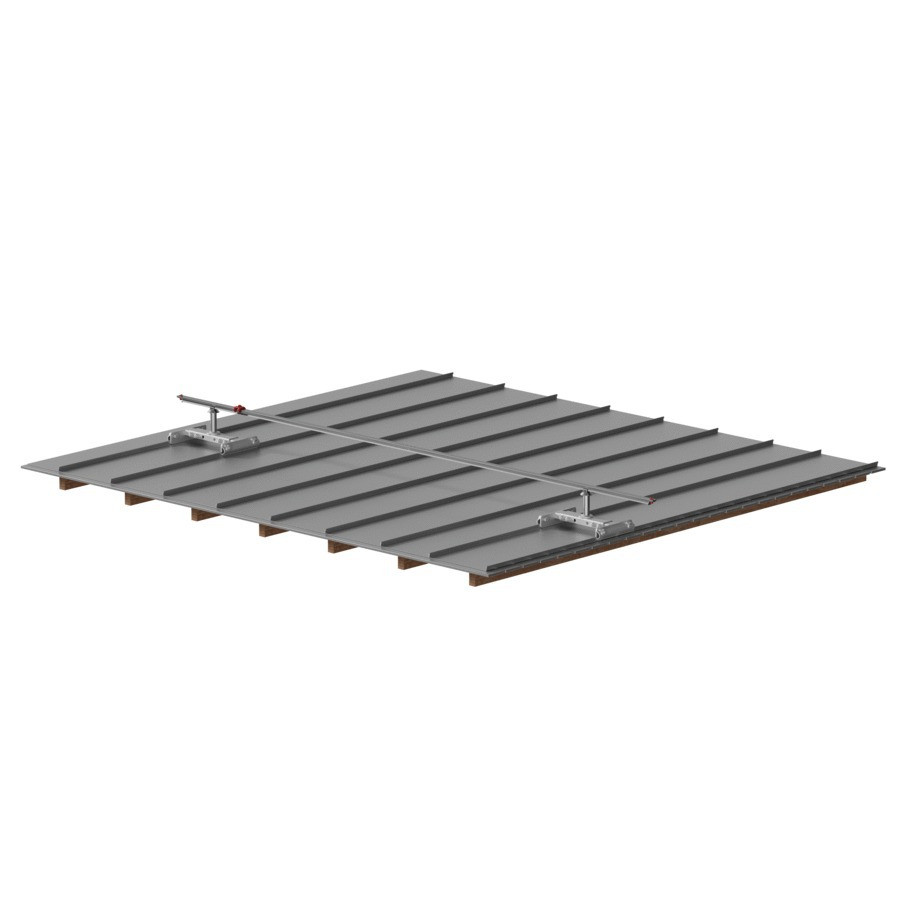

Installing a CONEKT rail lifeline on a standing seam roof is done using:
the IJDC narrow interface or the IJDL wide interface, both dedicated to this type of roof, selected according to the spacing between the standing seams
the R25 short rail fixing to attach the rail directly to the interface, or to a standoff (PB250 pivoting post or AD "diabolo") if additional height is required
Technical requirements:
Maximum spacing between fixings: 6 m
Periodic inspection at least once every 12 months
Technical description
Rigid lifeline in anodized aluminium.
CONEKT rails and lifeline components have no sharp edges that could damage lanyards or ropes.
-
![]()
