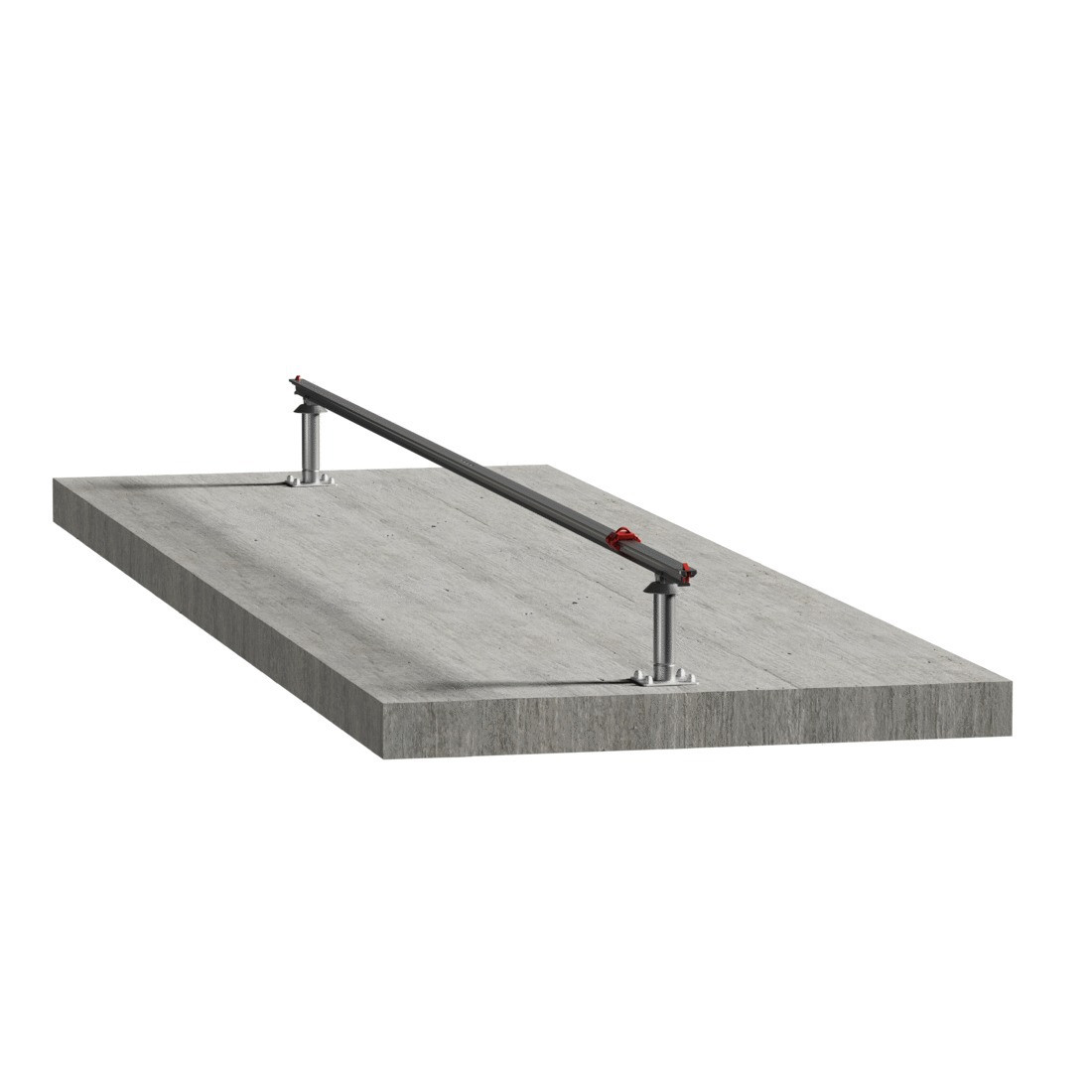

CONEKT rail lifeline for concrete slab
Warranty 5 years
The CONEKT rail lifeline lets you work safely at height. Thanks to its controlled deflection, it can easily be installed in areas with limited clearance. The rigidity of the rail also provides optimal comfort when moving along the system.
Advantages and strengths
Simple, quick-to-install range with a clean design, with no minimum distance required between fixing points and splice joints.
Technical characteristics

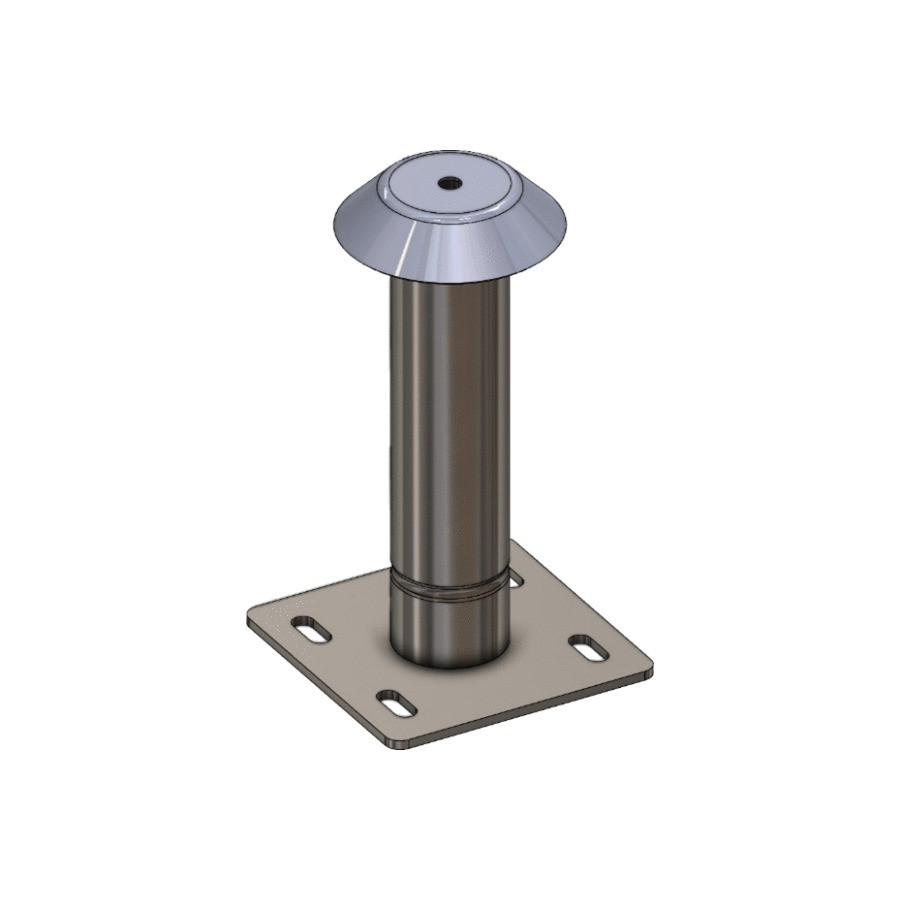

| CONEKT rigid concrete post H300 mm | |
|---|---|
| Reference : | P300 |
| Quantity : |
|

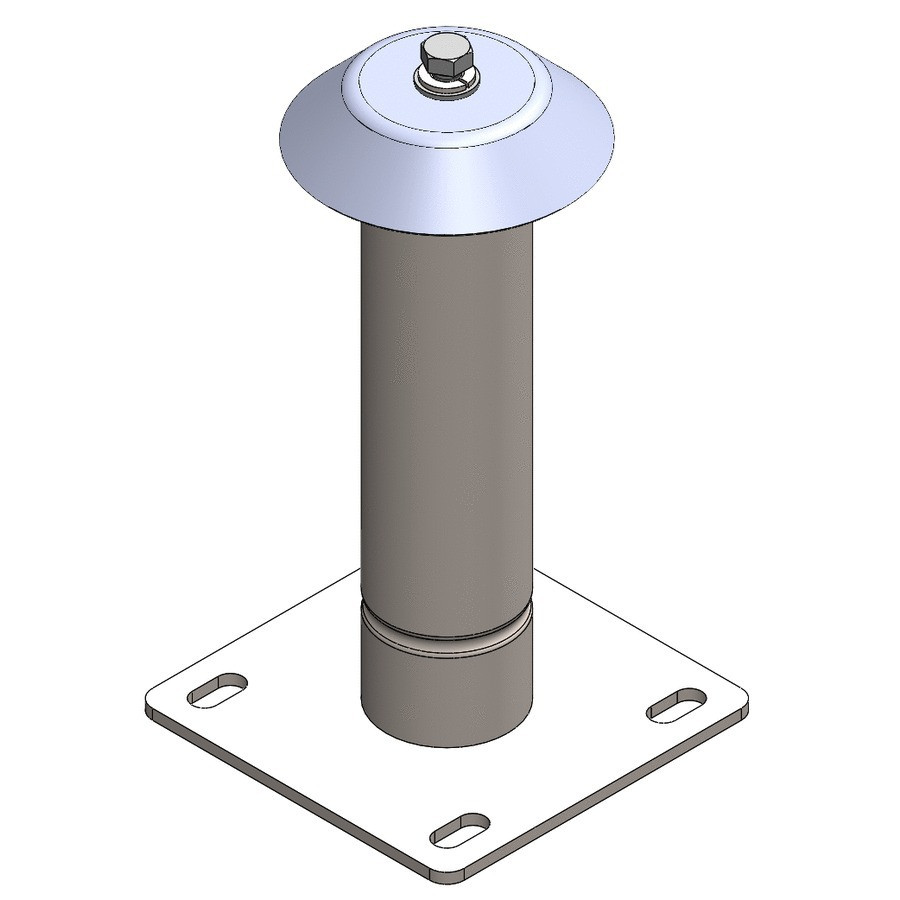

| CONEKT rigid concrete post H500 mm | |
|---|---|
| Reference : | P500 |
| Quantity : |
|

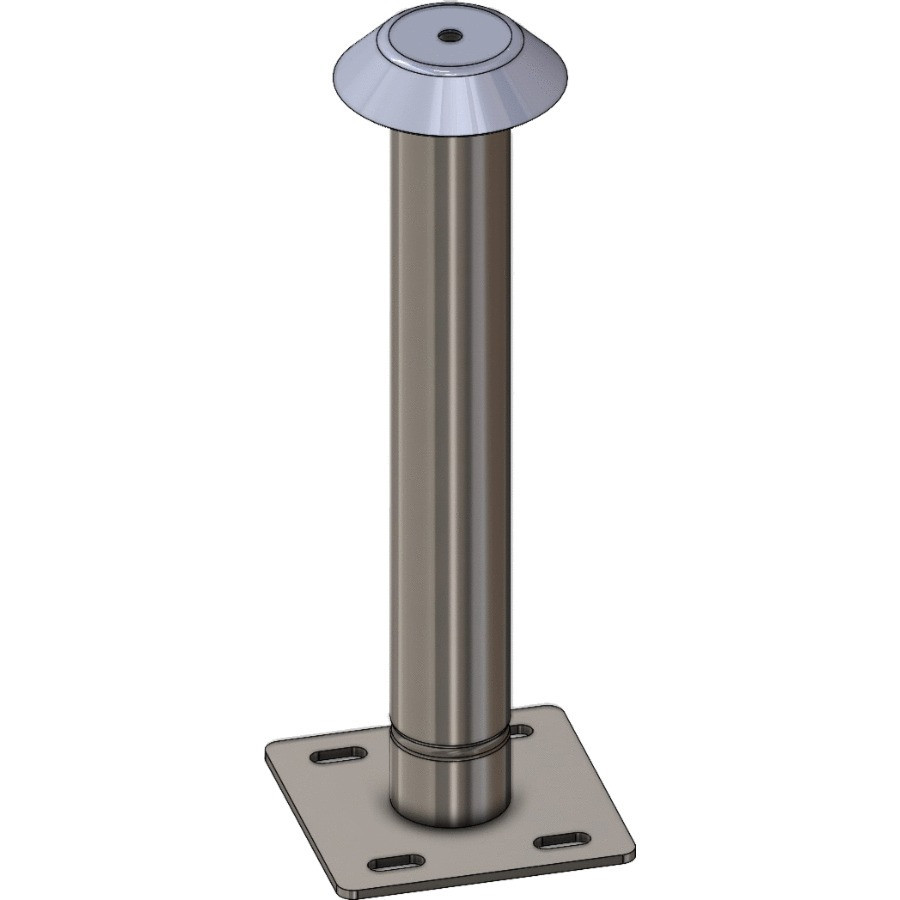

| ONEKT rigid concrete post H700 mm | |
|---|---|
| Reference : | P700 |
| Quantity : |
|

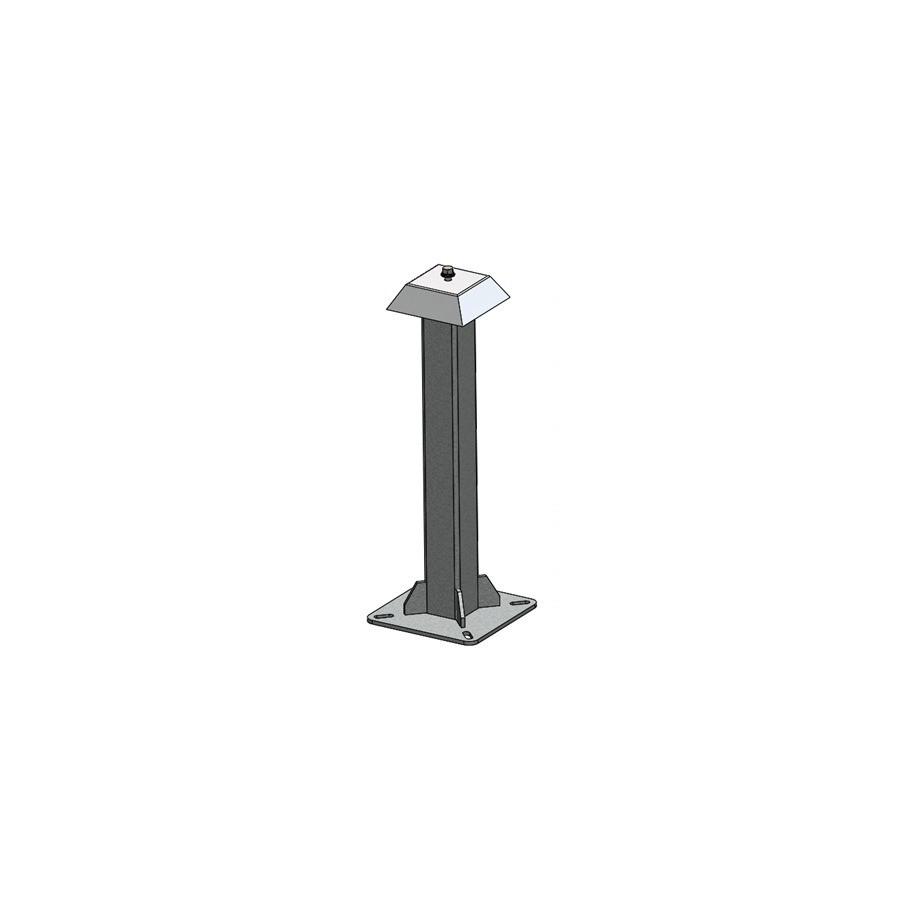

| CONEKT rigid concrete post H1000 mm | |
|---|---|
| Reference : | P1000 |
| Quantity : |
|

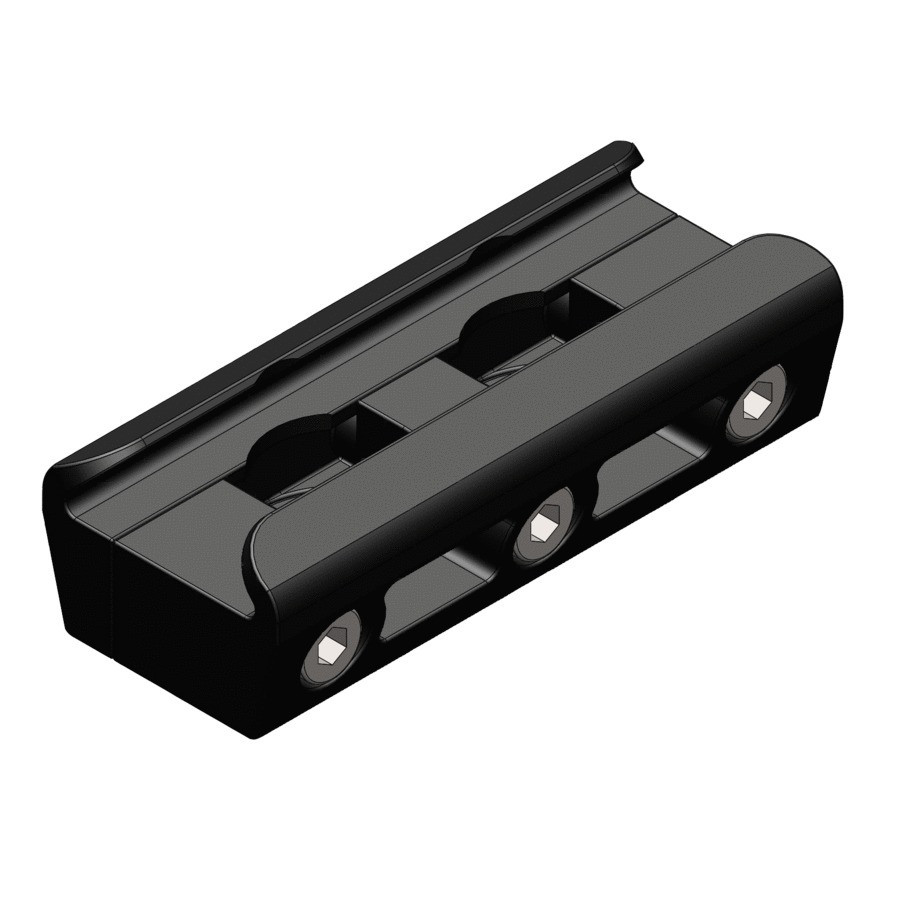

| CONEKT short rail fixing | |
|---|---|
| Reference : | R25 |
| Quantity : |
|
| CONEKT wide rail fixing | |
|---|---|
| Reference : | R25XL |
| Quantity : |
|
Use
Installing a CONEKT rail lifeline on a concrete slab is done using:
the rigid post P300 or the rigid post P500, depending on the clearance height required
the R25 short rail fixing to attach the rail directly onto the post
It is not possible to add a standoff on rigid concrete posts.
Maximum spacing between fixings: 6 m
Periodic inspection at least once every 12 months
Technical description
Rigid lifeline in anodized aluminium.
CONEKT rails and lifeline components have no sharp edges that could damage lanyards or ropes.
-
![]()
