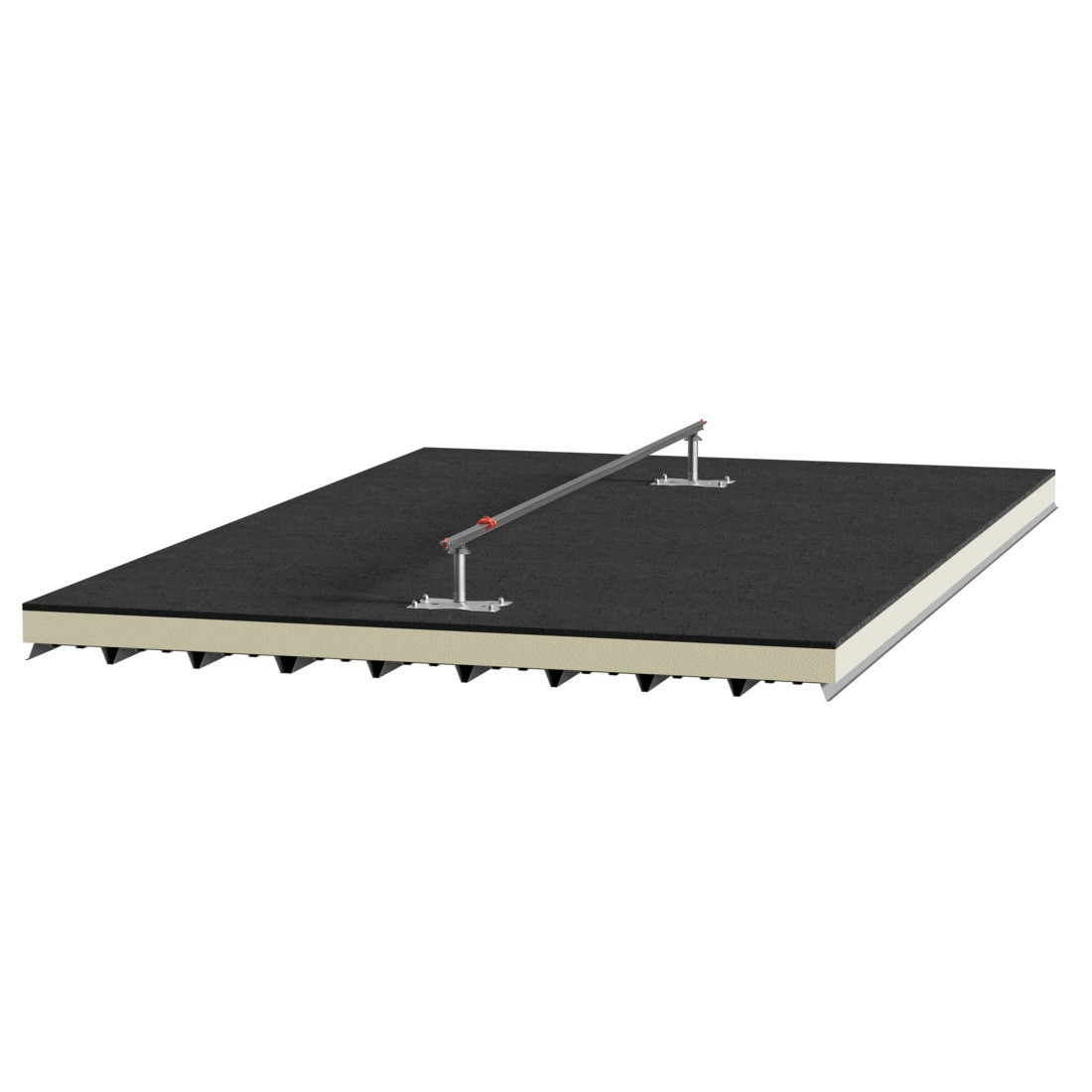

CONEKT rail lifeline for waterproofed roof deck |
Warranty 5 years
The CONEKT rail lifeline lets you work safely at height. Thanks to its controlled deflection, it can easily be installed in areas with limited clearance. The rigidity of the rail also provides optimal comfort when moving along the system.
Advantages and strengths
Simple, quick-to-install range with a clean design, with no minimum distance required between fixing points and splice joints.
Technical characteristics

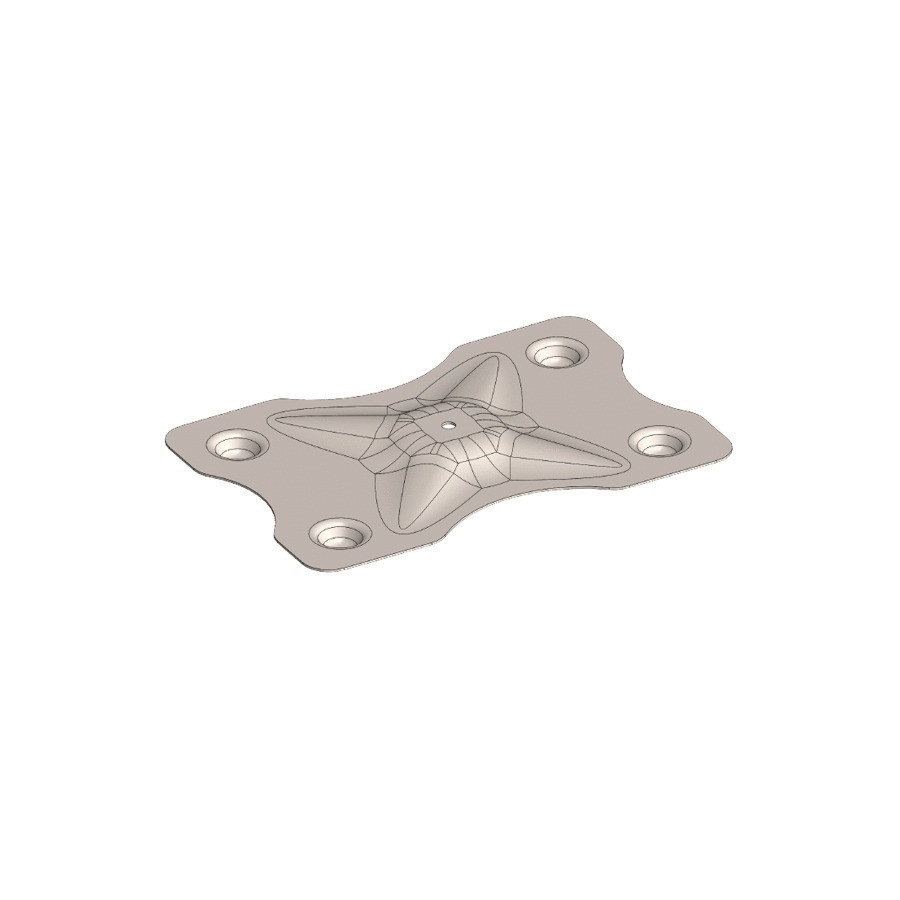

| Plate for 2 CONEKT pivot brackets | |
|---|---|
| Reference : | PB2 |
| Quantity : |
|

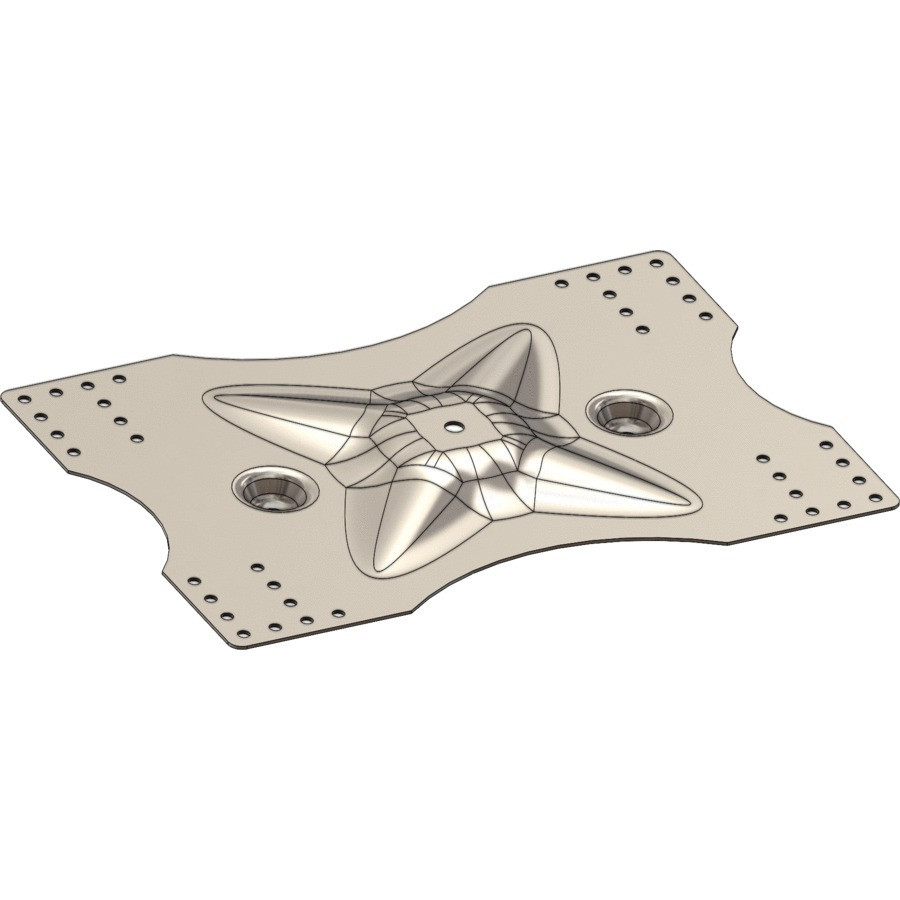

| Plate for 4 CONEKT pivot brackets | |
|---|---|
| Reference : | PB4 |
| Quantity : |
|

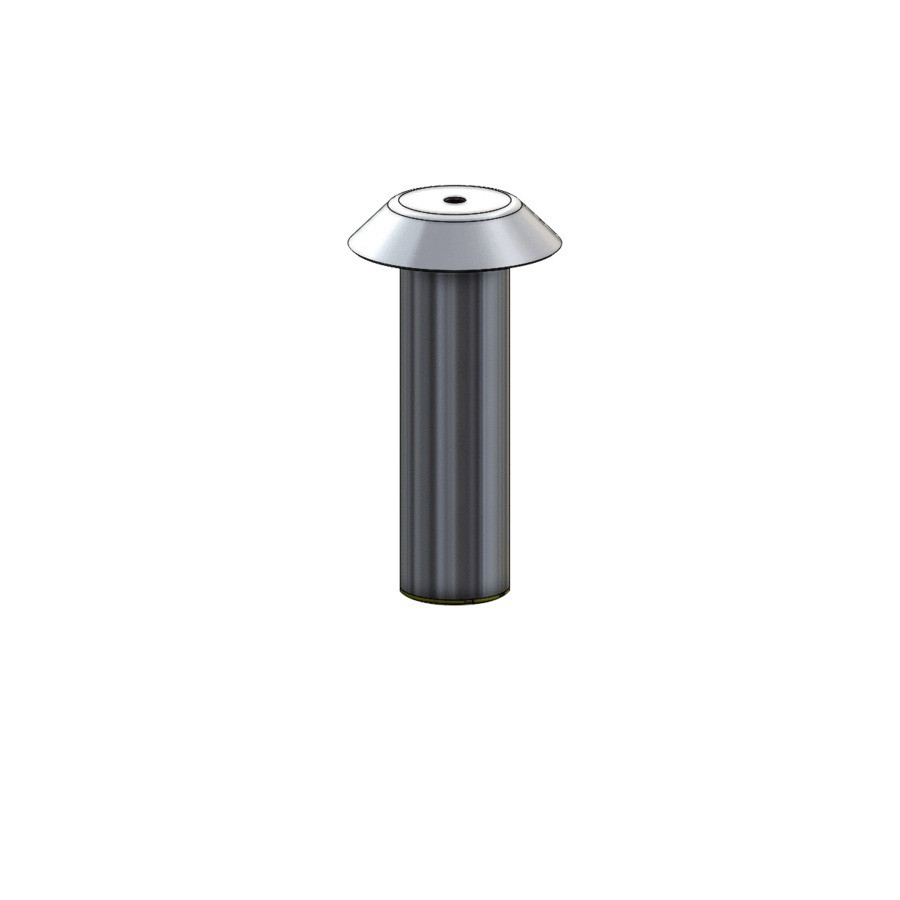

| CONEKT 250 mm pivoting post | |
|---|---|
| Reference : | PB250 |
| Quantity : |
|

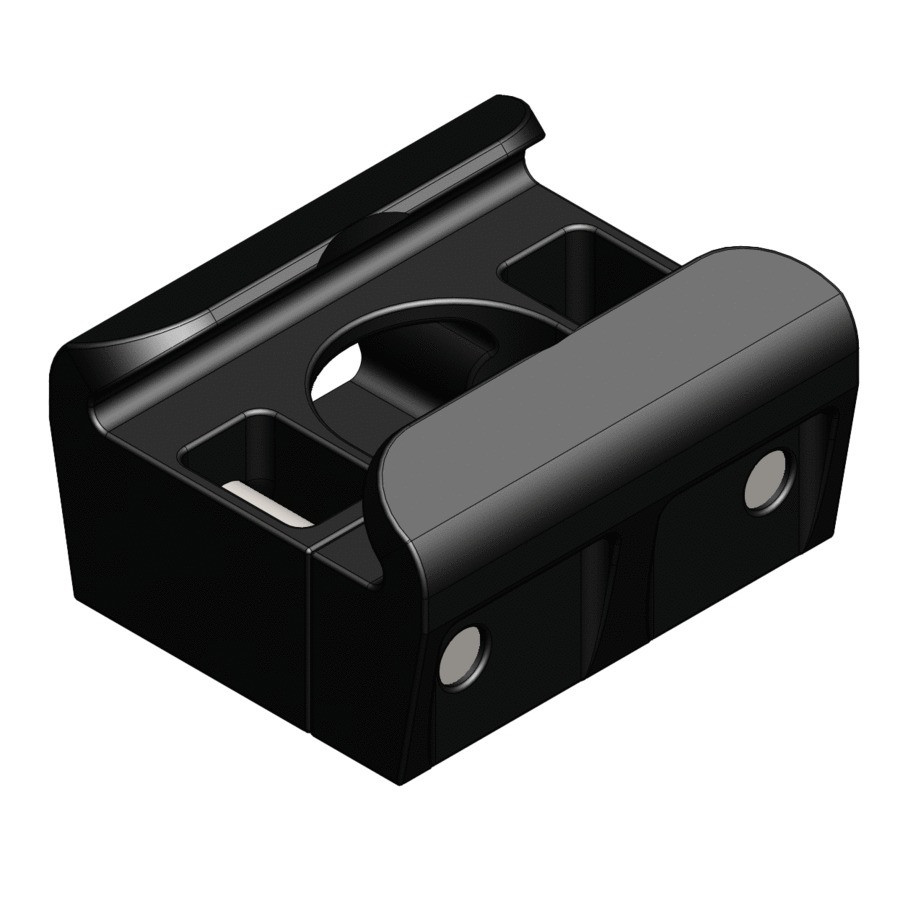

| CONEKT short rail fixing | |
|---|---|
| Reference : | R25 |
| Quantity : |
|

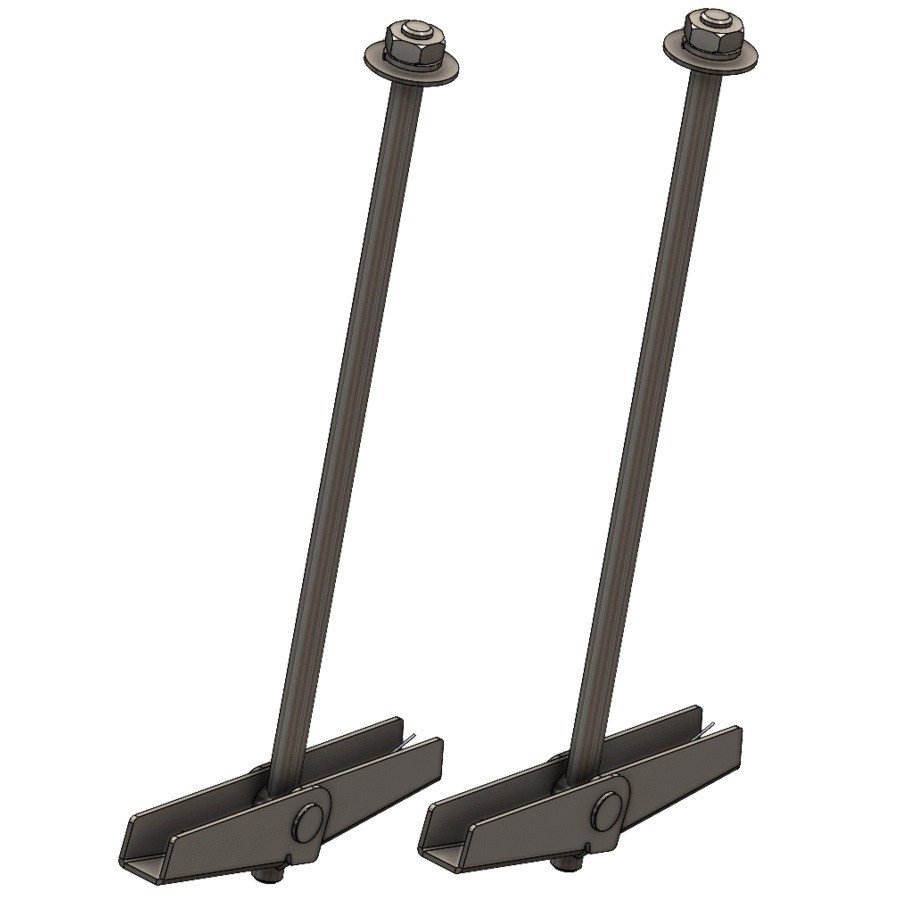

| Pack of 2 zinc-plated steel toggle anchors L 300 mm CONEKT | |
|---|---|
| Reference : | B300 |
| Quantity : |
|
| Pack of 2 zinc-plated steel toggle anchors L 500 mm CONEKT | |
|---|---|
| Reference : | B500 |
| Quantity : |
|
| Pack of 2 stainless steel toggle anchors L 300 mm CONEKT | |
|---|---|
| Reference : | B300 INOX |
| Quantity : |
|
| Pack of 2 stainless steel toggle anchors L 500 mm CONEKT | |
|---|---|
| Reference : | B500 INOX |
| Quantity : |
|
Use
The CONEKT rail lifeline lets you work safely at height. Thanks to its controlled deflection, it can easily be installed in areas with limited clearance. The rigidity of the rail also provides optimal comfort when moving along the system.
Installing a CONEKT rail lifeline on a waterproofed roof deck is done using:
the PB2 base plate or the PB4 base plate, selected according to the type of substrate
the R25 short rail fixing and the PB250 pivoting post to secure the rail onto the plate
Technical requirements:
Thickness ≥ 0.63 mm
Maximum spacing between fixings: 6 m
Maximum 4 users simultaneously
Periodic inspection at least once every 12 months
Technical description
Rigid lifeline in anodized aluminium.
CONEKT rails and lifeline components have no sharp edges that could damage lanyards or ropes.
-
![]()
