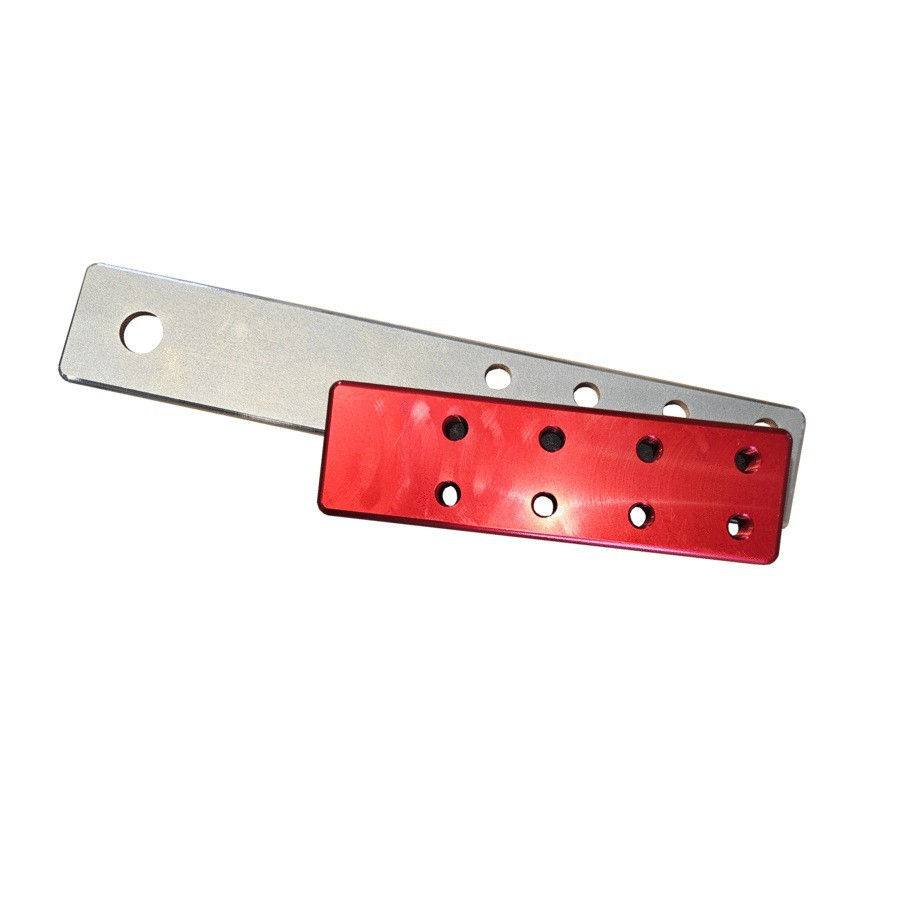

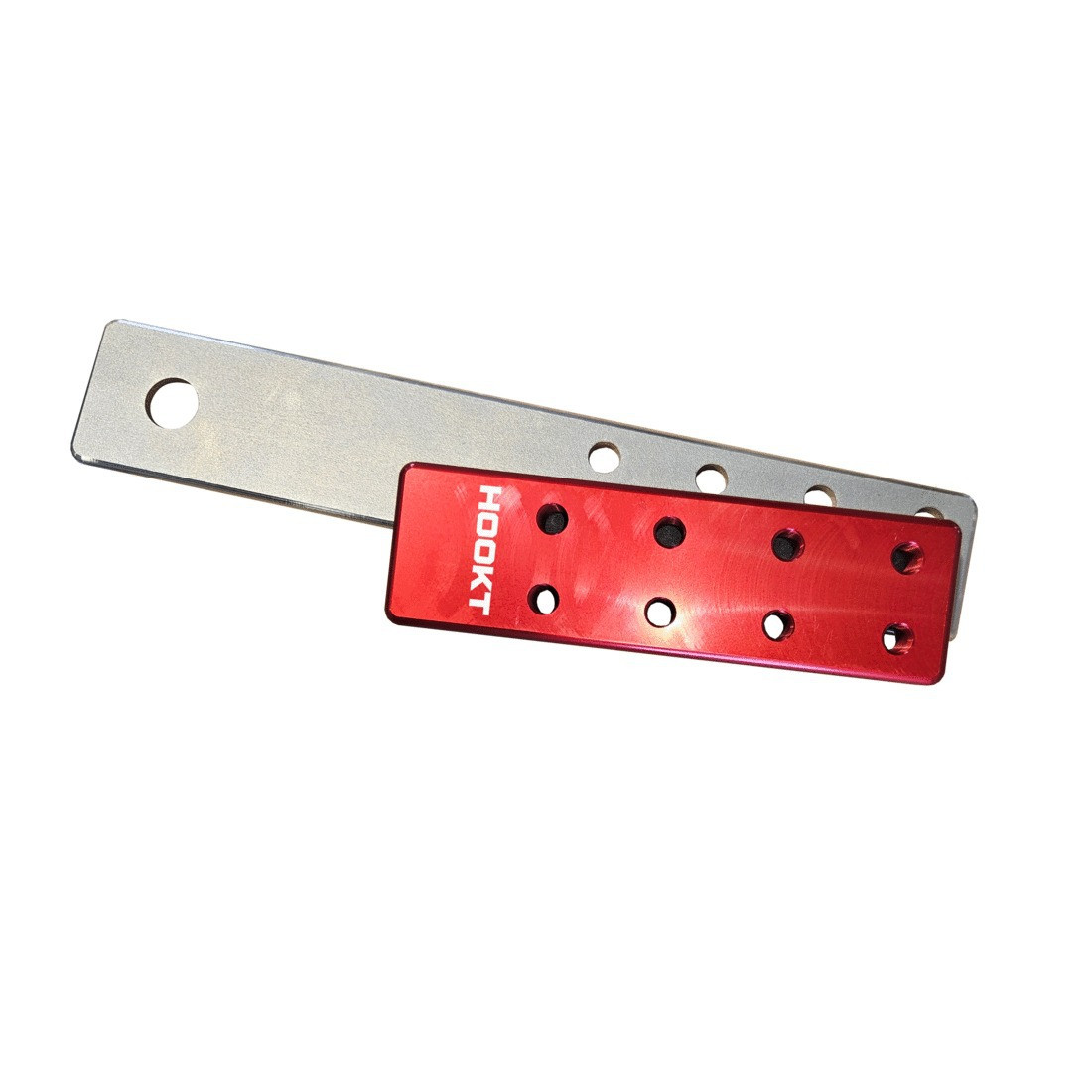

SUPER RANGE Long-reach Multi-purpose Anchor
Pack designed for long spans from 20 to 34 meters
Use
SUPER RANGE enables tensioned work thanks to a machined design that delays cable slippage.
Certified for 3 users. Allows one user to work under tension.
Base plate material: 316L stainless steel
Matrix material: aluminium
Fastening: 8 M10 bolts. Tighten fully against the base plate using a high-strength thread-locking adhesive.
INSTALLATION PROCEDURE
1. Check the condition of the anchorage support structure and the cable.
2. Install the base plate onto its supporting structure.
3. Position the 10 mm (0.39 in) lifeline cable inside.
WARNING: The hook must be able to pass freely. The service life of the equipment depends on the quality of the supporting structure and environmental conditions. An inspection at least every 12 months is required. Cable tension: 300 kg (661 lb).
Technical description
INSTALLATION PROCEDURE
1. Check the condition of the anchorage support structure and the cable.
2. Install the base plate onto its supporting structure.
3. Position the 10 mm (0.39 in) lifeline cable inside.
WARNING: The trolley hook must be able to pass freely. The service life of the equipment depends on the quality of the supporting structure and the environmental conditions. An inspection at least every 12 months is required. Cable tension: 300 kg (661 lb).
