Technical characteristics

Reference	Quantity	Quote
Ref. PB250 Code A0014093 CONEKT Tilting Post H250mm	Quantité maximum disponible pour ce magasin + -

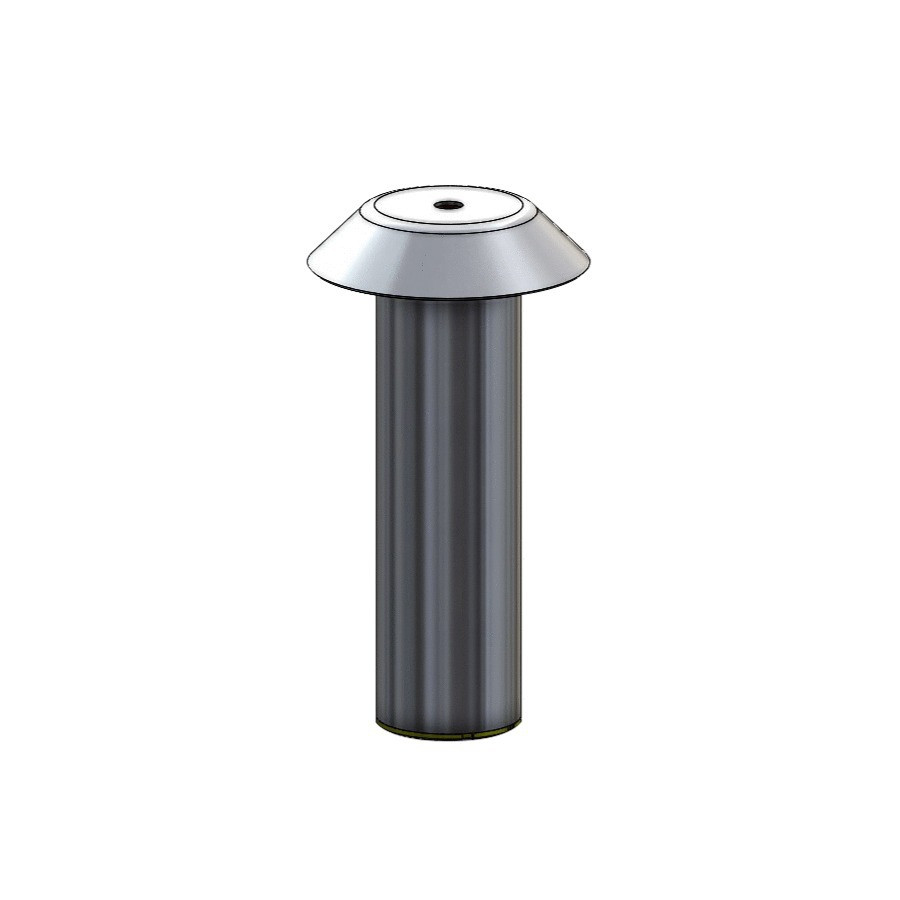

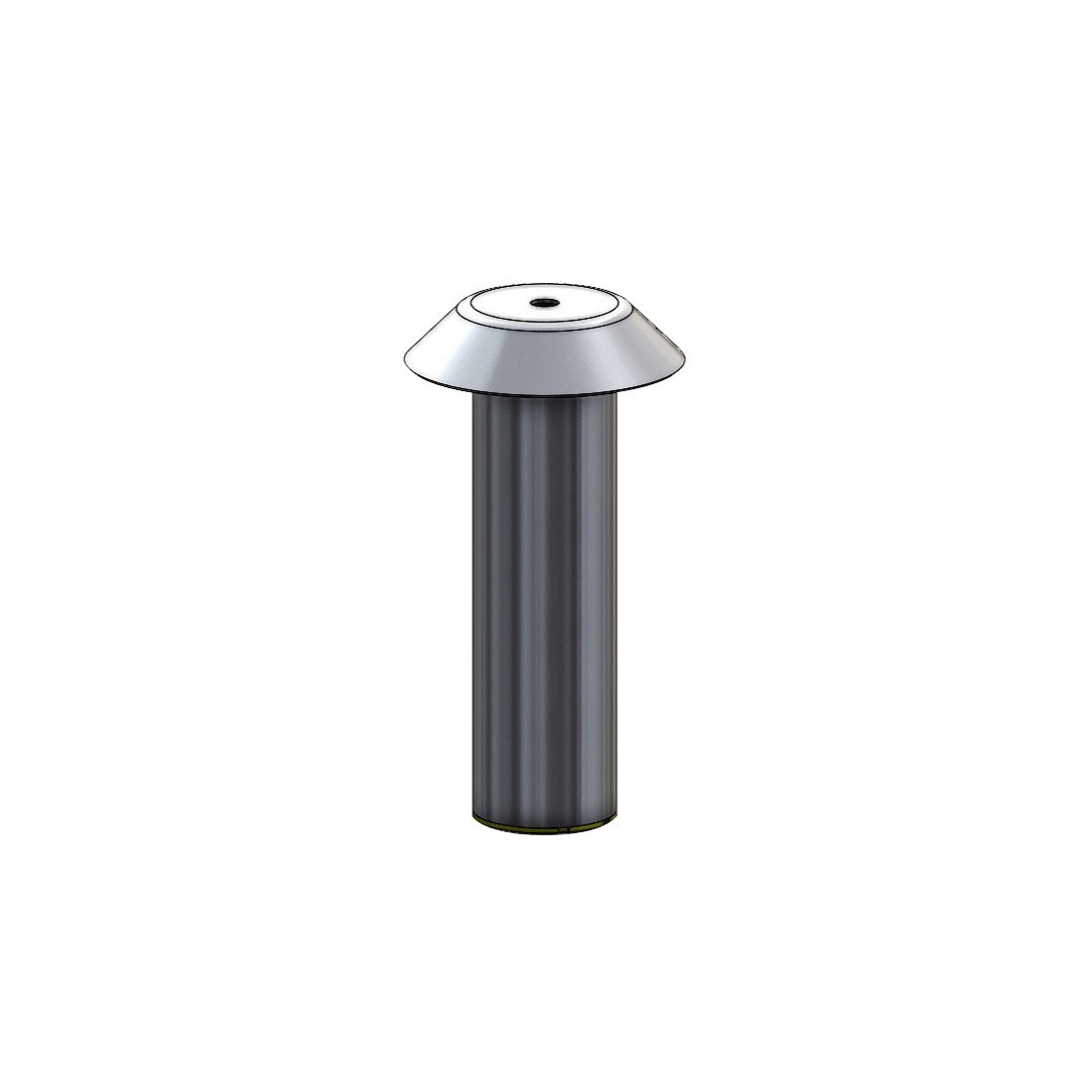

CONEKT Tilting Post H250mm
Reference :	PB250
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

This post is installed using a set of 2 toggle bolts on waterproofing support deck sheets (excluding perforated ones). Two standard toggle lengths are available: 300 mm (ref. B300) and 500 mm (ref. B500).

When a force exceeding 170 daN is applied to the top of the post, the breakaway elements rupture, and the post extends by 4 cm. The aluminium tube is "released" and the M12 rod bends. This system helps reduce torque effects and ensures the strength of the fixings on roof coverings.

As a result, the deflection of the lifeline increases significantly. It is therefore recommended to reduce the spacing between anchor points to limit this deflection. A maximum spacing of 10 m is recommended.

Composition: S235 steel + hot-dip galvanisation; aluminium tube and collar

Resistance: Breakaway rupture: 170 daN / Post resistance: 2500 daN

Weight: 1.5 kg

Technical description

Composition: S235 steel + hot-dip galvanisation; aluminium tube and collar included

Weight: 1.5 kg
