CONEKT rigid concrete posts

Use

4 possible heights for straight rigid posts: 300, 500, 700 and 1000 mm

1 height available for the L-shaped rigid post: 700 mm with a wall offset of 23 cm (at the edge of the collar)

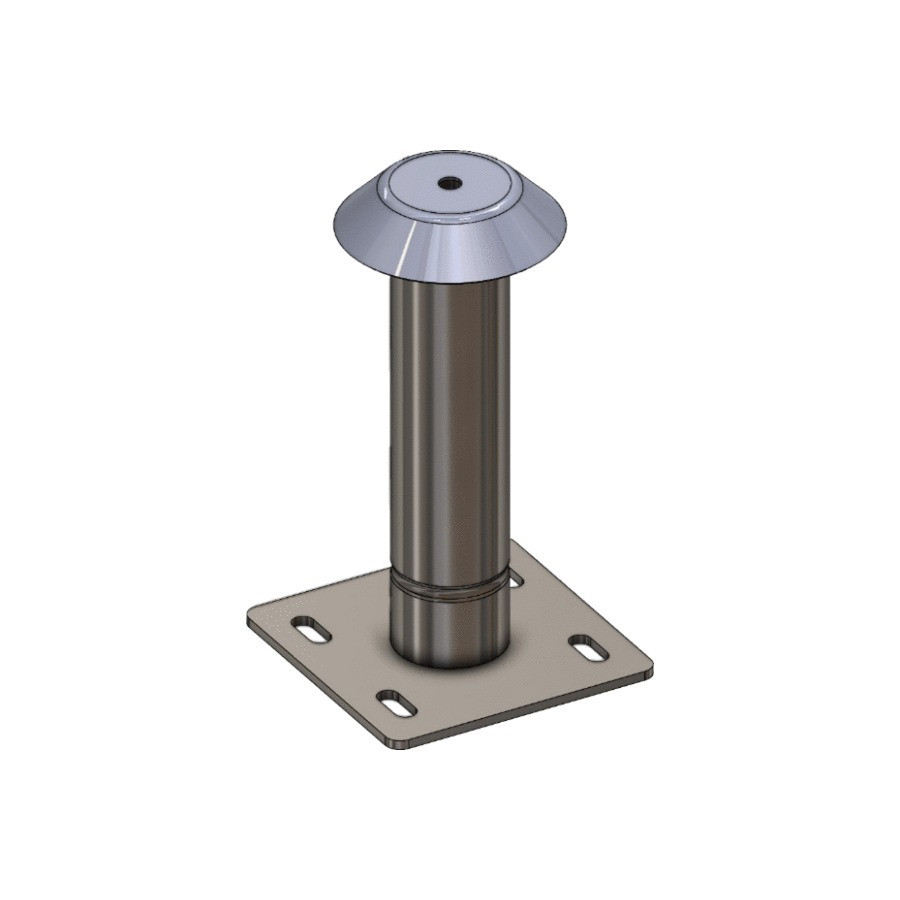

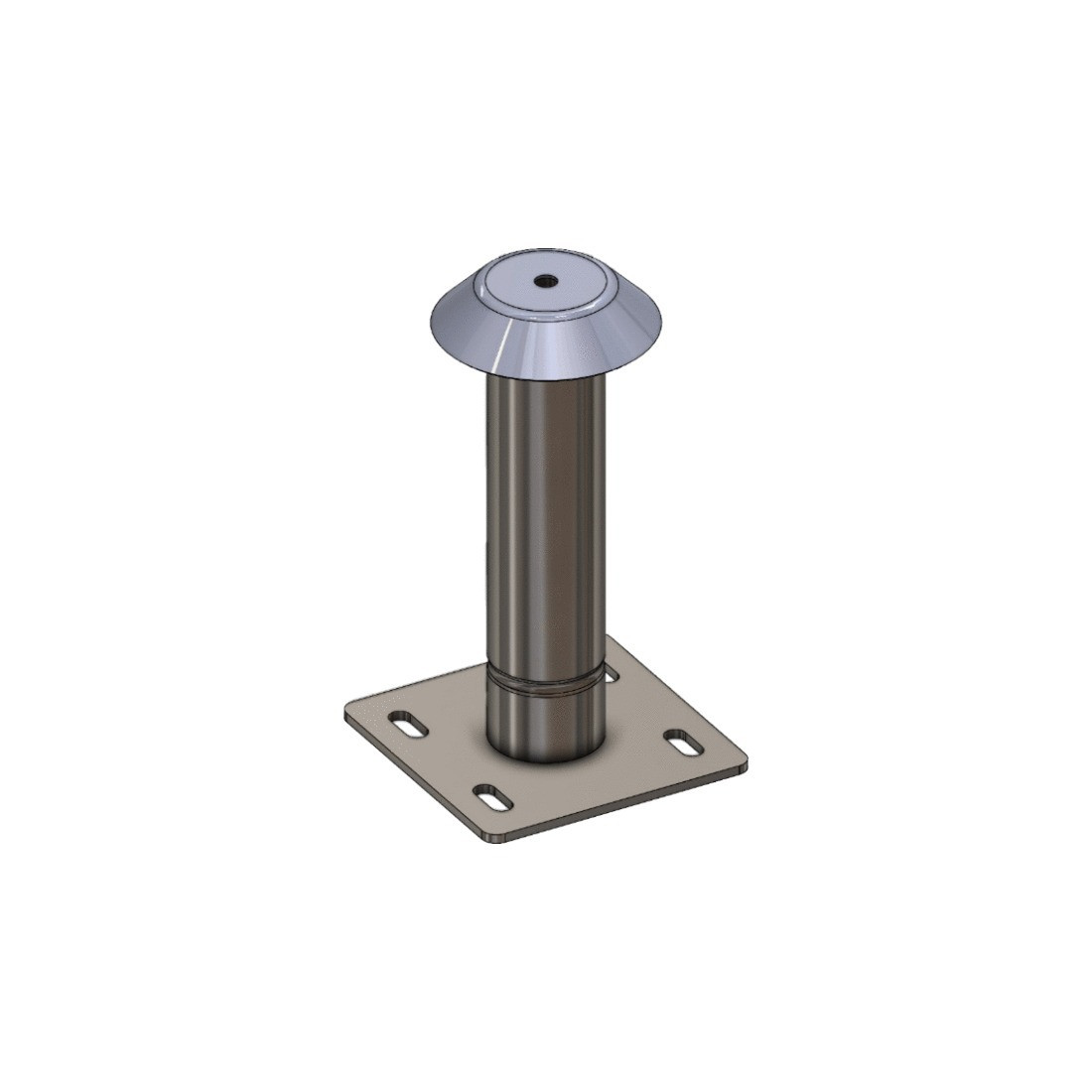

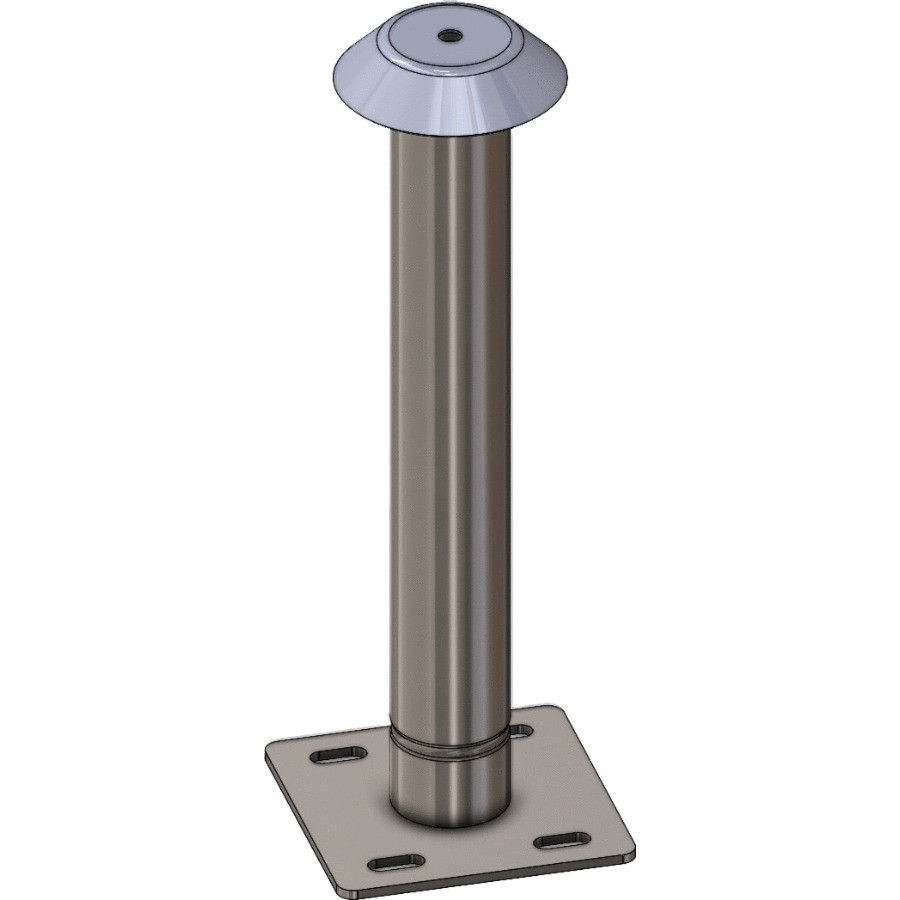

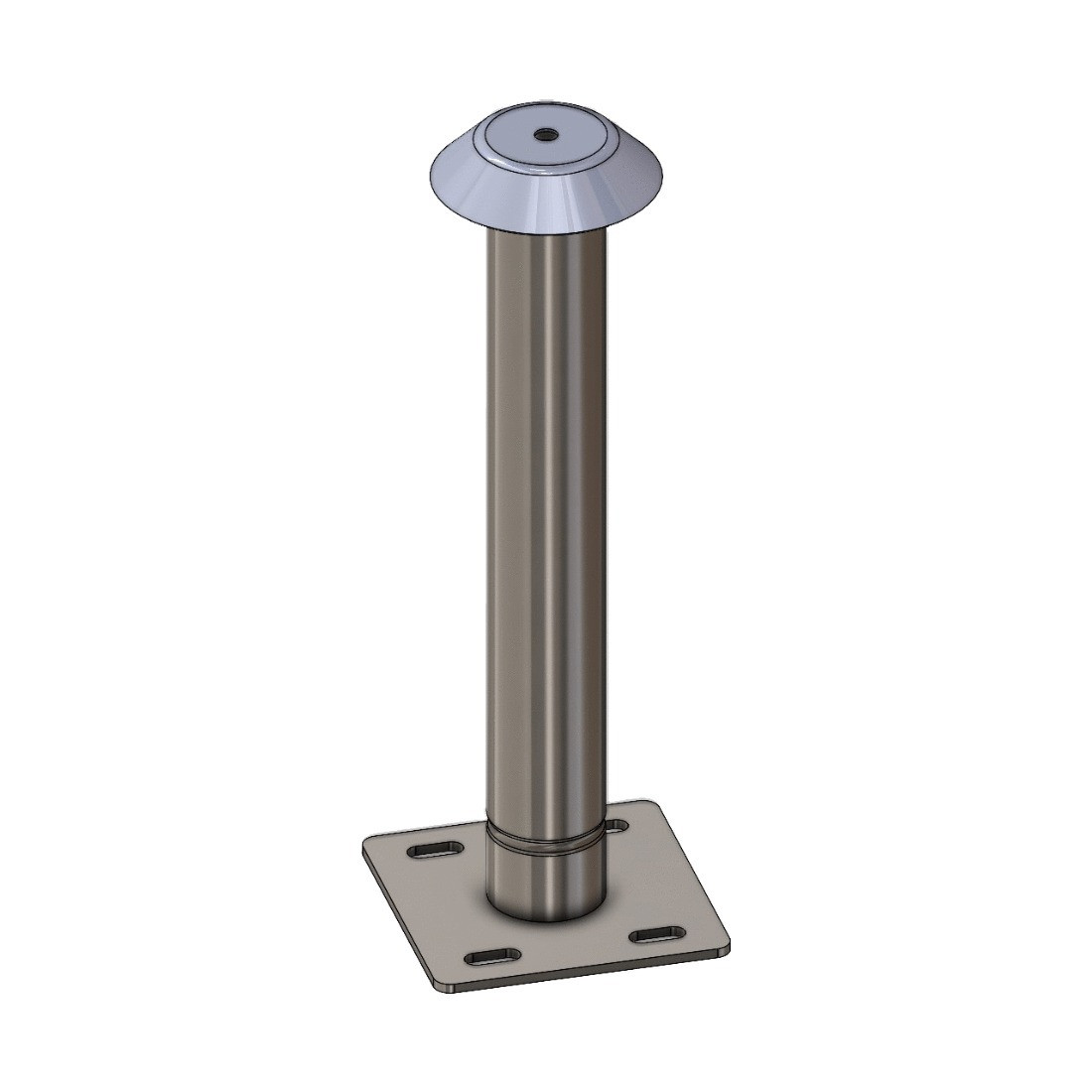

The P300 and P500 posts are round Ø70 mm with a groove at the bottom of the tube to control deformation and protect the sensitive weld area. They allow clamping on supports from 80 to 125 mm wide*

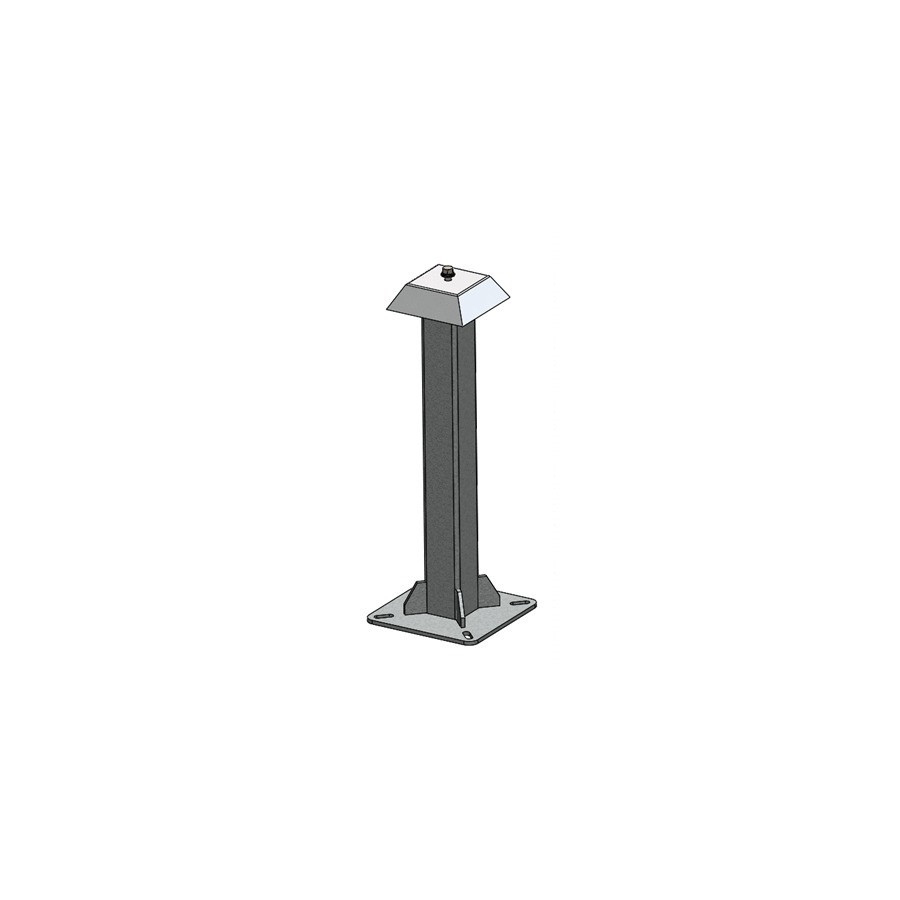

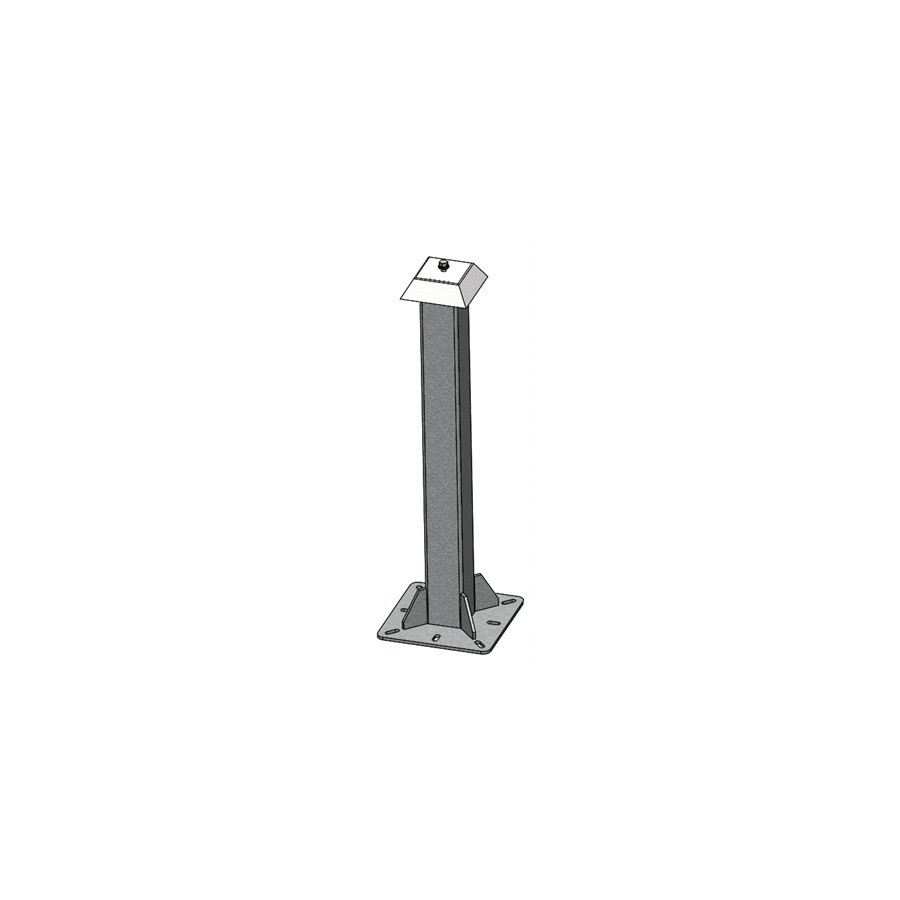

The P700 and P1000 posts are square, with cross-sections of 80 mm and 100 mm respectively. They allow clamping on supports from 80 to 195 mm and from 100 to 235 mm wide respectively*

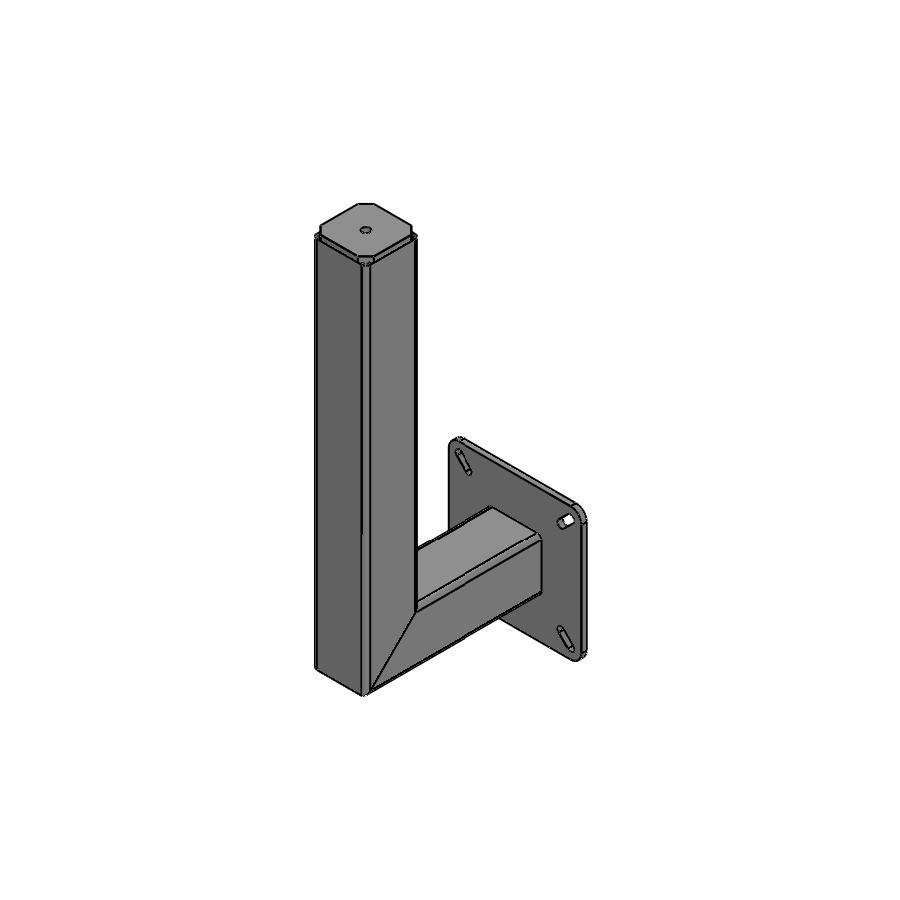

The L-shaped PL700 post is square with a 100 mm section. It allows clamping on supports from 100 to 235 mm wide*

These rigid posts are designed to accommodate CONEKT rail and cable lifelines as well as any CONEKT brand anchorage point compliant with NF EN 795 type A, C or D.

* subject to approval by the design office

Collars are delivered disassembled, to be assembled with supplied M12 screws and washers.

In case of concrete fixing, M12 stainless steel chemical anchors should be used, such as HVU HAS type.

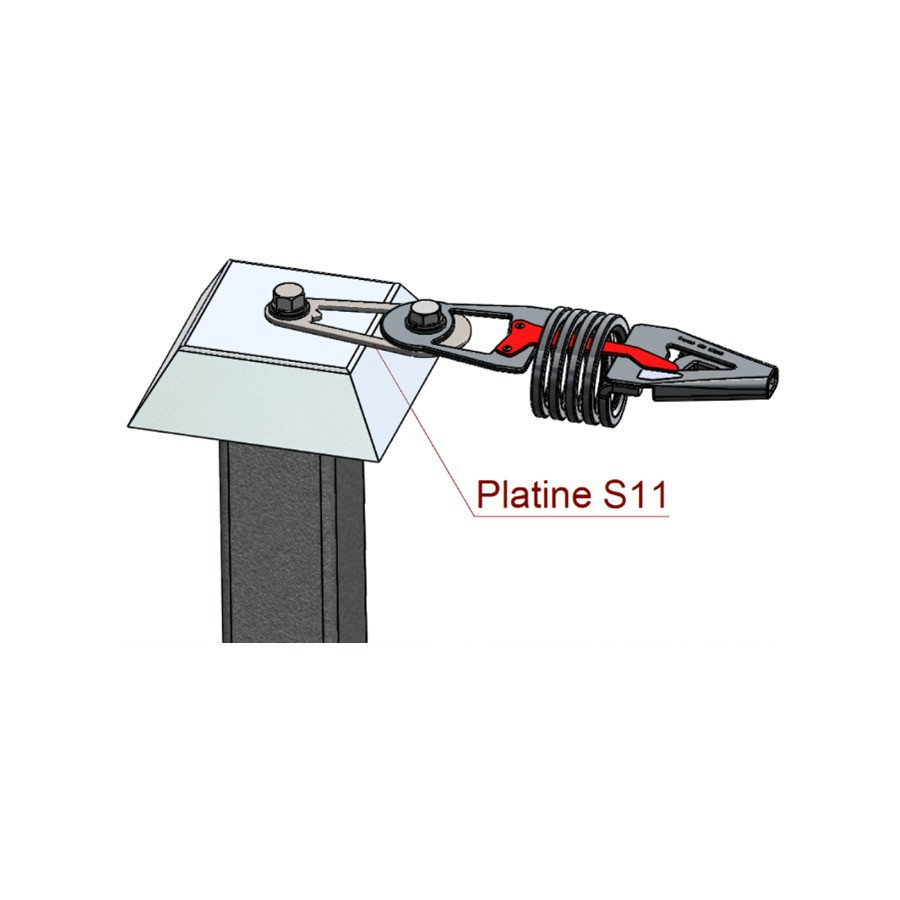

The connection between a P700, P1000 or PL700 post and a CONEKT energy absorber requires an S11 base plate.
