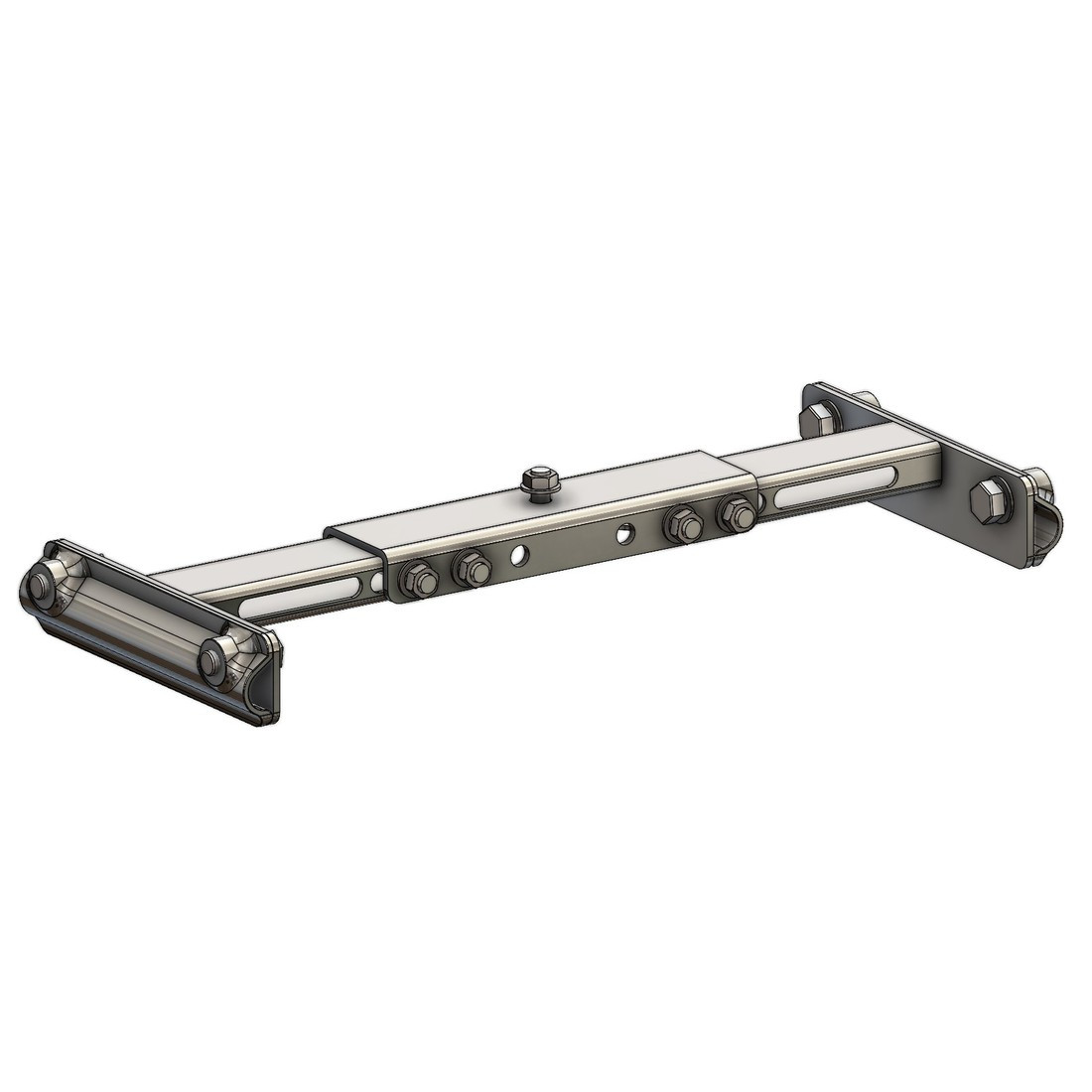

The ICJD lifeline interface is compatible with most standing seam roofs in zinc, aluminium and steel.
Select your reference
CONEKT Interfaces for standing seam roof
Technical characteristics
| Reference | Quantity | Quote |
|---|---|---|
|
Ref. ICJD S Code A0014294
Short Interface for Standing Seam Roof CONEKT
|
|
|
|
Ref. ICJD L Code A0014105
Wide Interface for Standing Seam Roof CONEKT
|
|
| Short Interface for Standing Seam Roof CONEKT | |
|---|---|
| Reference : | ICJD S |
| Quantity : |
|
| Wide Interface for Standing Seam Roof CONEKT | |
|---|---|
| Reference : | ICJD L |
| Quantity : |
|
Use

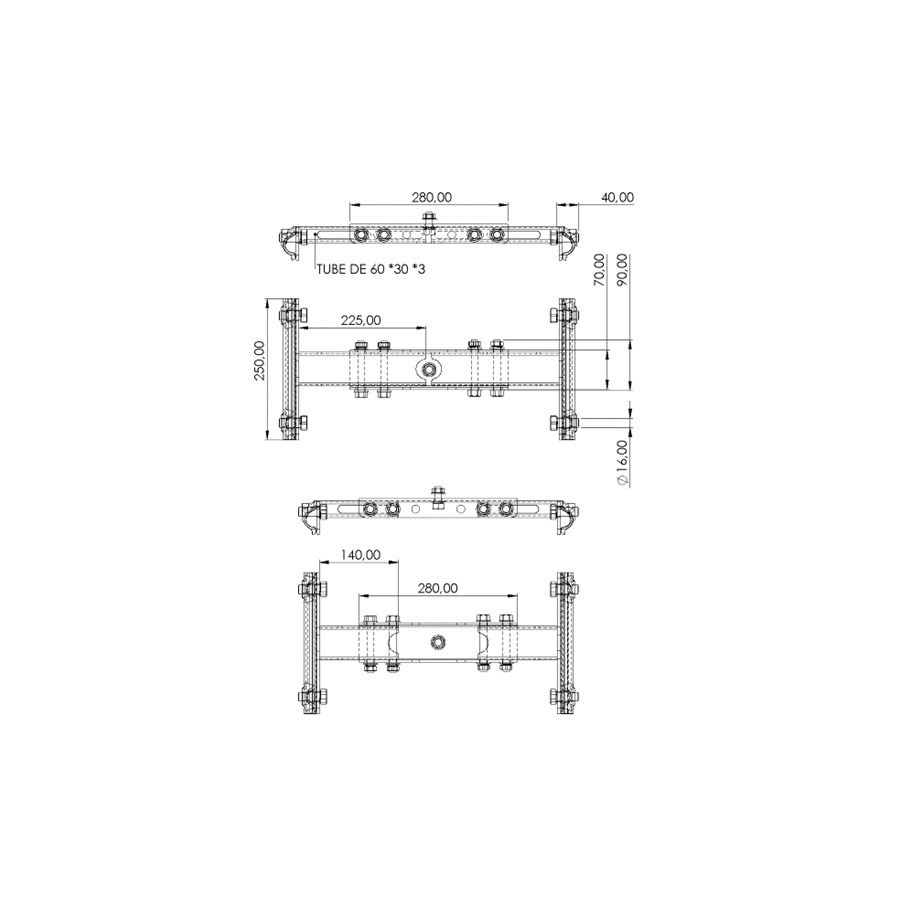

The interface comes in two versions:
- ICJD S designed to fit seam spacings from 290 mm to 430 mm.
- ICJD L designed to fit seam spacings from 460 mm to 600 mm.
The AD diabolo riser or PB250 pivoting posts can be installed on the interface to raise the lifeline. These components are essential at the beginning of the lifeline to position the S03 energy absorber or the S04 tensioner.
Technical description
Material: S235 steel + hot-dip galvanisation
Weight: 6.2 kg
