CONEKT Interface on Zinc Roof

Warranty 5 years

Standard: EN795:2012

The ICZ interfaces are specifically developed for installing CONEKT fall protection systems on zinc roofs. This product is ideal for securing fall protection on traditional Parisian Haussmann-style zinc rooftops.

Select your reference

Quantity

Technical characteristics

Reference	Quantity	Quote
Ref. ICZ Code A0014104 CONEKT Interface on Zinc Roof	Quantité maximum disponible pour ce magasin + -

CONEKT Interface on Zinc Roof
Reference :	ICZ
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

The ICZ interfaces are specifically developed to install CONEKT fall arrest systems on zinc roofs. This product is ideal for securing fall protection on Haussmann-style Parisian zinc roofs.

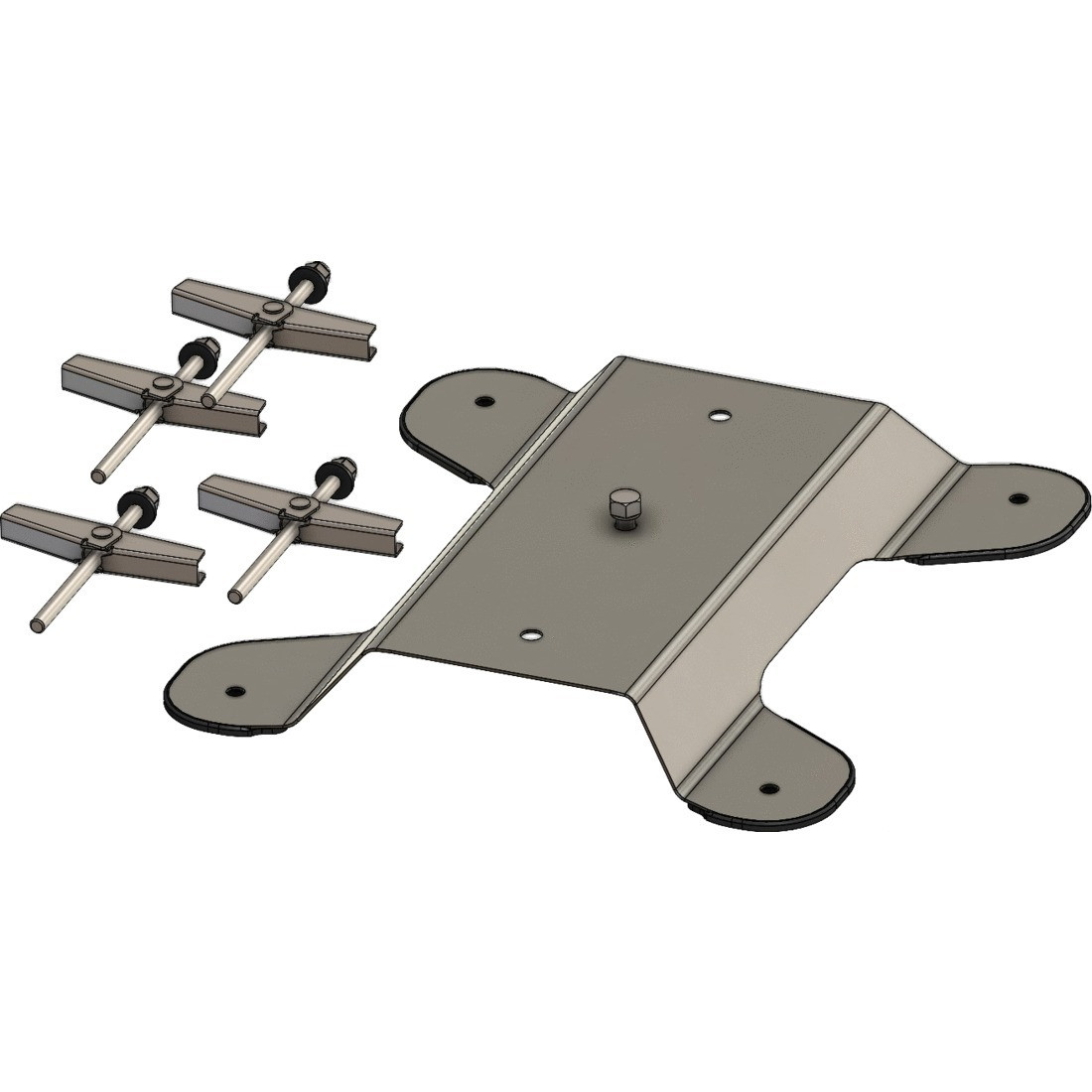

These plates are installed using four M10 toggle bolts in 304 stainless steel.

The interface is supplied with: stainless steel cap nuts, a sealing washer, and four EPDM gaskets.

The installation is carried out directly on the waterproofing complex without any underside intervention. The AD diabolo or PB250 tilting posts can be mounted on the interface to raise the lifeline. They are essential at the beginning of the lifeline to position the S03 absorber or the S04 tensioner.

Technical description

Composition: S235 steel + hot-dip galvanization

Weight: 4.6 kg
