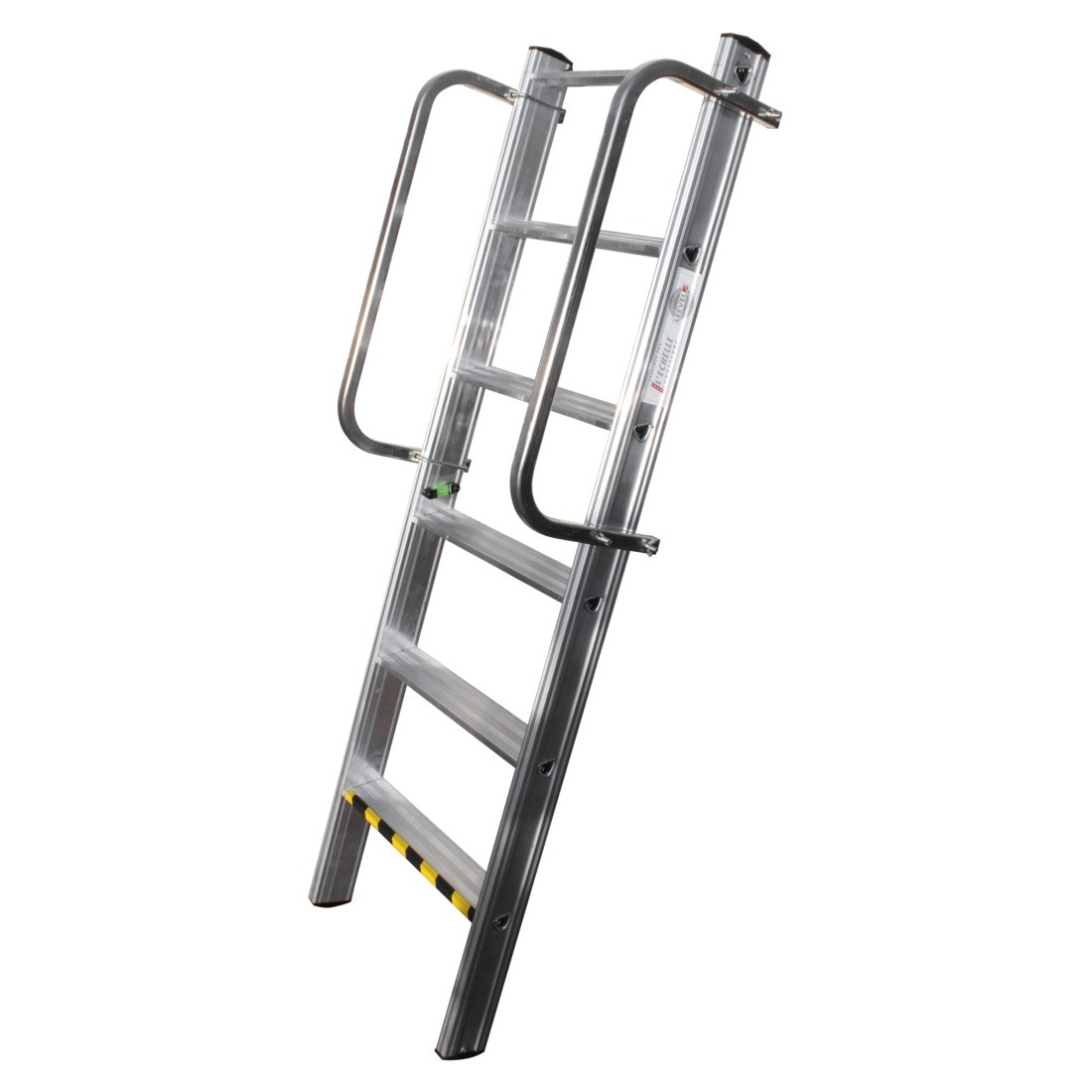

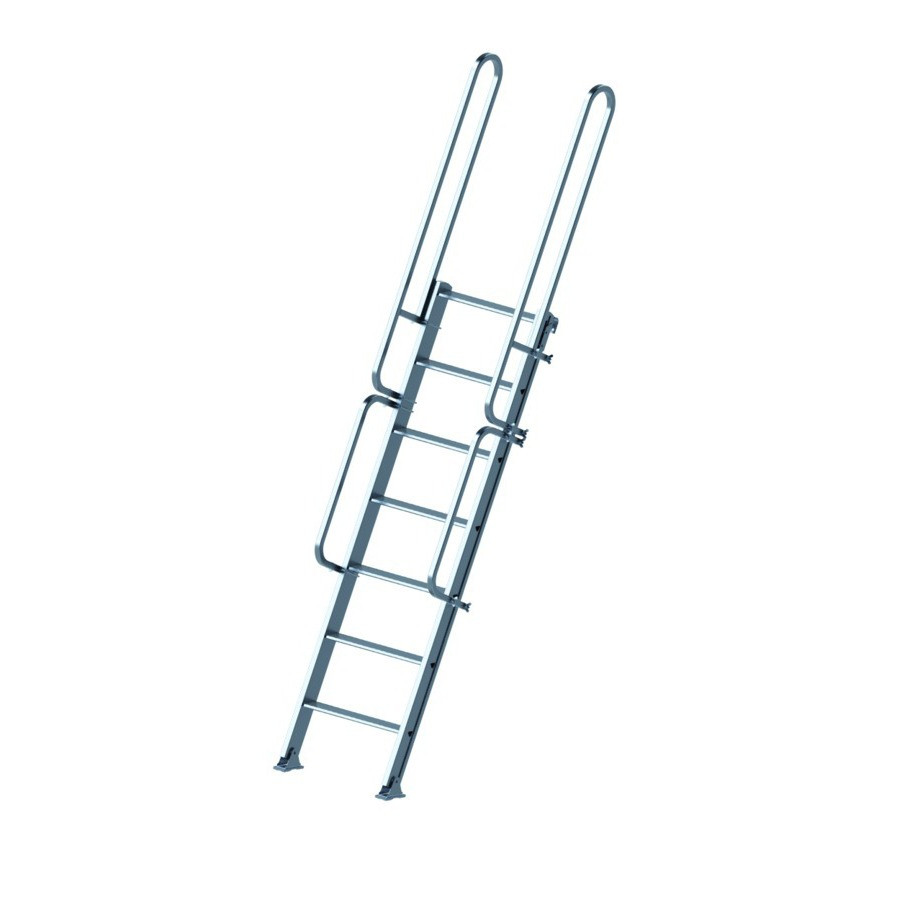

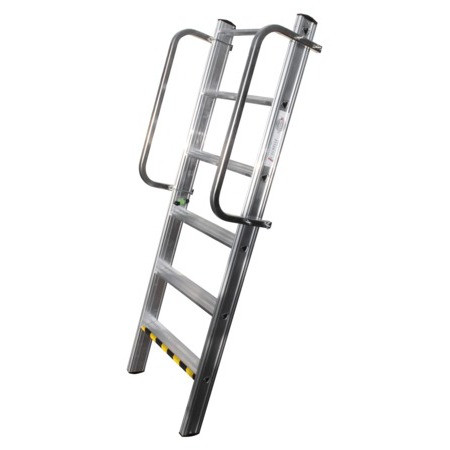

Access ladder with 80 mm deep steps

Warranty 1 year

STEP WIDTH 450 mmIdeal for low-frequency access or for installations with limited floor space. Provides access to heights ranging from 1.27 m to 3.77 m.

Select your reference

Quantity

Advantages and strengths

Wide width for a better comfort of access.

Technical characteristics

Reference	Number of walking	Stabilizer	Matiére	Quantity
Ref. LEEVEL80505RL Code A0007184 80 MM DEEP ACCESS STEP LADDERS 5 STEPS	5	Non	Aluminium	Quantité maximum disponible pour ce magasin + -
Ref. LEEVEL80506RL Code A0007185 80 MM DEEP ACCESS STEP LADDERS 6 STEPS	6	Non	Aluminium	Quantité maximum disponible pour ce magasin + -
Ref. LEEVEL80507RL Code A0007186 80 MM DEEP ACCESS STEP LADDERS 7 STEPS	7	Non	Aluminium	Quantité maximum disponible pour ce magasin + -
Ref. LEEVEL80508RL Code A0007187 80 MM DEEP ACCESS STEP LADDERS 8 STEPS	8	Non	Aluminium	Quantité maximum disponible pour ce magasin + -
Ref. LEEVEL80509RL Code A0007188 80 MM DEEP ACCESS STEP LADDERS 9 STEPS	9	Non	Aluminium	Quantité maximum disponible pour ce magasin + -
Ref. LEEVEL80510RL Code A0007189 80 MM DEEP ACCESS STEP LADDERS 10 STEPS	10	Non	Aluminium	Quantité maximum disponible pour ce magasin + -
Ref. LEEVEL80511RL Code A0007190 80 MM DEEP ACCESS STEP LADDERS 11 STEPS	11	Non	Aluminium	Quantité maximum disponible pour ce magasin + -
Ref. LEEVEL80512RL Code A0007191 80 MM DEEP ACCESS STEP LADDERS 12 STEPS	12	Oui	Aluminium	Quantité maximum disponible pour ce magasin + -
Ref. LEEVEL80513RL Code A0007192 80 MM DEEP ACCESS STEP LADDERS 13 STEPS	13	Oui	Aluminium	Quantité maximum disponible pour ce magasin + -
Ref. LEEVEL80514RL Code A0007193 80 MM DEEP ACCESS STEP LADDERS 14 STEPS	14	Oui	Aluminium	Quantité maximum disponible pour ce magasin + -
Ref. LEEVEL80515RL Code A0007194 80 MM DEEP ACCESS STEP LADDERS 15 STEPS	15	Oui	Aluminium	Quantité maximum disponible pour ce magasin + -

80 MM DEEP ACCESS STEP LADDERS 5 STEPS
Reference :	LEEVEL80505RL
Number of walking	5
Stabilizer	Non
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

80 MM DEEP ACCESS STEP LADDERS 6 STEPS
Reference :	LEEVEL80506RL
Number of walking	6
Stabilizer	Non
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

80 MM DEEP ACCESS STEP LADDERS 7 STEPS
Reference :	LEEVEL80507RL
Number of walking	7
Stabilizer	Non
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

80 MM DEEP ACCESS STEP LADDERS 8 STEPS
Reference :	LEEVEL80508RL
Number of walking	8
Stabilizer	Non
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

80 MM DEEP ACCESS STEP LADDERS 9 STEPS
Reference :	LEEVEL80509RL
Number of walking	9
Stabilizer	Non
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

80 MM DEEP ACCESS STEP LADDERS 10 STEPS
Reference :	LEEVEL80510RL
Number of walking	10
Stabilizer	Non
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

80 MM DEEP ACCESS STEP LADDERS 11 STEPS
Reference :	LEEVEL80511RL
Number of walking	11
Stabilizer	Non
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

80 MM DEEP ACCESS STEP LADDERS 12 STEPS
Reference :	LEEVEL80512RL
Number of walking	12
Stabilizer	Oui
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

80 MM DEEP ACCESS STEP LADDERS 13 STEPS
Reference :	LEEVEL80513RL
Number of walking	13
Stabilizer	Oui
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

80 MM DEEP ACCESS STEP LADDERS 14 STEPS
Reference :	LEEVEL80514RL
Number of walking	14
Stabilizer	Oui
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

80 MM DEEP ACCESS STEP LADDERS 15 STEPS
Reference :	LEEVEL80515RL
Number of walking	15
Stabilizer	Oui
Matiére	Aluminium
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

80 mm (3.15 in) deep chequered aluminum steps

250 mm (9.84 in) spacing between steps

Handrails on both sides

70° climbing angle

Step width: 450 mm (17.7 in)

Overall ladder width: 500 mm (19.7 in)

Overall width with 2 handrails: 590 mm (23.2 in)

Telescopic stabilizer from 12 steps upwards

Maximum load per step: 150 kg (331 lb)

Technical description

80 mm deep chequered aluminum steps

250 mm spacing between steps

Handrails on both sides

70° climbing angle

Step width: 450 mm

Overall ladder width: 500 mm

Overall width with 2 handrails: 590 mm

Telescopic stabilizer from 12 steps upwards

Maximum load per step: 150 kg
