CABLE FLEXIBLE LADDER
CABLE FLEXIBLE LADDER

CABLE FLEXIBLE LADDER

Warranty 1 year

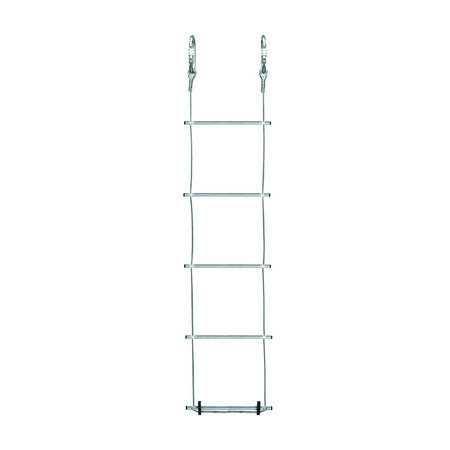

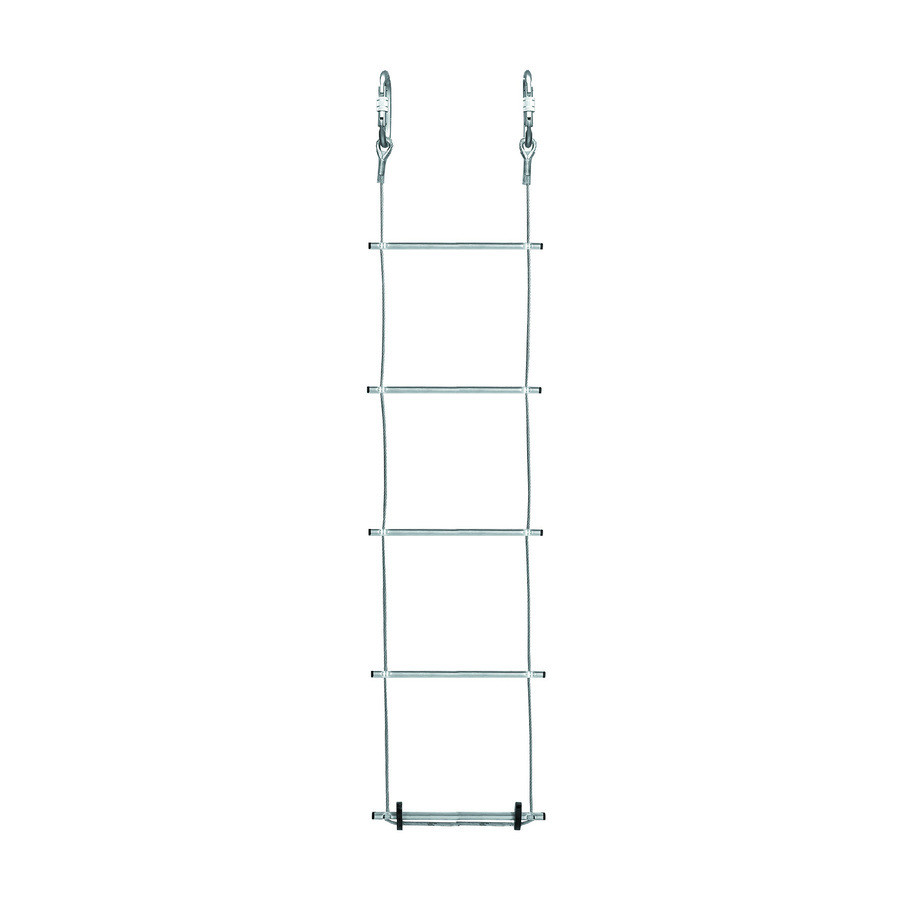

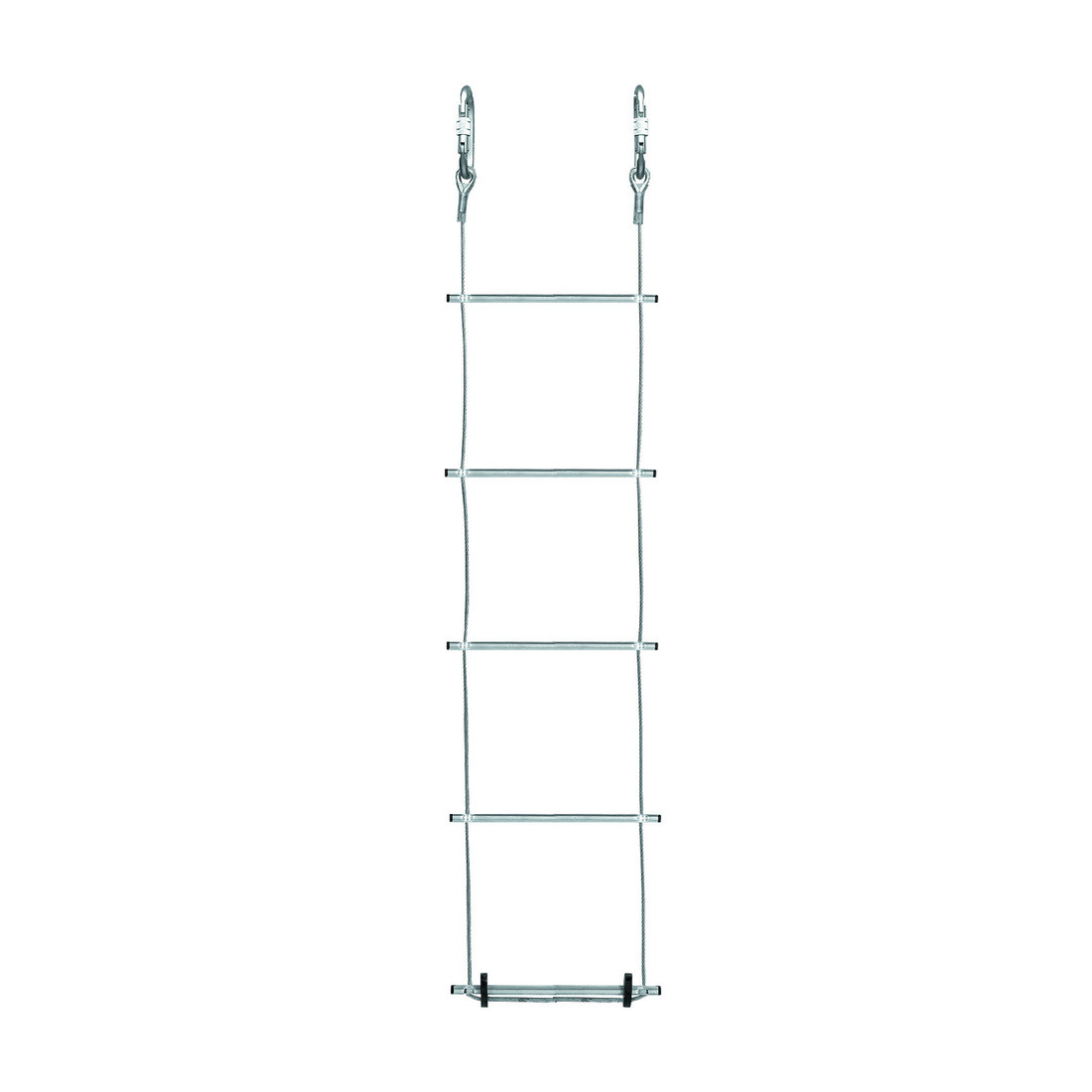

Flexible cable ladder for access in natural or confined environments.

Select your reference
+
-

Technical characteristics

Reference Length (') Width ('') Weight (lb) Quantity Quote
Ref. EEDL012005
Code A0000342
CABLE FLEXIBLE LADDER length 5 (16’5’’)
16 ' 12 '' 6,61 lb
+
-
Ref. EEDL012010
Code A0000341
CABLE FLEXIBLE LADDER length 10 (32’10’’)
33 ' 12 '' 13,22 lb
+
-
CABLE FLEXIBLE LADDER length 5 (16’5’’)
Reference : EEDL012005
Length (') 16 '
Width ('') 12 ''
Weight (lb) 6,61 lb
Quantity :
+
-
CABLE FLEXIBLE LADDER length 10 (32’10’’)
Reference : EEDL012010
Length (') 33 '
Width ('') 12 ''
Weight (lb) 13,22 lb
Quantity :
+
-

Use

Flexible cable ladder for access in natural or confined environments.

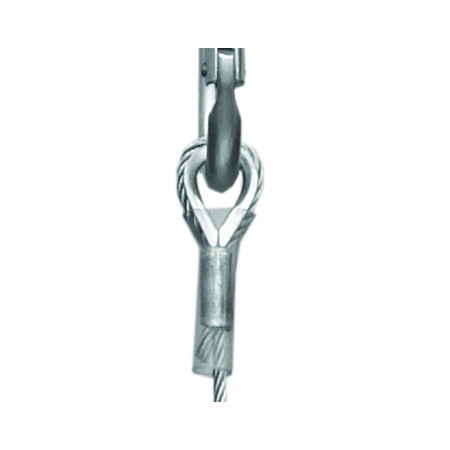

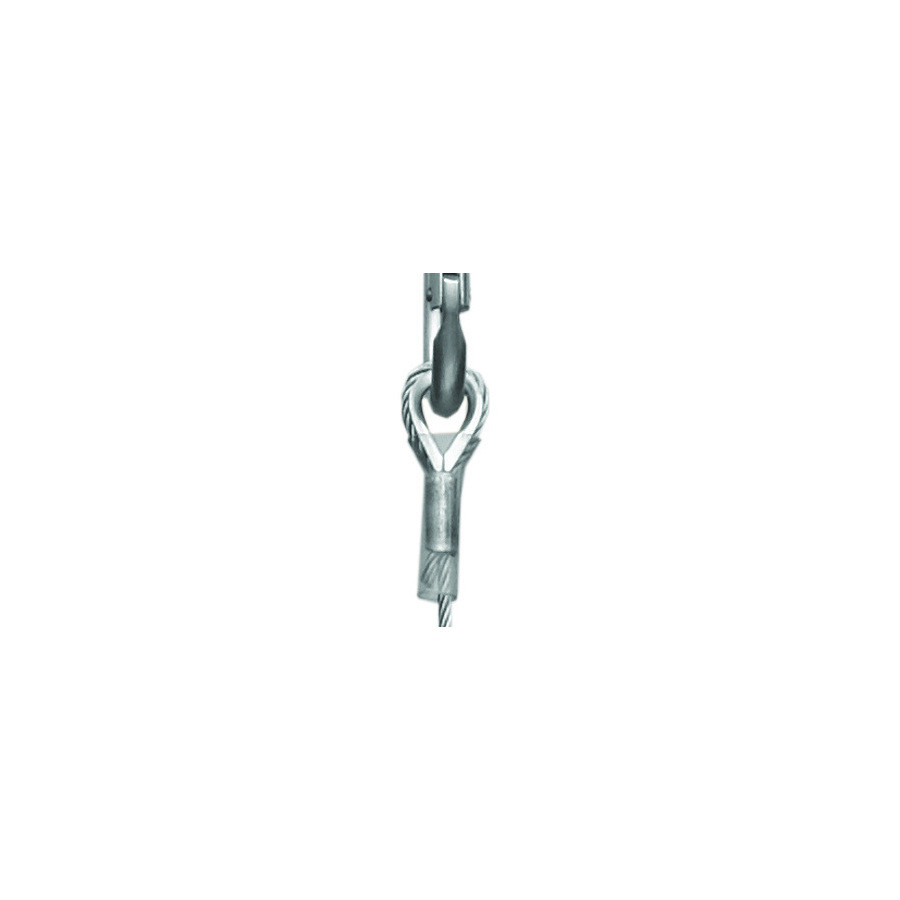

Cable ladders can be connected together using carabiners.

Supplied with one carabiner.

Available in a 180 mm (7.1 in) width.

Technical description

4 mm (0.16 in) diameter galvanized steel cable

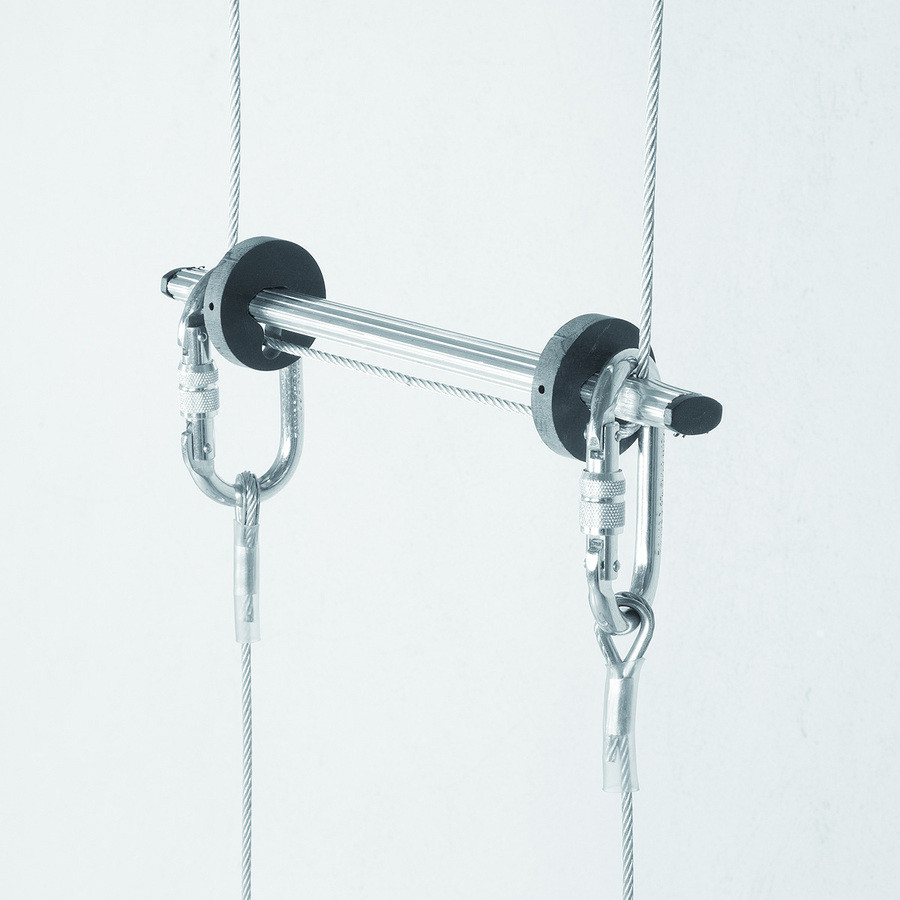

25 x 15 mm (0.98 x 0.59 in) aluminum rung


Distance between rungs: 310 mm (12.2 in)


Weight: 610 g/m (0.41 lb/ft)


Load capacity: 200 kg (441 lb)
