Technical characteristics

Reference	Quantity	Quote
Ref. A0012422 Code A0012422 Adjustable mounting bracket	Quantité maximum disponible pour ce magasin + -

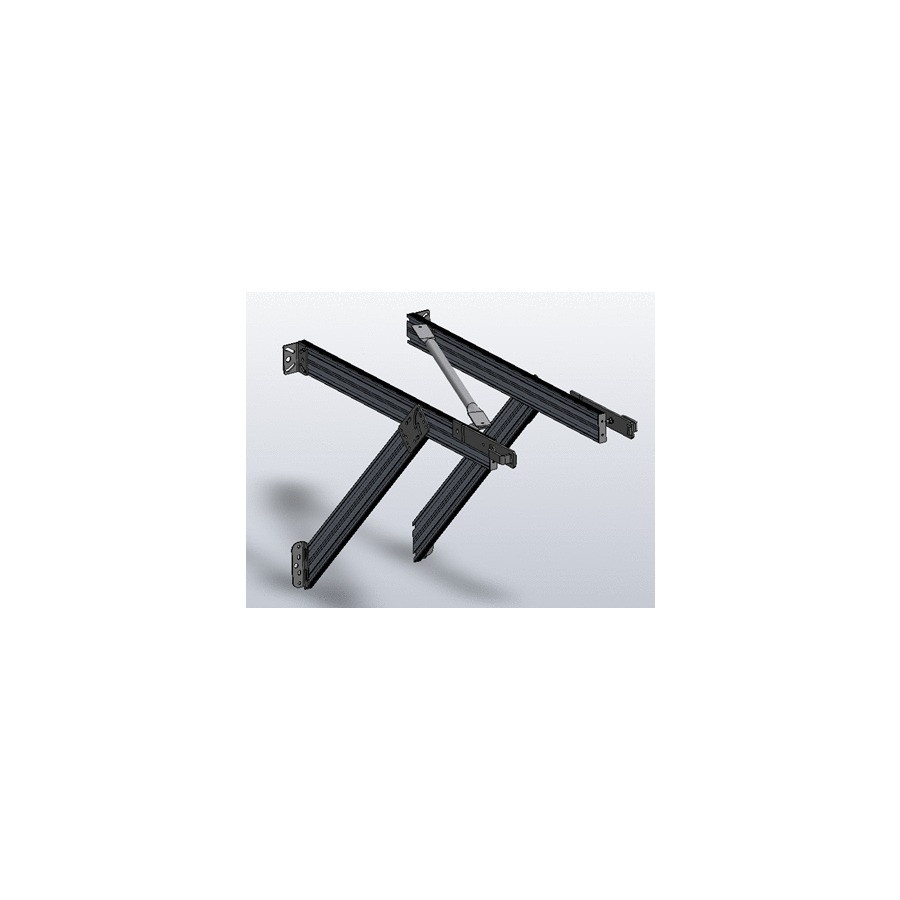

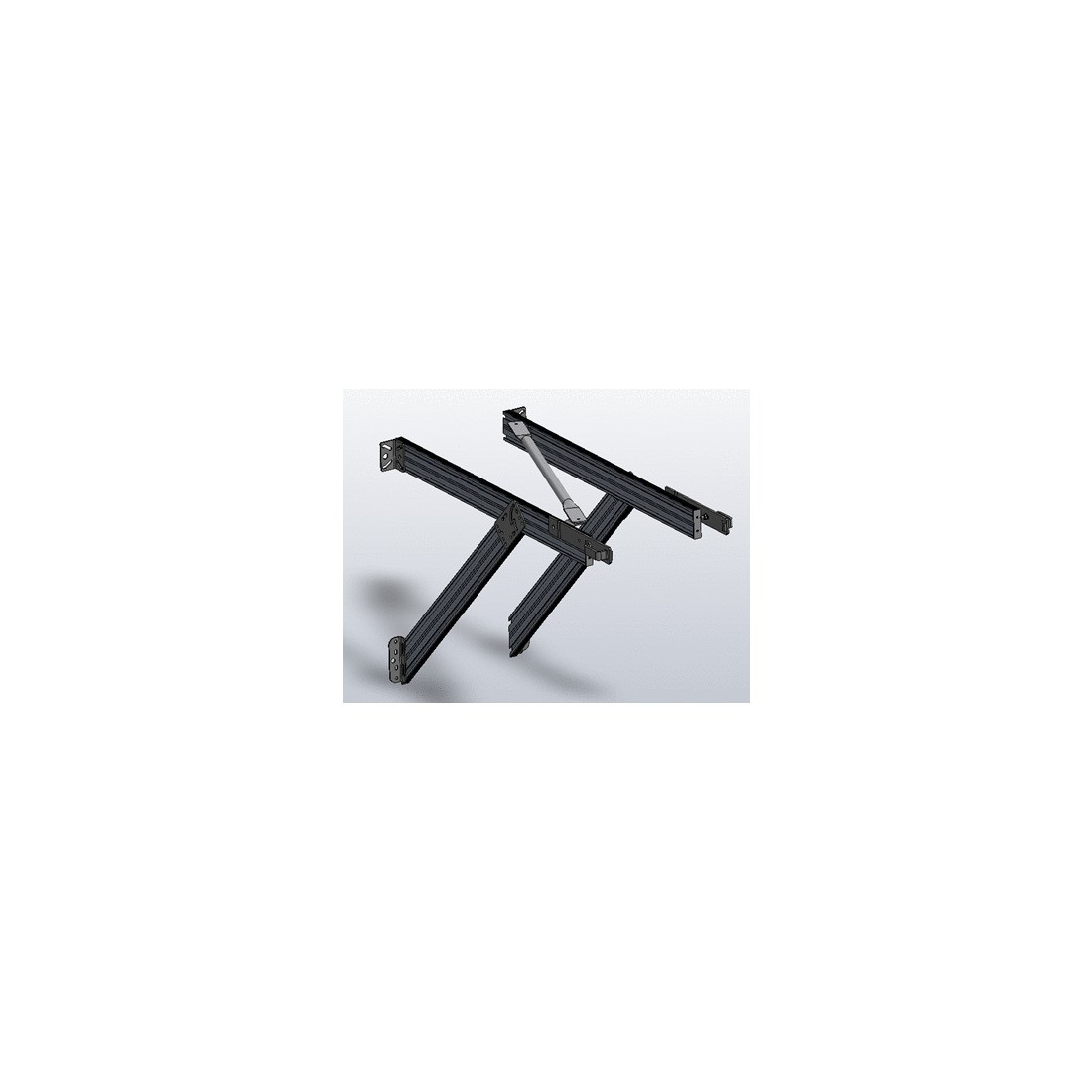

Adjustable mounting bracket
Reference :	A0012422
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

Aluminium wall support bracket for the crinoline ladder.

4 setting fields available.

Fastened in solid brackets and fitted on the cladding.

Upper horizontal fixing center distance: 459 mm (18.1 in)

Lower horizontal fixing center distance: 445 mm (17.5 in)

Maximum offset: 1500 mm (59.1 in)

Minimum offset: 900 mm (35.4 in)

Variable vertical drilling center distance:

590 mm (23.2 in) for an offset from 900 to 1050 mm (35.4 to 41.3 in)

691 mm (27.2 in) for an offset from 1051 to 1200 mm (41.4 to 47.2 in)

790 mm (31.1 in) for an offset from 1201 to 1350 mm (47.3 to 53.1 in)

889 mm (35.0 in) for an offset from 1351 to 1500 mm (53.2 to 59.1 in)

Drilling diameter: 14 mm (0.55 in)
