HOOP KIT FOR CLADDING 11'5'' (3.5 m)

Standard: NF E85-016/EN ISO 14122-4

With its specific "cladding" fixings, this kit provides access and security for your work at a height of 11'5.

Select your reference

Quantity

Advantages and strengths

Conception en aluminium qui ne nécessite aucun entretien, expédition rapide en 72 heures.

Technical characteristics

Reference	Weight (lb)	Quantity	Quote
Ref. KITCRINOW03 Code A0012617 HOOP KIT FOR CLADDING 115.8 (3.5 m)	75,00 lb	Quantité maximum disponible pour ce magasin + -

HOOP KIT FOR CLADDING 115.8 (3.5 m)
Reference :	KITCRINOW03
Weight (lb)	75,00 lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

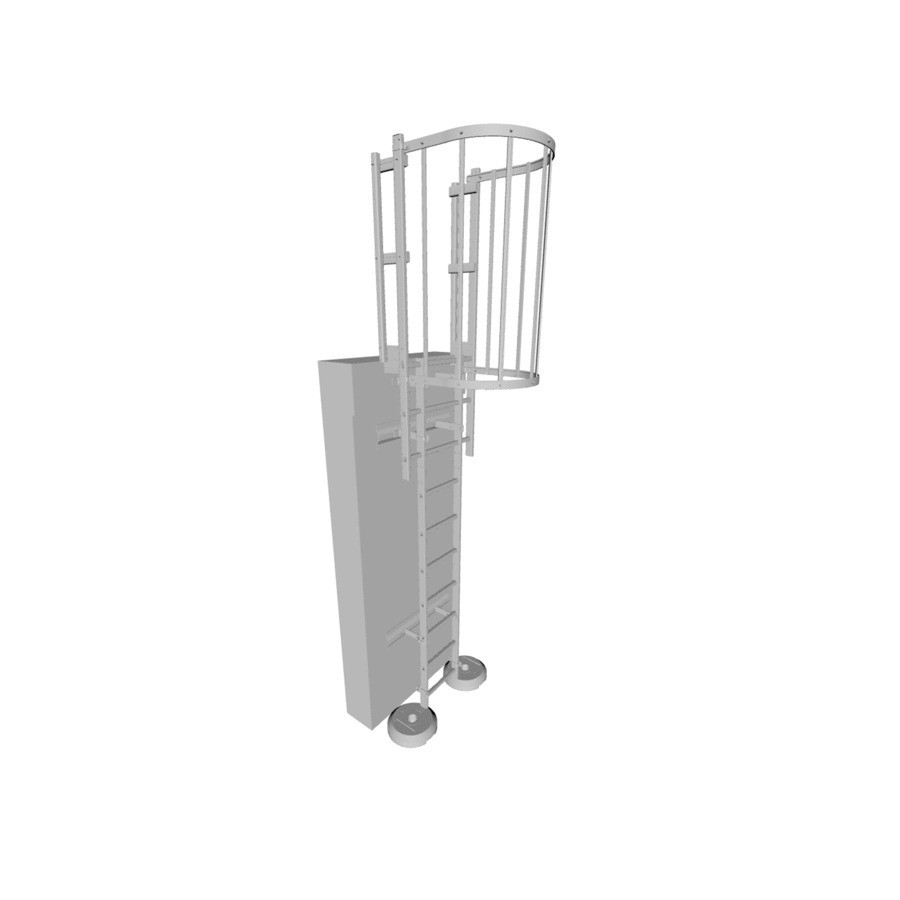

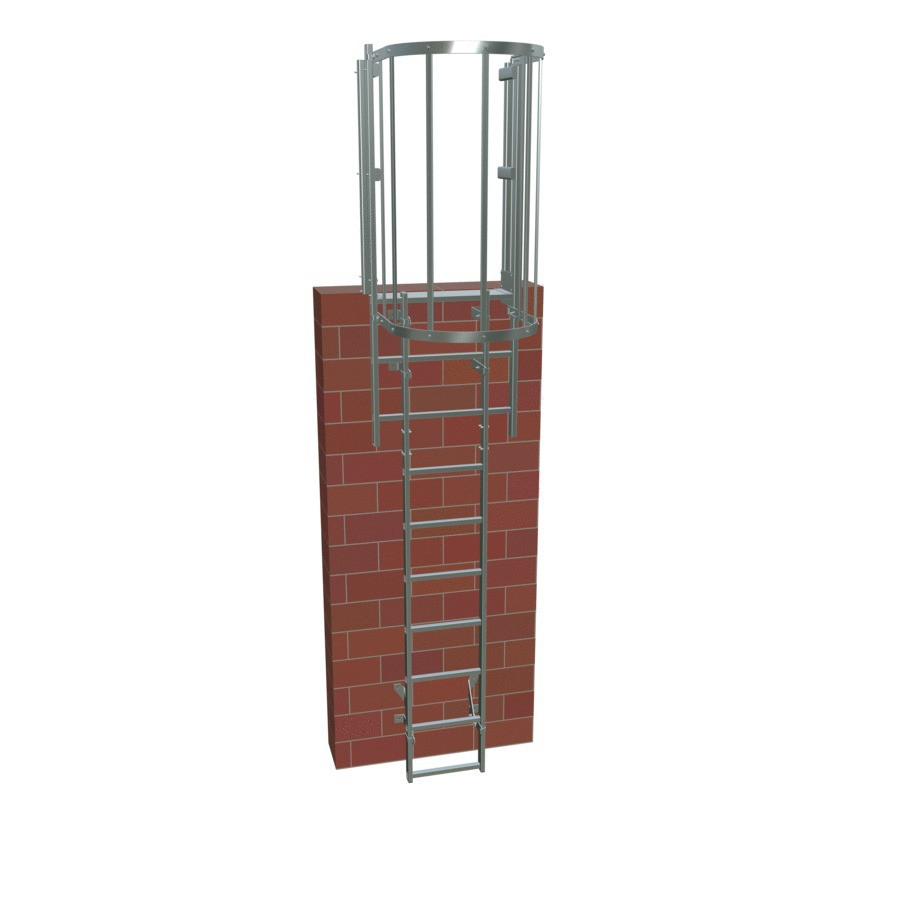

Discover our fully aluminum safety cage ladder, designed to provide access up to a height of 3500 mm (11 ft 6 in). Complete kit for safe access to a height of 3.5 m (11 ft 6 in), featuring dedicated cladding mounting brackets.

Advantages of Our 3500 mm Safety Cage Ladders

No welding required, fast on-site assembly: Thanks to an ingenious weld-free design, our ladder can be assembled quickly and easily directly on site.

Lightweight equipment, fast installation without cranes or heavy machinery: Manufactured from aluminum, the ladder is lightweight and can be installed without cranes or other heavy equipment, simplifying and speeding up the installation process.

Optimal adaptation to the installation site: Our safety cage ladder adapts perfectly to your installation environment, ensuring maximum safety and optimal usability.

Fasteners supplied and pre-mounted on the hoops, reducing on-site preparation time: Hardware is supplied and pre-installed on the hoops, significantly reducing preparation time on site.

Maintenance-free aluminum construction: The aluminum structure provides exceptional durability with no maintenance required, ensuring long-term peace of mind and cost savings.

Technical Specifications - 3500 mm Height - NF E85-016

- Rung dimensions: 30 x 30 mm (1.18 x 1.18 in)

- Internal cage diameter: 700 mm (27.6 in)

- Rung spacing: 280 mm (11.0 in)

- Number of vertical bars: 5

- Overall ladder width: 448 mm (17.6 in)

- Ladder profile: 63 x 25 mm (2.48 x 0.98 in)

Tools Required for Assembly

For quick and easy installation, you will need the following tools:

- Rotary hammer drill

- 10 mm (0.39 in) and 13 mm (0.51 in) drill bits

- Impact wrench

- 13 mm and 17 mm spanners

- Screwdriver/drill

- Manual rivet gun

Documents Supplied with the 3500 mm Safety Cage Ladder - NF E85-016

- Assembly instructions: Download the assembly guide for detailed, illustrated instructions.

- Certificate of conformity: Certifies that our safety cage ladder complies with all applicable safety and quality standards.

Choose our fixed safety cage ladder and benefit from an innovative, secure and easy-to-install solution, ideal for all your working-at-height requirements.

Maintenance-free aluminum construction with fast shipping within 72 hours.

Technical description

Complete kit for a secure access at of 115 height

Specific fixings for cladding. Exit with landing step and gate
